Shantui SD22F

Name: SHANTUI SD22F
Brand: SHANTUI
SKU: 06656305
Availability: InStock

Kaina be PVM

POA

Mėgstamiausi

Pasidalinti

Išsaugoti paiešką

Spausdinti

INFORMACIJA

Prekių grupė

Miško pjovimo technika

Gamintojas / modelis

Shantui SD22F

Registracijos metai

2020

Darbo valandų skaičius

5 h

Papildomos galimybės

Naujas/nenaudotas

Technikos darbo vieta

jining

Šalis

Kinija

Bendras įvertinimas

Mascus ID

06656305

IŠSAMESNĖ INFORMACIJA

Paskutinis patikrinimas

yes

Variklis

Cummins NT855-C280S10

Variklio galia

175 kW (238 AG)

Transmisija

SHANTUI

Transporto svoris

24 700 kg

Transporto matmenys (IxPxA)

5495×3725×3402 m

Gamybos šalis

Kinija

Naudoti priedai

Gervė

Vairas

Kita informacija

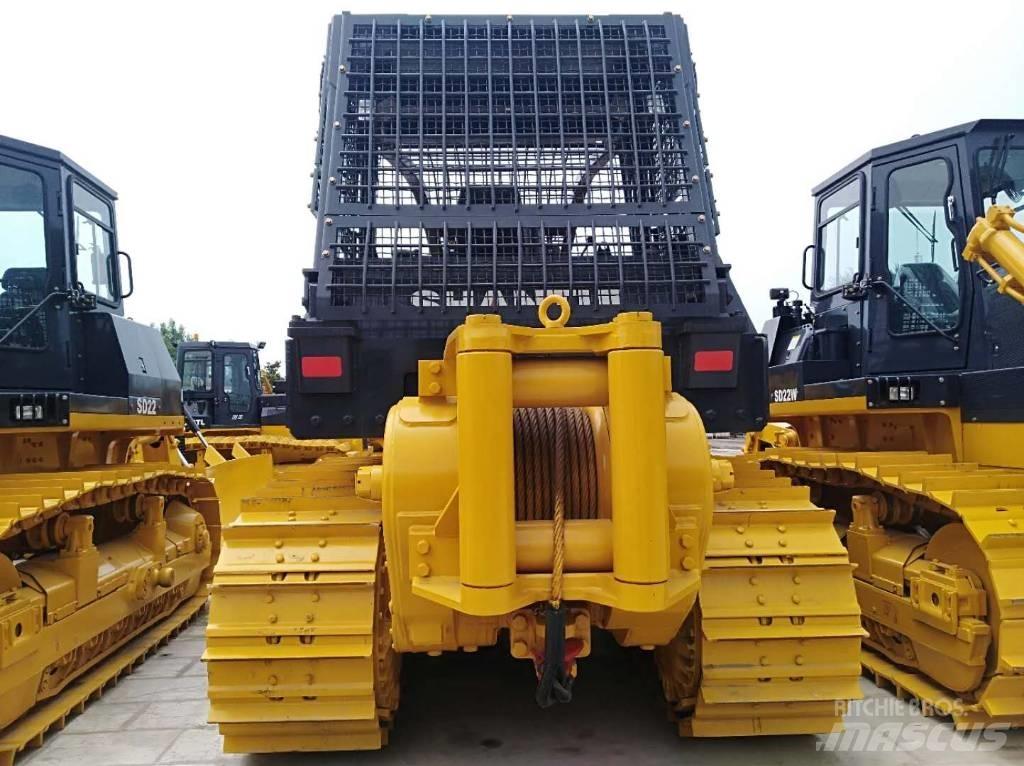

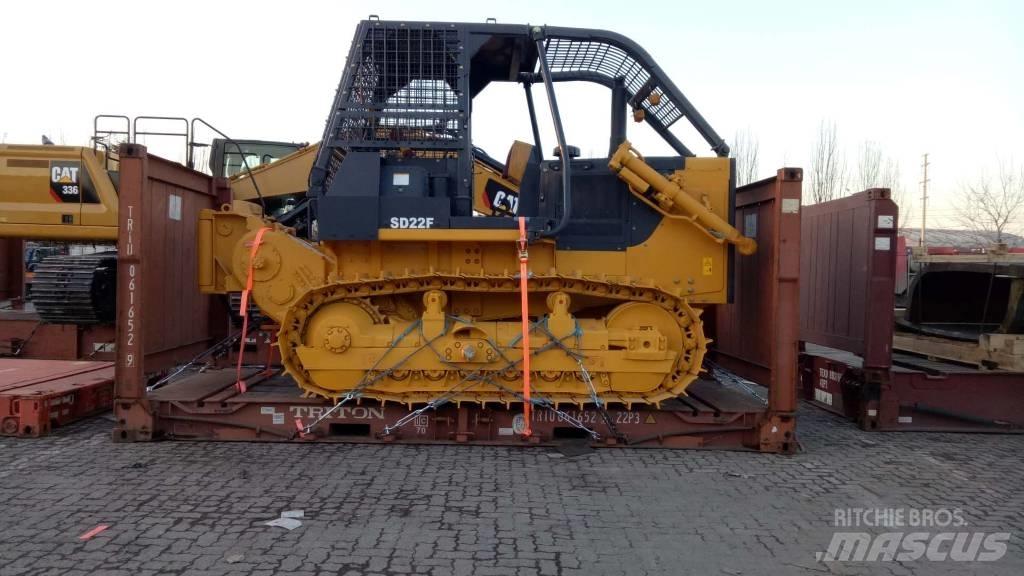

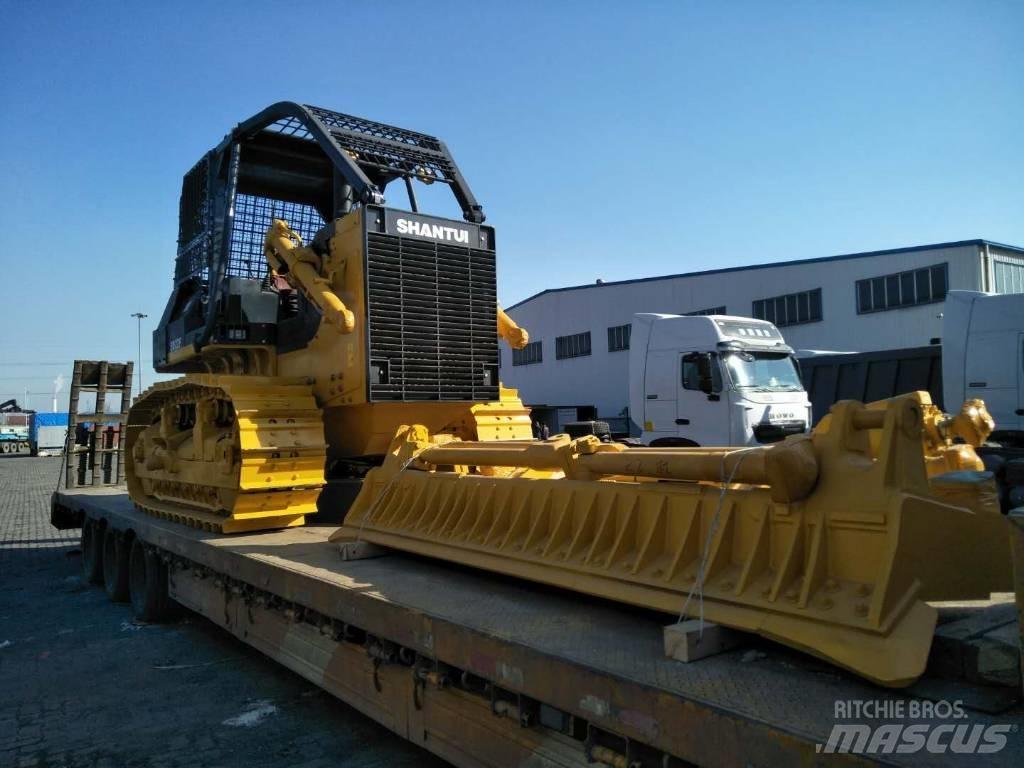

China shantui bulldozer SD22F forest lumbering type with winch Shantui bulldozers are the most cost-effective products comparing with other brands bulldozers around the world. Shantui Large Horsepower Forest Lumbering Type Bulldozer (SD22F) The SD22F forest type bulldozer is specially designed for operations in wooded areas. The SD22F has advanced performance, high reliability, low fuel consumption and convenient maintenance. It's equipped with a ROPS canopy and cab, a wider track (610 mm) and a mechanical winch. The SD22F has excellent maneuverability and self-rescue capabilities. The SD22F easily adapts to logging, stacking, hauling and transporting work in wooded areas. Following is specifications for 220HP series of SD22F bulldozers [Product Parameter] PRODUCT SD22F (FOREST LOGGING) PERFORMANCE PARAMETERS Operatiing Weight (kg) 24700 Rated horsepower (kw/hp) 175/1800 Minimum turning radius (mm) 3300 Ground pressure (kpa) 66 ENGINE Model Chongqing cummins NT855-C280S10 Emission China I Type In-line,direct injection,water cooled,4-cycles,turbocharged No.of cylinders×Bore×stroke (mm×mm) 6×140×152 Piston displacement (L) 14 Horsepower/rpm (kw/rpm) 175/1800 Maximum torque (N.m/r/min) 1030/1250 DIMENSIONS Length(mm) 5495 Width(mm) 3725 Height(mm) 3402 TRAVELING PERFORMANCE Forward/Reverse(km/h) F1:0-3.6 F2:0-6.5 F3:0-11.2 R1:0-4.3 R2:0-7.7 R3:0-13.2 Gradeability(deg) 30 Clearance(mm) 405 TRANSMISSION Torque convertor 3-element, single stage, 1-phase Gear box Planetary gear and powershift transmission, hydraulically actuated, forced lubrication Main drive Spiral bevel gear, single-stage speed reduction, splash lubrication Steering clutch Wet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated,interconnected with steering brake Brake Wet, contracting band,foot operated with hydraulic booster Final driver spur gear,double reduction ,splash lubrication UNDERCARRIAGE Suspension Swing type of sprayed beam,suspended structure of equalizer bar Track gauge (mm) 2000 Shoe width (mm) 560 Track length on ground (mm) 3050 Number of shoes (each side) 41 Pitch (mm) 216 Carrier rollers (each side) 2 Track rollers (each side) 7 WORKING HYDRAULIC SYSTEM Pressure (MPa) 14 Working pump Gear pump Valve Multi-way valve Bore of blade lift cylinder (mm) φ120 Bore of blade tilt cylinder (mm) φ200 TANK CAPACITY Fuel tank capacity (L) 450 Working hydraulic tank capacity (L) 110 WORKING EQUIPMENT Blade width (mm) 3725 Blade height (mm) 1315 Blade capacity (m³) 6.4 Max.Drop below ground of blade 1210 Lift height of blade 540 Type of ripper Single shank/3 shanks Maximum digging depth of ripper (mm) Single 695 Three 666 Maximum lifting height of ripper (mm) Single 515 Three 555 [Product Strengths] 1.This product is equipped with special lumbering ROPS shelter/cab. The wide (610mm) tracks and the mechanical winch can be equipped to achieve good trafficability and self-rescue performance and adapt to lumbering, skidding, and traction transport in the rainforests and forest farms. 2.The standard lumbering blade can powerfully remove all kinds of bramble obstacles along the lumbering path. The winch is used for traction of the lumbers and self-rescue of the bulldozer during the lumbering operations, of which the self-rescue function of the winch guarantees the operator's safety. [Applicable Working Conditions] Forest lumbering and road barrier clearance operations [Current sales conditions] As one of the most popular Shantui products, this bulldozer has been sold all over the world.Rodyti daugiau

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kinija
