Putzmeister M46-5

Kaina be PVM

Images58Videos1

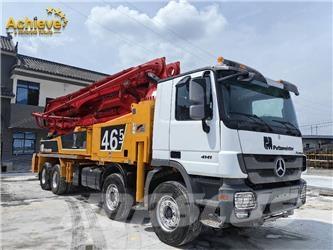

Putzmeister M46-5 Betono siurbliai
Putzmeister M46-5 Betono siurbliai
FavoriteMėgstamiausi
sharePasidalinti
Save searchIšsaugoti paiešką
Spausdinti

INFORMACIJA

Prekių grupė
Betono siurbliai
Gamintojas / modelis
Putzmeister M46-5
Registracijos metai
2013
Darbo valandų skaičius
3 000 h
Papildomos galimybės
Atnaujintos,Perdarytas
Šalis
Kinija
Bendras įvertinimas
1
2
3
4
5
Mascus ID
FF862F64

KAINOS

Pasirinkite valiutą

IŠSAMESNĖ INFORMACIJA

Vidinis prekės Nr.
AICPT016
Rankovių sekcijų skaičius
5
Paskutinis patikrinimas
2024-09-26
Bendras svoris
32 000 kg
Strėlės ilgis
300 cm
Max horizontal reach
4 110 cm
Maksimalus vertikalumas
4 610 cm
Judėjimo tipas
Nejudantis
Siurblio galios tipas
Dyzelinis
Siurblio galia
300 kW
Transporto matmenys (IxPxA)
11850 x 2500 x 4000 mm
Emisijos klasė
Etapas V
Variklio gamintojas
Ergonic3. EU Version
Siurblio tipas
Stūmokliniai
Važiuoklės gamintojas
Mercedes Benz
Padangų gamintojas
Mercedes Benz
Pristatymo sąlygos
FOB, CIF
Sertifikatai
GAA, CHI, Techninė apžiūra
Priedai
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Kita informacija
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducRodyti daugiau

Achieve Innovations

5F Building 4, No.28, (M) Fuyuan Road, Kaifu Dist 410003 Changsha Hunan 湖南 Kinija
