PM 47529

Name: PM 47529
Brand: PM
SKU: 51D45548
Availability: InStock

Kaina be PVM

POA

Mėgstamiausi

Pasidalinti

Išsaugoti paiešką

Spausdinti

INFORMACIJA

Prekių grupė

Kiti kranai

Gamintojas / modelis

PM 47529

Papildomos galimybės

Naujas/nenaudotas

Technikos darbo vieta

Milford, Massachusetts

Šalis

Jungtinės Valstijos

Bendras įvertinimas

Mascus ID

51D45548

IŠSAMESNĖ INFORMACIJA

Kita informacija

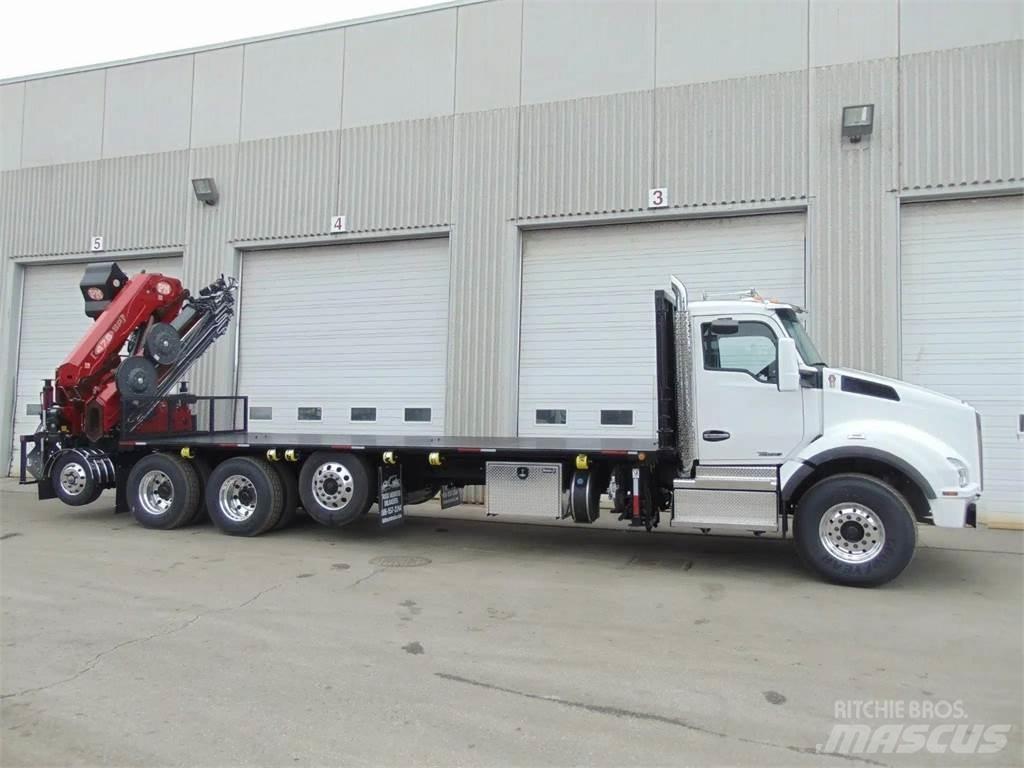

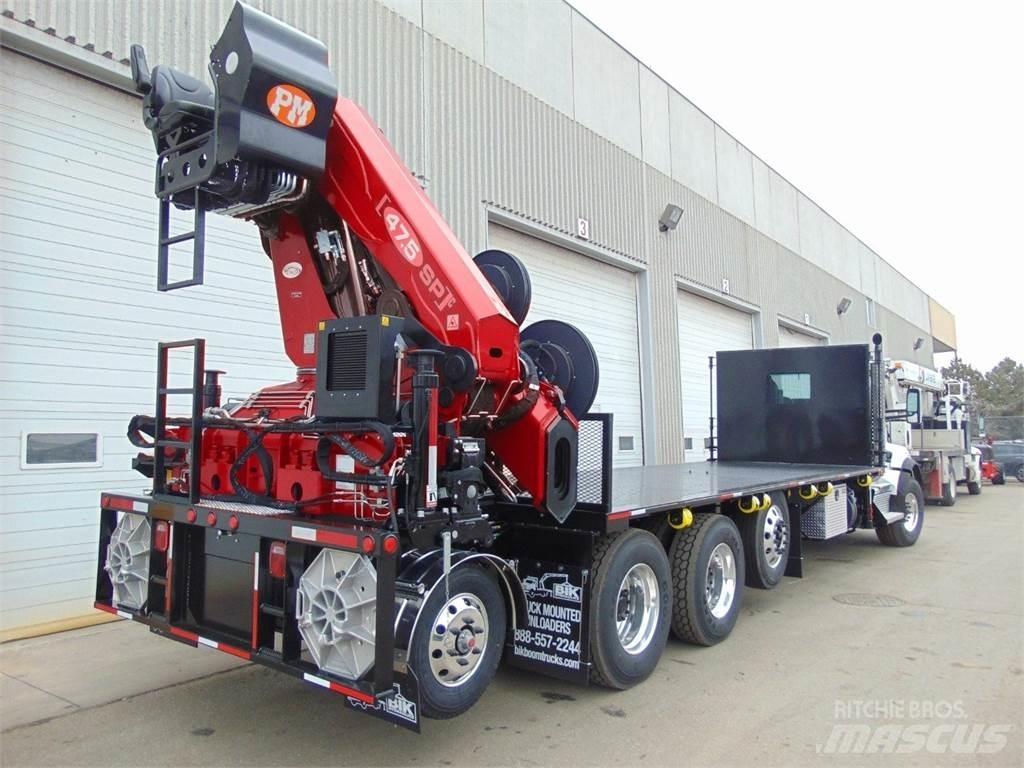

BOOM DETAILS NEW PM 47529S-LC-PX KNUCKLE BOOM : Folding Hydraulic 8 Ext. Knuckle Boom – 74’ Horizontal Reach (86’ Vertical) Horizontal Capacity: 21,000 lb ... 13’ 10,200 lb ... 24’ 5,800 lb ... 37’ 3,950 lb ... 51’ 2,900 lb ... 66’ 2,600 lb ... 74’ PM Power-Link Connections at Main, Knuckle and Jib Cylinders, High Torque Rack and Gear 410-Degree Non-Continuous Rotation Double Pilot Operated on Slewing and Pilot Operating Check Valves on all Cylinders Extra-Wide Main Outriggers at Pedestal, Double Beam – Hyd Out & Down 26’ 3” Span – Front Aux Stabilizers – Hyd Out & Down 16’ Span Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100-Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck Lift a 10’ Cage up Close at 2’ in Front of Boom with Special LC Type Extra Retraction Feature of the Extensions Simplified Hydraulics – Hydraulic Overload LLD Protection and Load Holding Valve – Offers Simplicity, Reliability & Low Maintenance Danfoss Proportional Control Valve at Ground and Top Seat with Ladder Access Scanreco Proportional Radio Remote Control, Includes: 2 Batteries, In-Cab Charger & Back-up Cord – 5 Level Turtle (Micro) Slow Down Mode Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified Warranty: 1 Year Parts & Labor on Entire Boom; 3 Year on Structural Components by PM – 24/7 Crane-Tech Support by BIK DECK DETAILS NEW – 21’ X 102” LOW PROFILE STEEL FLAT DECK : TO FIT 9’ TALL CAGES Steel Headboard w/Side Wrap Winches Steel Checker Plate Floor Winch Bar and Holder Integral 6” Sub-Frame and Extension at Rear as Torque Box for Boom with all Proper Engineered Sheer Plating, X-Braces & Support 2 Deck Access Ladders at Headboard, 2 Ladders at Rear Reflectors and Mud Flaps 6 Sliding Winch and Track Under DecK Deck Painted Gray TRUCK DETAILS NEW – KENWORTH T880 5-AXLE TRUCK : 88,000 LBS GVWR – CAB WHITE Paccar 485 hp – 1,650 ft/lb Torque, Jake Brake 20,000 lb Front Steer Axle with 4425/65T22.5 Tires on Aluminum Rims 13,000 lb Self-Steer Lift Axle Ahead of Tandem 46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims 9,000 lb Tag Axle Under Boom Longer WB (316”) to Accommodate 24’ Deck 54” Spread at TA, Double Frame Loaded with Options Including: A/C, Tilt/Telescopic Steering, Power Window & Locks, AM/FM/MP-3 w/Bluetooth, Air Driver Seat and Standard Passenger Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock ups, Trailer Air Tow Package, Chromed Front & Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc Additional Options Available: 19’ Long Removable Center Divider for Steel Flat Deck Proposed Above 24’ Aluminum Flat Deck with Alum Headboard and Removable Center Divider (Instead of Steel) 1” Drawplate Installed at Rear of Truck (for Possible Pintle Hook) Pair of Aluminum Stabilizers (2 Pcs) with Holders Standard 18-Spd Transmission (Instead of Automated 18-Spd) Rodyti daugiau

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts Jungtinės Valstijos
