Buvusių savininkų skaičius
0
Max. kėlimo galia
2 000 kg
Kėbulo tipas
Pastovus rėmas
Kabinos tipas
Uždara kabina
Emisijos klasė
IIIA etapas / IV tarpinė pakopa
Variklio galia
63 kW (85,7 AG)
Variklio gamintojas
Kubota
Maksimalus greitis
30 km/h
Informacija apie būklę/Garantija
perfect
Likęs priekinių padangų protektorius
100
Likęs galinių padangų protektorius
0
Gamybos šalis
Jungtinės Valstijos
Pristatymo sąlygos
CIF, EXW
Naudoti priedai
Papildoma hidraulikos sistema
Prikabinamo laikiklio kampinis judesys
Lėtai važiuojančio automobilio ženklas
Kita informacija
Basic performance
Rated loading capacity (kg):
nine hundred and eighty-nine
Overturning load (kg):
one thousand nine hundred and seventy-eight
Whole machine weight (kg):
three thousand four hundred and ninety-six
Form of lifting mechanism:
Radial lifting
Bucket digging force (N):
nineteen thousand three hundred and thirty-five
Arm lifting force (N):
seventeen thousand seven hundred and seventy-seven
Rated loading capacity (m3):
engine

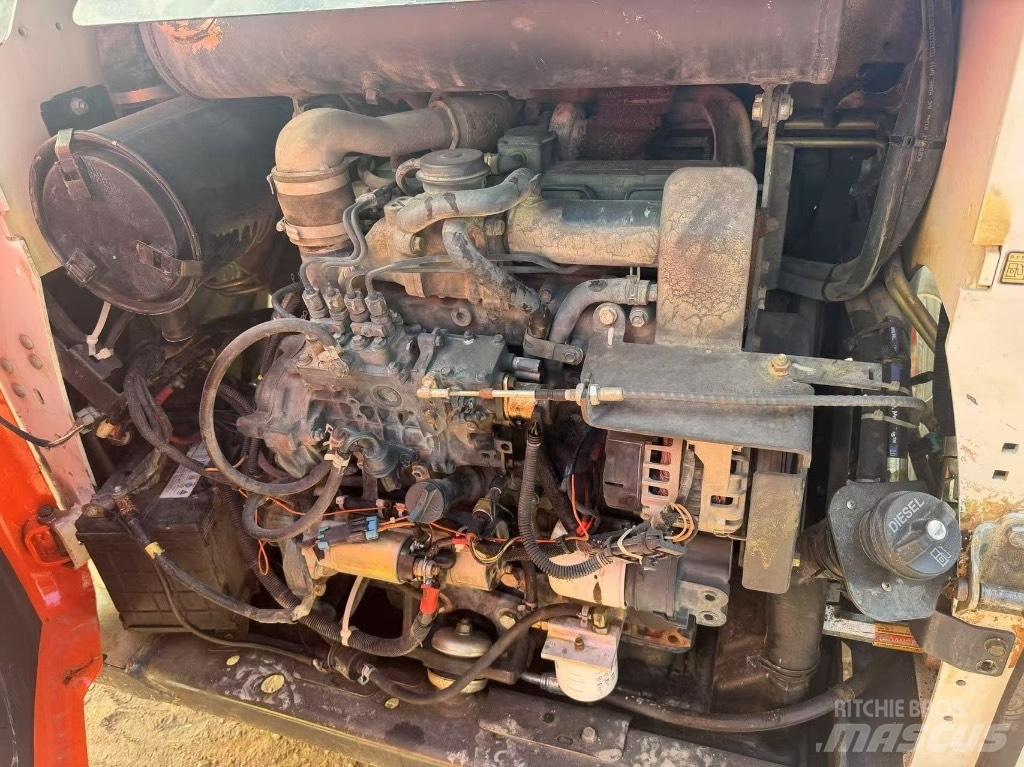

Engine model:
Kubota/V3307-DI-TE3 Kubota
Rated power (kw/rpm):
fifty-five point four
Maximum torque (N.m/rpm):
264.4/1600
Displacement (L):
three point three
Number of cylinders:
four
Emission standards:
Interim Tier IV
Through performance
Drive motor form:
Maximum torque output of drive motor (N.m/cc):
Maximum driving speed (km/h):
11.4/19.8 (optional)
Tire size:
12×16.5
Front turning radius (with bucket) (mm):
two thousand one hundred and nineteen
Front turning radius (without attachments) (mm):
Rear turning radius (mm):
one thousand six hundred and ninety-three
Departure angle (°):
twenty-five point two
hydraulic system
Main pump type:
gear pump
System safety pressure (bar):
two hundred and forty-one
Rated flow rate of the system (L/min):
87.1/115.5 (high traffic configuration, optional)
Lifting time (s):
Unloading time (s):
Placement time (s):
Three items and (s):
Oil capacity
Fuel tank (L):
one hundred and three point three
Hydraulic oil tank (L):
ten point two
Hydraulic system (L):
forty-one point six
Engine coolant (L):
eleven point four
Crankcase (L):
eleven point four
Chain wheel oil tank (L):
Scope of work
Maximum working height (mm):
Maximum unloading height (mm):
two thousand three hundred and sixty-seven
Unloading distance (at maximum height) (mm):
five hundred and forty-four
Maximum height of bucket hinge pin (mm):
three thousand and seventy-three
Unloading angle at maximum unloading height (°):
forty-two point four
The highest bucket angle of the bucket (°):
ninety-six point nine
Bucket retraction angle on the ground (°):
thirty
Whole machine specifications
Total length (without attachments) (mm):
two thousand seven hundred and fifty-four
Total length (with bucket) (mm):
three thousand four hundred and seventy-four
Full width (tire edge) (mm):
one thousand eight hundred and thirty-two
Full width (bucket edge) (mm):
1727/1880
Full height (up to the top of the cab) (mm):
two thousand and sixty-five
Wheelbase (mm):
one thousand one hundred and fifty
Track width (mm):
one thousand five hundred and seven
Minimum ground clearance (mm):
two hundred and sevenRodyti daugiau
