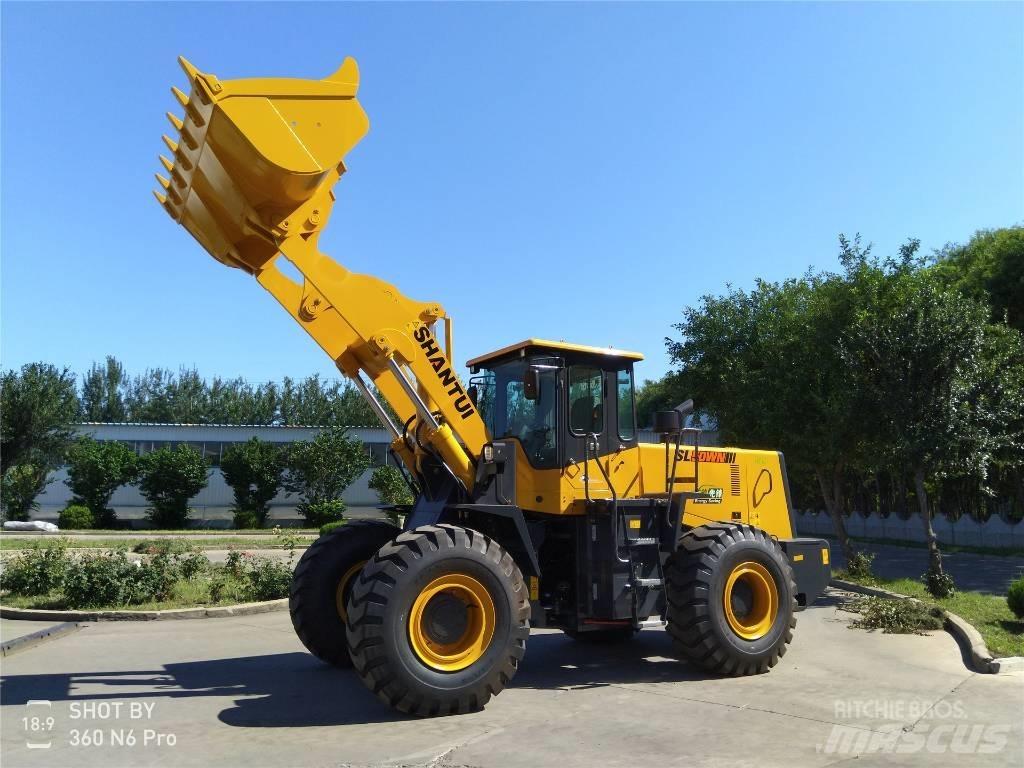

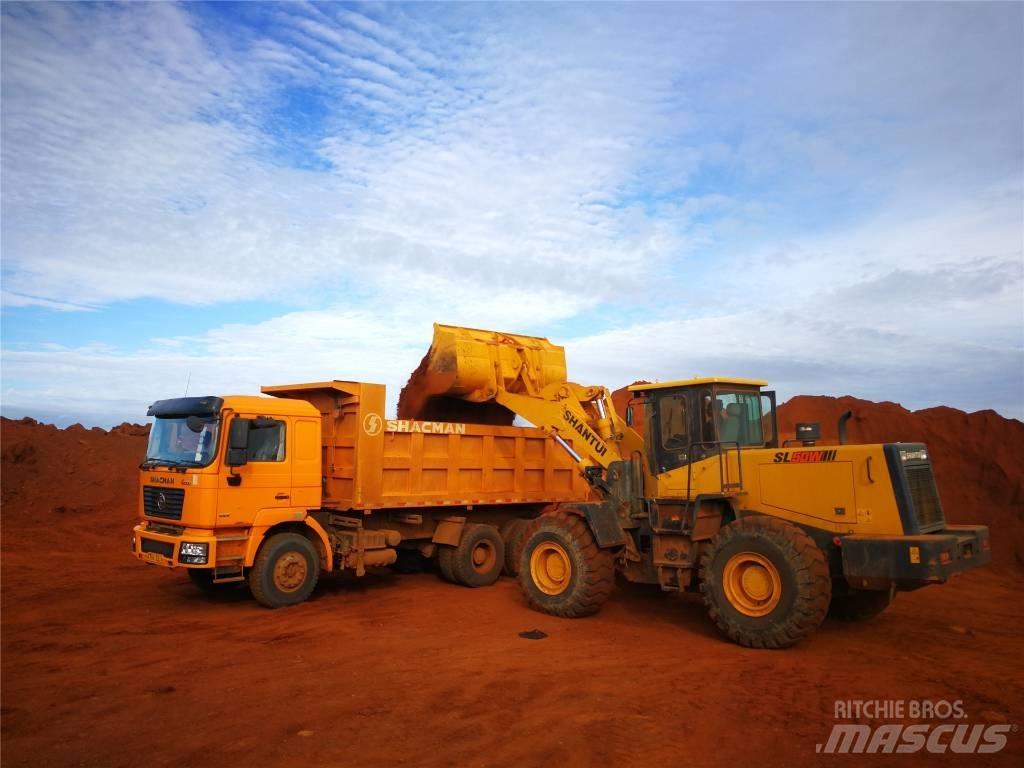

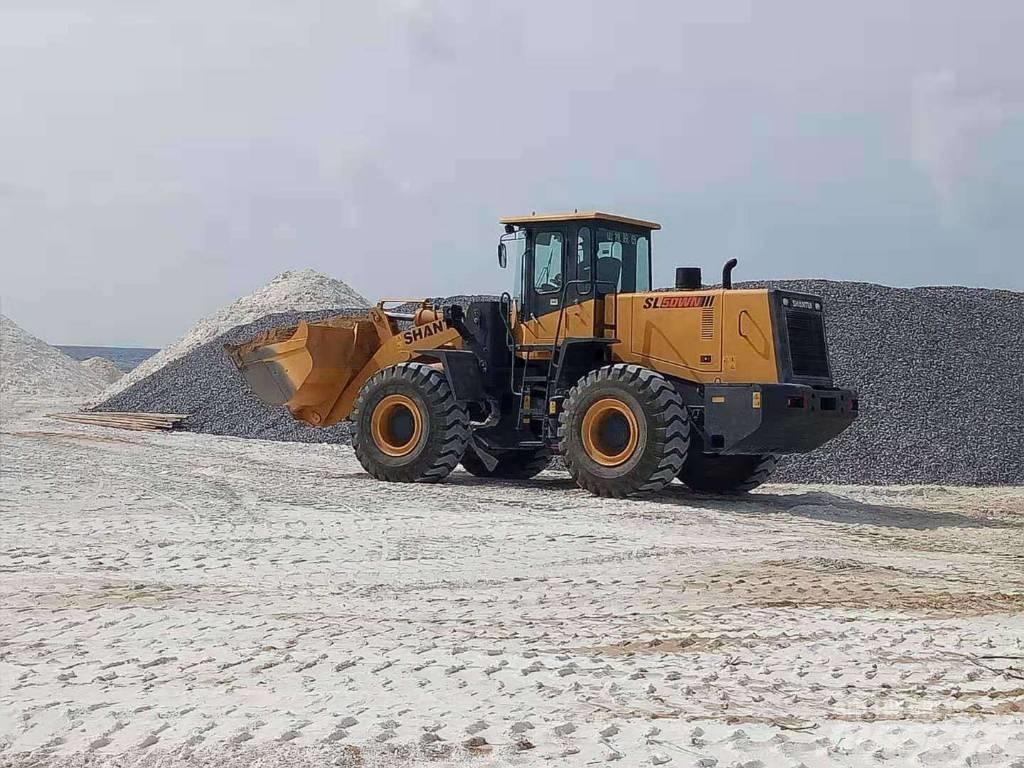

Shantui sl50wn

Name: Shantui sl50wn
Brand: Shantui
SKU: 8AA99556
Availability: InStock

Kaina be PVM

POA

Shantui sl50wn Naudoti ratiniai krautuvai

Mėgstamiausi

Pasidalinti

Išsaugoti paiešką

Spausdinti

INFORMACIJA

Prekių grupė

Naudoti ratiniai krautuvai

Gamintojas / modelis

Shantui sl50wn

Registracijos metai

2020

Darbo valandų skaičius

5 h

Papildomos galimybės

Naujas/nenaudotas

Technikos darbo vieta

jining

Šalis

Kinija

Bendras įvertinimas

Mascus ID

8AA99556

IŠSAMESNĖ INFORMACIJA

Paskutinis patikrinimas

yes

Bendras svoris

17 100 kg

Max. kėlimo galia

5 000 kg

Kėbulo tipas

Prijungtas

Kabinos tipas

Uždara kabina

Emisijos klasė

Etapas IIIA

Variklis

WD10G220GE23

Kaušo talpa

3 m³

Variklio galia

162 kW (220 AG)

Variklio gamintojas

WEICHAI

Maksimalus greitis

35 km/h

Transporto matmenys (IxPxA)

8005×3026×3410 m

Originali spalva

Yellow

Informacija apie būklę/Garantija

1 year or 2000 working hours

Padangų gamintojas

SHANTUI

Gamybos šalis

Kinija

Pristatymo sąlygos

FOB, CFR, CIF, EXW

Naudoti priedai

Oro kondicionierius

Dokumentai

SL50WN-wheel-loader-sheet.pdf

Kita informacija

This series is Shantui's best-selling wheel loader. It offers tremendous stability and has pilot controls designed for reduced work intensity and increased safety and comfort for the operator. It has an advanced Z-type reverse tipping mechanism with large breakout force and high efficiency. It also has the latest in dual pump (combined)technology to improve fuel savings and work efficiency. [Product Parameter] Operating weight(kg) 17100/17180/17900 Related loading(kg) 5000 Bucket capacity (m³) 3.0 Maximum lifting force (KN) 185 Static tipping load (full turn)(kg) 10000 Dumping height (Standard /Long)(mm) 3200/3300/3700 Dumping reach (Standard /Long)(mm) 1230/1230/1270 Engine model WD10G220GE23 SC11CB220G2B1 6CTA8.3-C215 Engine type In-line, water-cooled, 4-cylinder, direct injection, turbocharged Rated power(Kw) 162 162 160 Rated speed(rpm) 2000 2000 2200 Lifting time(s) 5.6 Lifting, dumping and lowering(s) 10.6 Forward (km/h) 1st 0-7 2nd 0-12 3rd 0-25 4th 0-35 Reverse(km/h) 1st 0-7 2nd 0-12 3rd 0-25 - Maximum climbing ability(°) 30 Overall dimensions(Standard Arm)(mm) 8005×3026×3410 Overall dimensions(Extended Arm)(mm) 8135×3026×3410 Overall dimensions(Long Arm)(mm) 8450×3026×3410 [Technical Features] 1.Weichai new generation Blue Engine II energy-saving engine conformed to China-II emission regulation and reduces the malfunction rate by 30% and saves the fuel by >10%. 2. The single-stage two-phase three-element torque converter and the Hangzhou Advance WG180 electronically controlled transmission are adopted for power transmission, featuring good power matching and stable motions. The split structures ease the repairs and maintenances. The transmission includes four forward gears and three reverse gears. This product is especially suitable for long-distance heavy-load operations (such as earthworks and mines) and features more powerful operations and faster motions. 3. It guarantees outstanding site adaptability and flexibility and strong operation stability and can handle common heavy-load operations with ease. 4. By minimizing the torque difference between front and rear drive shafts at turns, it prevents the slip difference between front and rear wheels and ensures the coincided wheel paths between front and rear wheels to improve the service life of tires and trafficability of machine and reduce the energy loss. 5. The optimized 3,200mm loading and unloading height, features extensive operation scope of the machine. The high strength boom in plate thickness of 46mm, which is beyond the industry design, guarantees outstanding loading performance and the carrying capacity against high torsional torque. The bucket is capable of automatic leveling function to achieve high loading and unloading efficiency and low labor strength. 6. The design optimized Z-shaped single rocker tilting mechanism features powerful operations and high efficiency, with the breakout force at 185KN. 7. With the adoption of finite element analysis optimization and the utilization of plate structure and automatic robot welding, the structural parts of the main machine feature high resistance against load and distortion, high firmness and compactness, and good stability. 8. Multiple working devices, including timber grab, bale grab, coal bucket, side dumping bucket, and quartering hammer, are at your choice. 9. The articulated structure of tapered roller bearings is adopted for front and rear frames, featuring reliable operations and easy maintenances. Our Advantage 1, Multiple products: Various wheel loader series. 2, Favorable price: Factory outlet. 3, Short delivery period: Factory outlet. 4, Flexible business terms: Supported by reliable insurance and financial platforms. 5, Perfect after-sales service: Global after-sales service network. Our Market Nowadays, Shantui products have a quite good reputation in Africa, Europe, America, and Asia.Rodyti daugiau

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kinija
