Durma AD-R 40320

Kaina be PVM

Compnay LOGO
Images7
Durma AD-R 40320 Statyba - Kita
Durma AD-R 40320 Statyba - Kita
Durma AD-R 40320 Statyba - Kita
FavoriteMėgstamiausi
sharePasidalinti
Save searchIšsaugoti paiešką
Spausdinti

INFORMACIJA

Prekių grupė
Statyba - Kita
Gamintojas / modelis
Durma AD-R 40320
Registracijos metai
2015
Papildomos galimybės
Naudoti
Technikos darbo vieta
Langley, British Columbia
Šalis
Kanada
Mascus ID
2AFCB026

KAINOS

Pasirinkite valiutą

IŠSAMESNĖ INFORMACIJA

Vidinis prekės Nr.
135381
Kita informacija

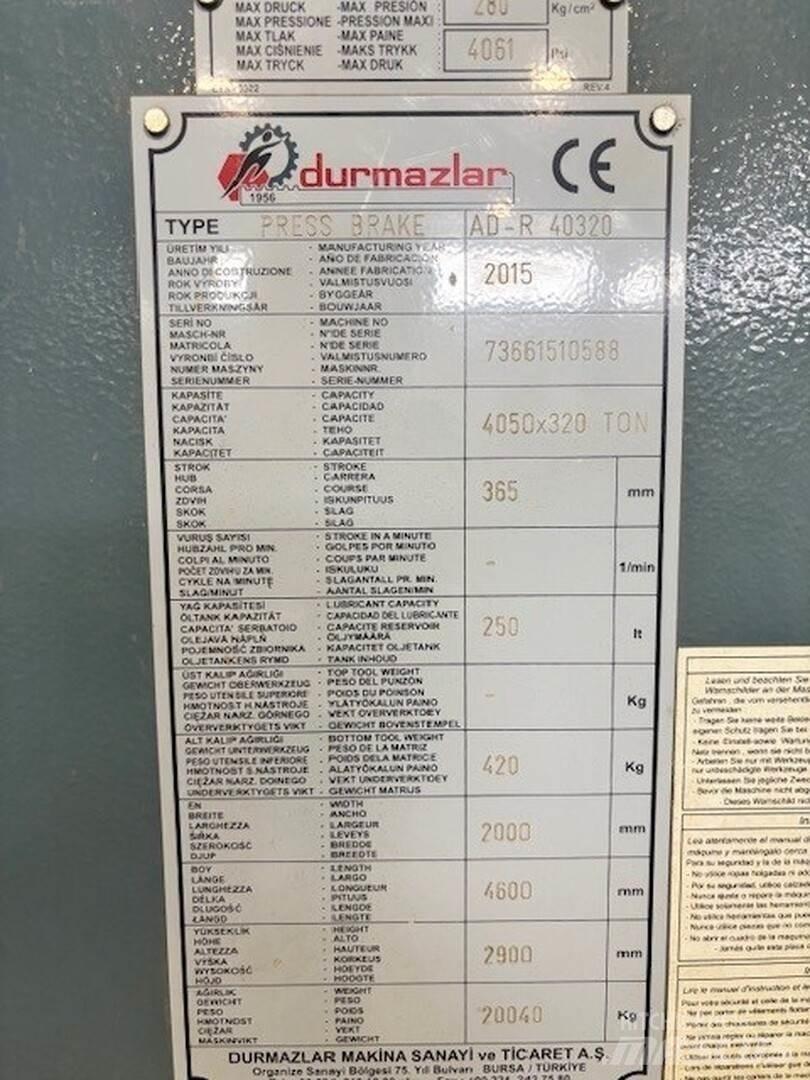

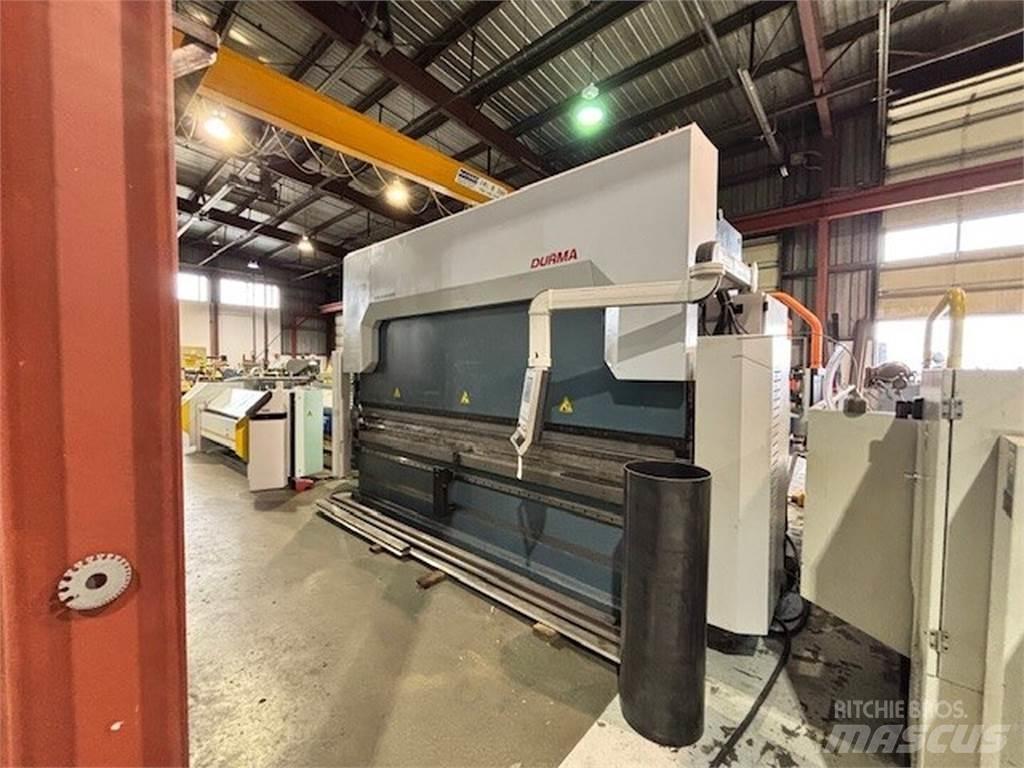

13 ft x 320 Ton Hydraulic Press Brake AD-R 40320 Title: 13 ft x 320 Ton Hydraulic Press Brake AD-R 40320 SKU: 135381 Model: AD-R 40320 Year: 2015 Condition: Used S/N: 73661510588 GeneralBed Length:13 ft Tons:320ton Brake Type:Hydraulic CNC:Yes ElectricalVoltage:440volts Phase:3-phase Made In: UNITED STATES Dimensions: 127.00 (H) x 75.00 (W) x 209.00 (L) inches FEATURES: - Largest Volume Press Brake Producer - Welded steel frame incorporates rigid stress relieved frames - Y1, Y2, X and R axis Power - CNC DT 15 Controller - Excellent bending quality with X and Y motor drivers - Hardened and ground tooling - EASY Front sliding support arms with T-slots and Tilting Stop - Fakas Safety Lite Curtain front & rear - European/North American RAM clamping - 13 ft 4 way die holder 4 way die & upper gooseneck punch COMPLETE WITH: - Foot Pedal Controller - Motorized Backgauge with 1000 mm/39" Travel - 12" Bed Width - Back Gauge - Linear guide ball bearing system - Back Gauge Fingers - Height Adjustable - World Class Hydraulics, Blocks, Valves and Electronics (SIEMENS/BOSCH) - CNC motorized crowning - D Bend Software - Powered R Axis Specifications: Bending power: 320 Ton Metric, 350 US Ton Bending length: 4050 mm / 13.350 ft Distance between centers: 3600 mm / 122" Backgauge travel: 650 mm / 25.6" Backgauge finger blocks: 2 Number of sheet support arms: 2 Oil capacity: 250 L Motor power: 50HP / 220-440V / 3 Ph / 60 Hz- Stroke: 365 mm / 14.4" Daylight: 630 mm / 24.8" Throat depth: 450 mm / 17.7" Bed height: 900 mm / 35.4" Bed width: 300 mm / 12"Rodyti daugiau

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
