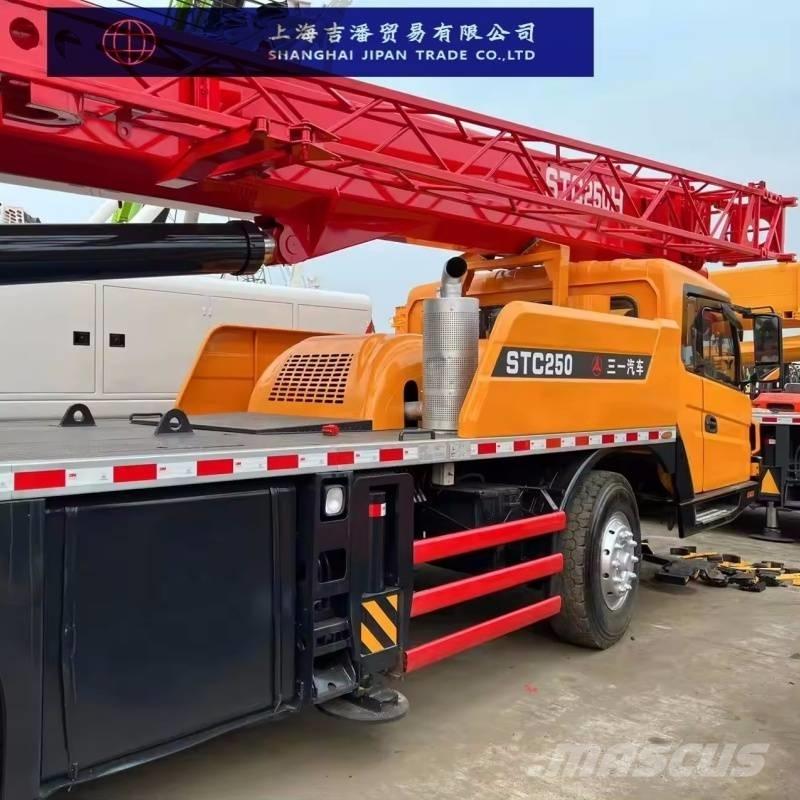

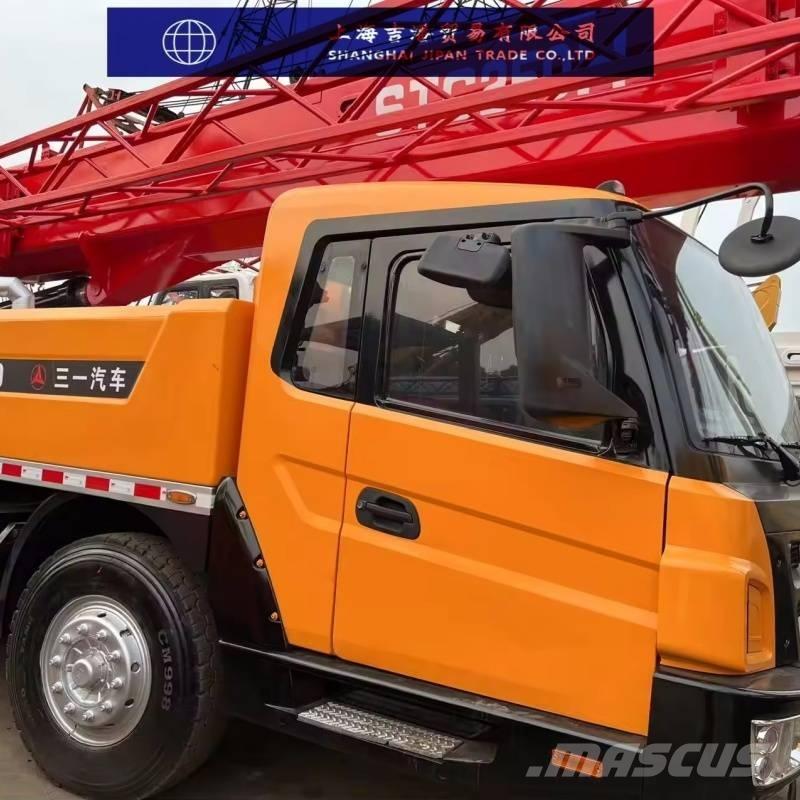

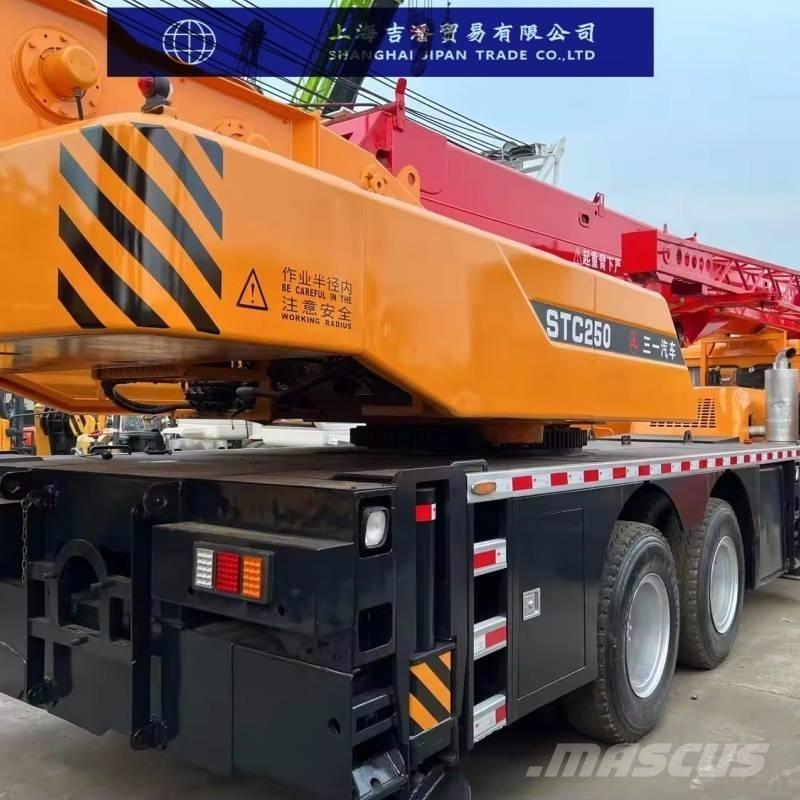

Sany STC 250

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter Value Maximum Rated Total Lifting Capacity 25t Overall Length 13250mm Overall Width 2550mm Overall Height 3620mm Total Mass of the Whole Machine 34200kg Engine Model Weichai WP8.320E51 Engine Power 235kW/2100rpm Engine Maximum Output Torque 1300N·m/(1200-1600)rpm Maximum Driving Speed 85km/h Minimum Turning Radius 11m Maximum Climbing Gradient 43% Fuel Consumption per 100km 31L Basic Boom Length 11.1m Longest Main Boom Length 43.5m Longest Main Boom + Jib Length 51.5m Lifting Height with Basic Boom 11.6m Lifting Height with Longest Main Boom 44m Lifting Height with Longest Main Boom + Jib 52m Maximum Lifting Moment (Basic Boom) 1220kN·m Maximum Lifting Moment (Longest Main Boom) 768kN·m Maximum Lifting Moment (Longest Main Boom + Jib) 435kN·m Outrigger Span (Longitudinal × Transverse) 5.4m × 6.4m Maximum Single-Rope Speed of Main Winch (No Load) 140m/min Maximum Single-Rope Speed of Auxiliary Winch (No Load) 140m/min Full Extension/Retraction Time of Boom 90s/95s Full Lifting/Lowering Time of Boom 35s/45s Slewing Speed 0-2.7r/min
