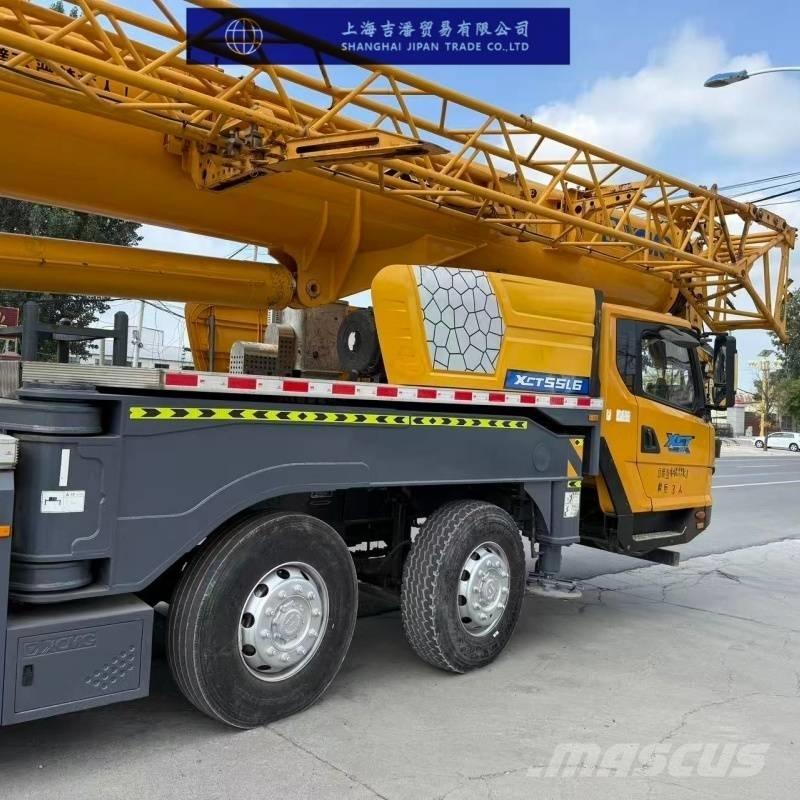

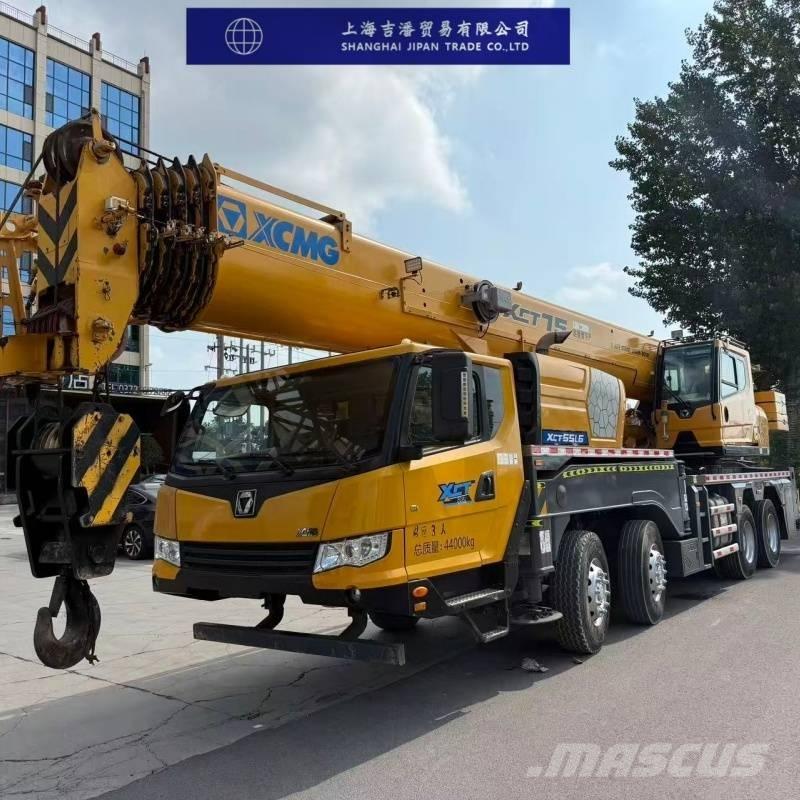

XCMG XTC55L6

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic Parameters: Overall Dimensions: Overall length 13,650mm, overall width 2,540mm, overall height 3,770mm. Total Mass in Travel State: 44,000kg. Axle Load: 9,000 + 9,000 + 13,000×2 kg. Minimum Rated Radius: 3m. Swing Radius of Turret Rear: 3,830mm. Driving Parameters: Maximum Travel Speed: 90km/h. Minimum Stable Travel Speed: 2.5-3km/h. Minimum Turning Diameter: 24m. Maximum Gradient Climbing Capacity: 45%. Minimum Ground Clearance: 303.5mm. Approach Angle: 16° (10° including front protection). Departure Angle: 13°. Braking Distance: ≤10m. Fuel Consumption per 100km: 35L. Power Parameters: Engine Model: MC11.36-40, SC10E340Q4. Rated Engine Power: 268/1,900 kW/(r/min), 251/1,900 kW/(r/min). Rated Engine Torque: 1,800/1,000-1,400 N·m/(r/min), 1,550/1,300 N·m/(r/min). Lifting Performance Parameters: Maximum Rated Total Lifting Capacity: 55 tons. Maximum Lifting Moment of Basic Boom: 2,058 kN·m. Maximum Lifting Height: 10.7m for basic boom, up to 49.1m for the longest main boom, and up to 63.8m for the longest main boom + jib. Maximum Lifting Speed: 130m/min. Standard Counterweight: 6.5 tons, optional 3-ton movable counterweight. Working Speed Parameters: Boom Telescoping Time: 350s for full extension. Boom Luffing Time: 50s for full lifting. Slewing Speed: 2r/min.
