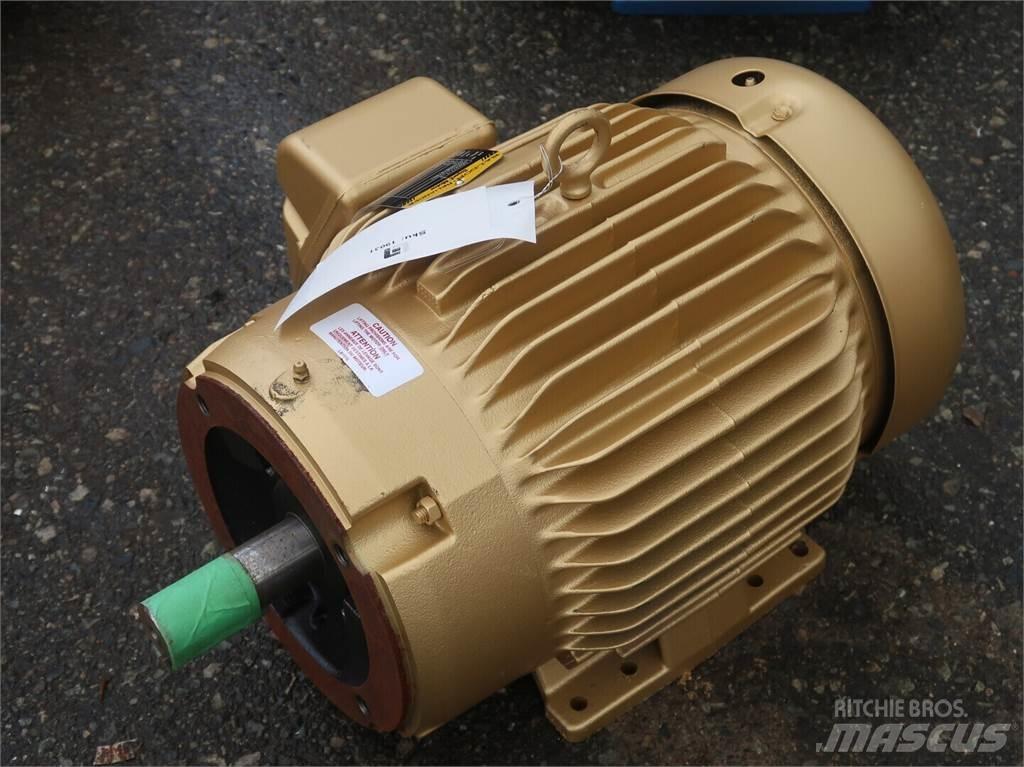

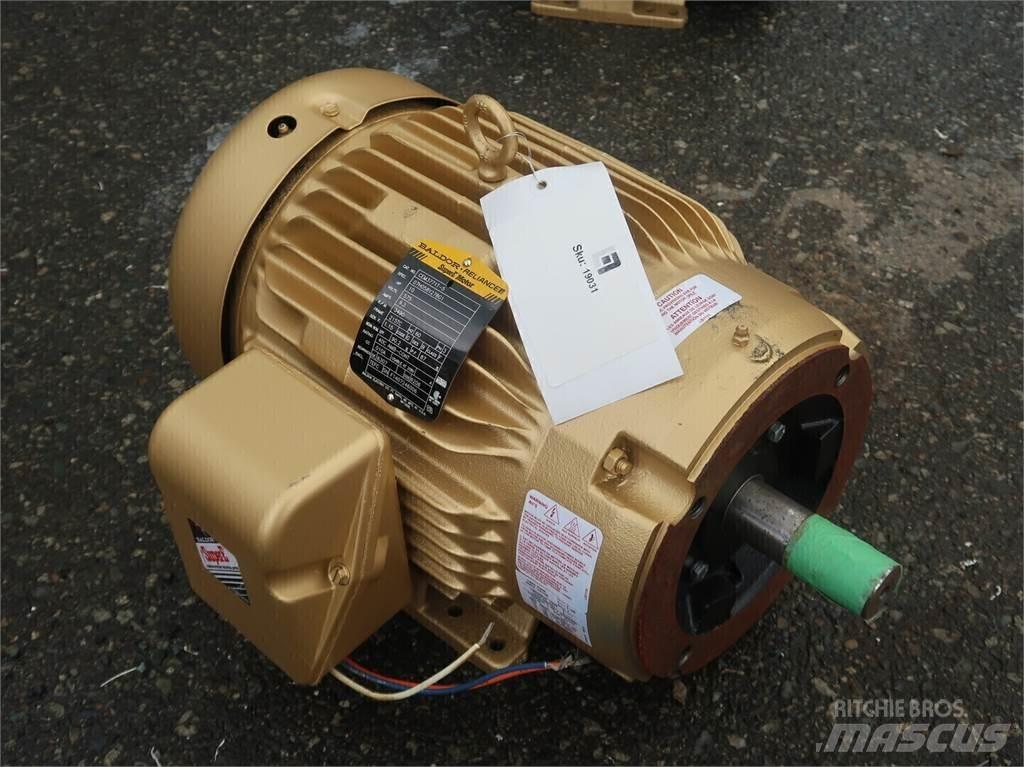

Baldor CEM3771T-5

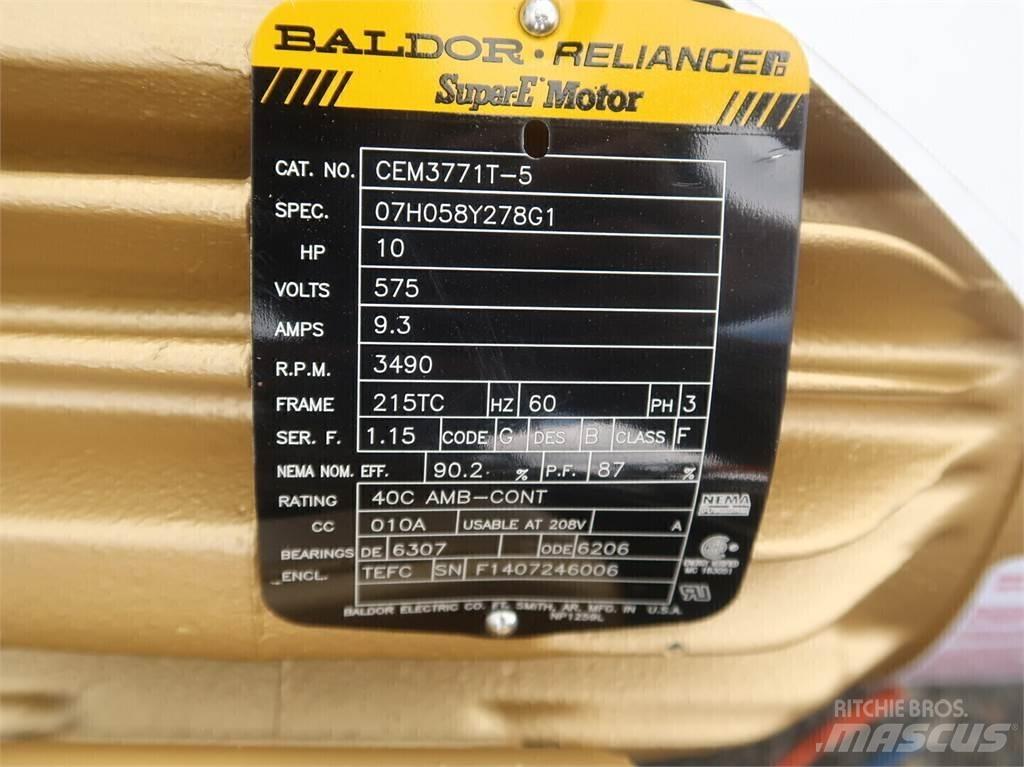

10 hp, 575 Volts, 3600 Rpm, 215TC General Purpose Motor CEM3771T-5 Title: 10 hp, 575 Volts, 3600 Rpm, 215TC General Purpose Motor CEM3771T-5 SKU: 19031 Model: CEM3771T-5 Condition: Surplus New S/N: F1407246006 GeneralCurrent Type:AC Horsepower:10hp Voltage:575volts Phase:3-phase RPM:3600rpm Frame:215TC Additional DataDuty:Continuous Made In: UNITED STATES Dimensions: 18.00 (H) x 19.00 (W) x 29.00 (L) inches Enclosure: TEFC Frame Material: Iron Motor Letter Type: Three Phase Output ... Frequency: 10.000 HP ... 60 HZ Synchronous Speed ... Frequency: 3600 RPM ... 60 HZ XP Class and Group: None Ambient Temperature: 40 °C Base Indicator: Rigid Bearing Grease Type: Polyrex EM (-20F +300F) Blower: None Current ... Voltage: 9.300 A ... 575.0 V Design Code: B Drip Cover: No Drip Cover Efficiency ... 100% Load: 90.2 % Electrically Isolated Bearing: Not Electrically Isolated Feedback Device: NO FEEDBACK High Voltage Full Load Amps: 9.3 a Front Face Code: Standard Front Shaft Indicator: None Heater Indicator: No Heater Insulation Class: F Inverter Code: Inverter Ready KVA Code: G Lifting Lugs: Standard Lifting Lugs Locked Bearing Indicator: Locked Bearing Motor Lead Exit: Ko Box Motor Lead Termination: Flying Leads Motor Lead Quantity/Wire Size: 3 ... 14 AWG Motor Type: 0730M Mounting Arrangement: F1 Number of Poles: 2 Overall Length: 19.20 IN Power Factor: 87 Product Family: General Purpose Pulley End Bearing Type: Ball Pulley Face Code: C-Face Pulley Shaft Indicator: Standard Rodent Screen: None RoHS Status: ROHS COMPLIANT Service Factor: 1.15 Shaft Diameter: 1.375 IN Shaft Extension Location: Pulley End Shaft Ground Indicator: No Shaft Grounding Shaft Rotation: Reversible Shaft Slinger Indicator: No Slinger Speed: 3490 rpm Speed Code: Single Speed Motor Standards: NEMA Starting Method: Direct on line
