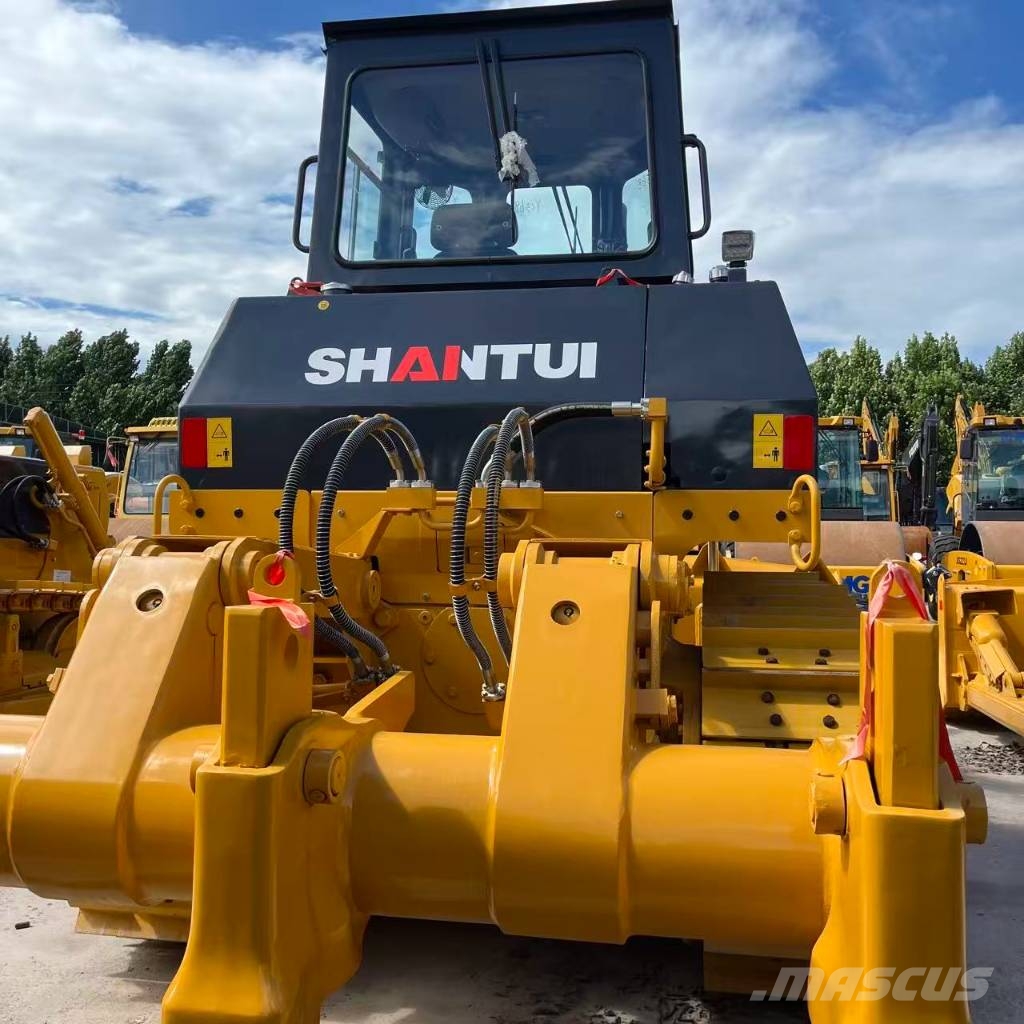

Shantui SD 22

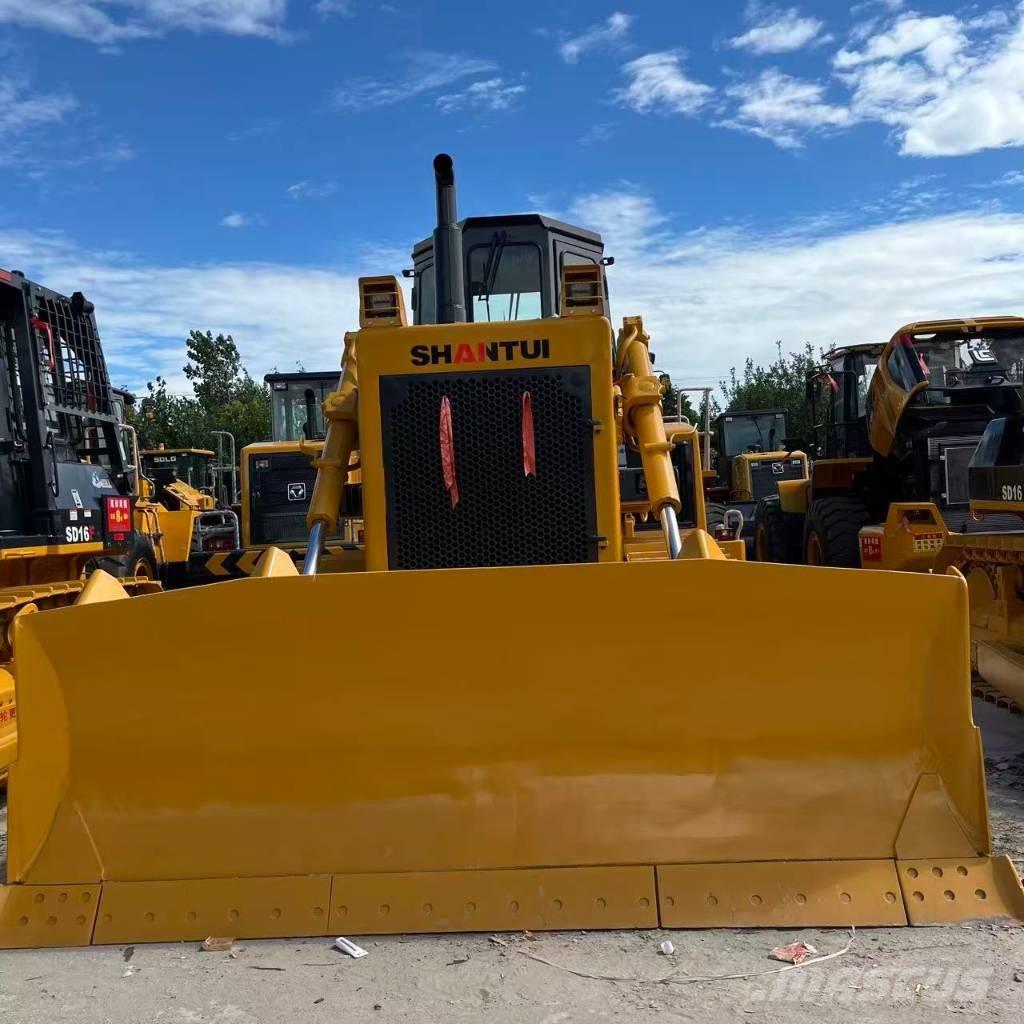

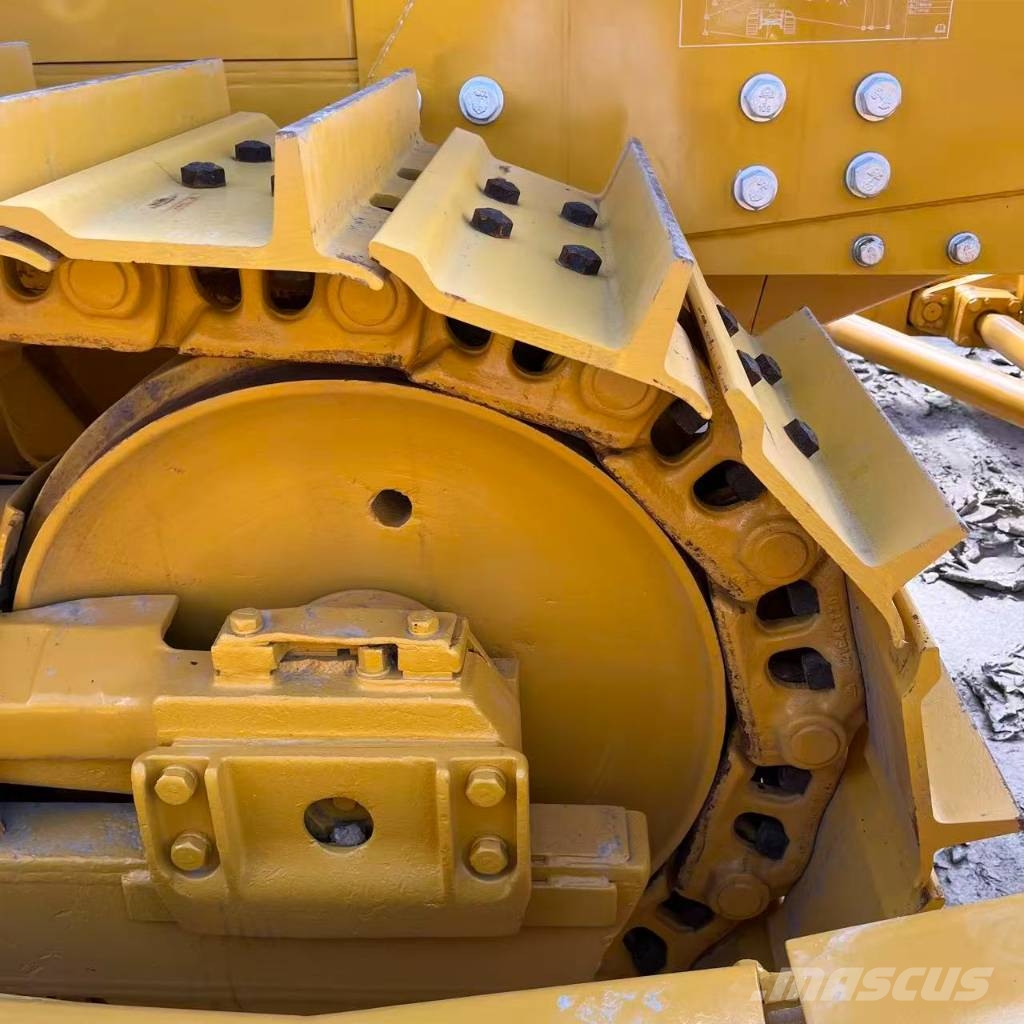

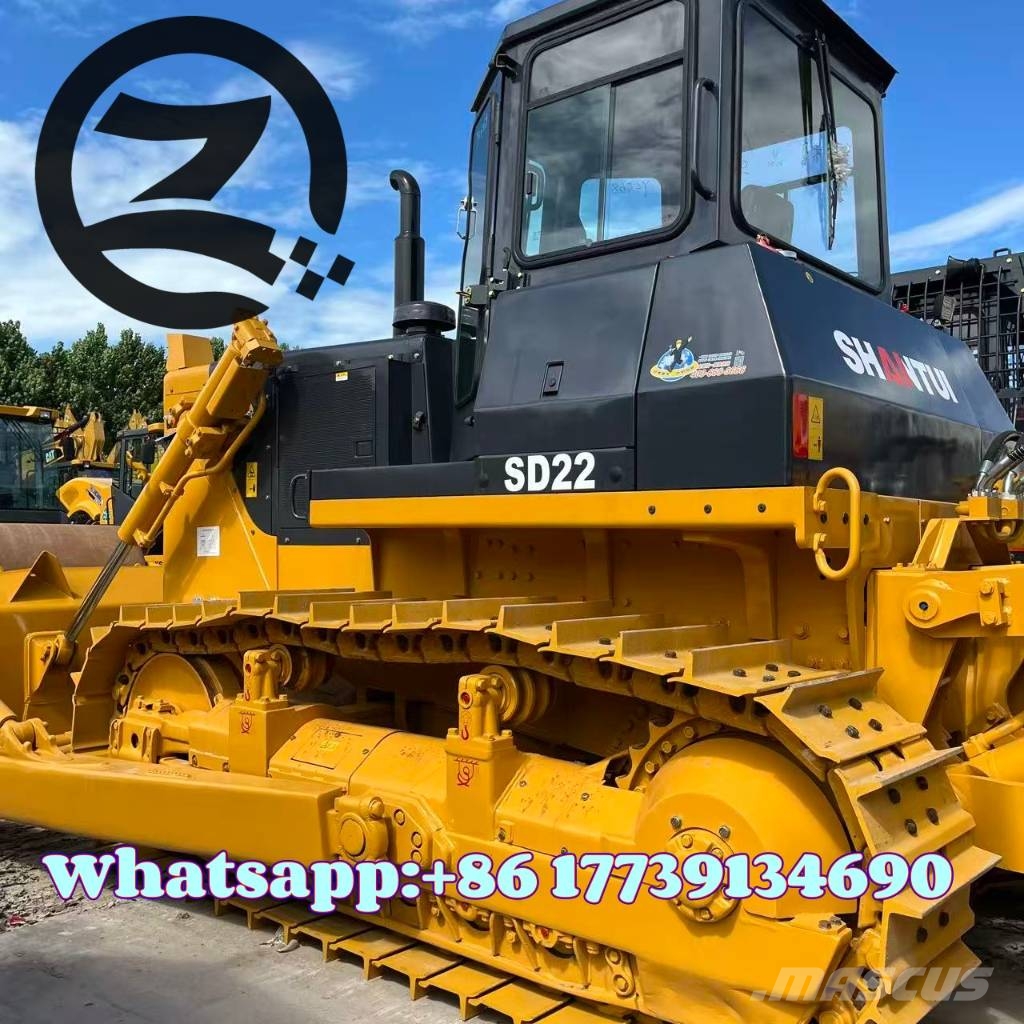

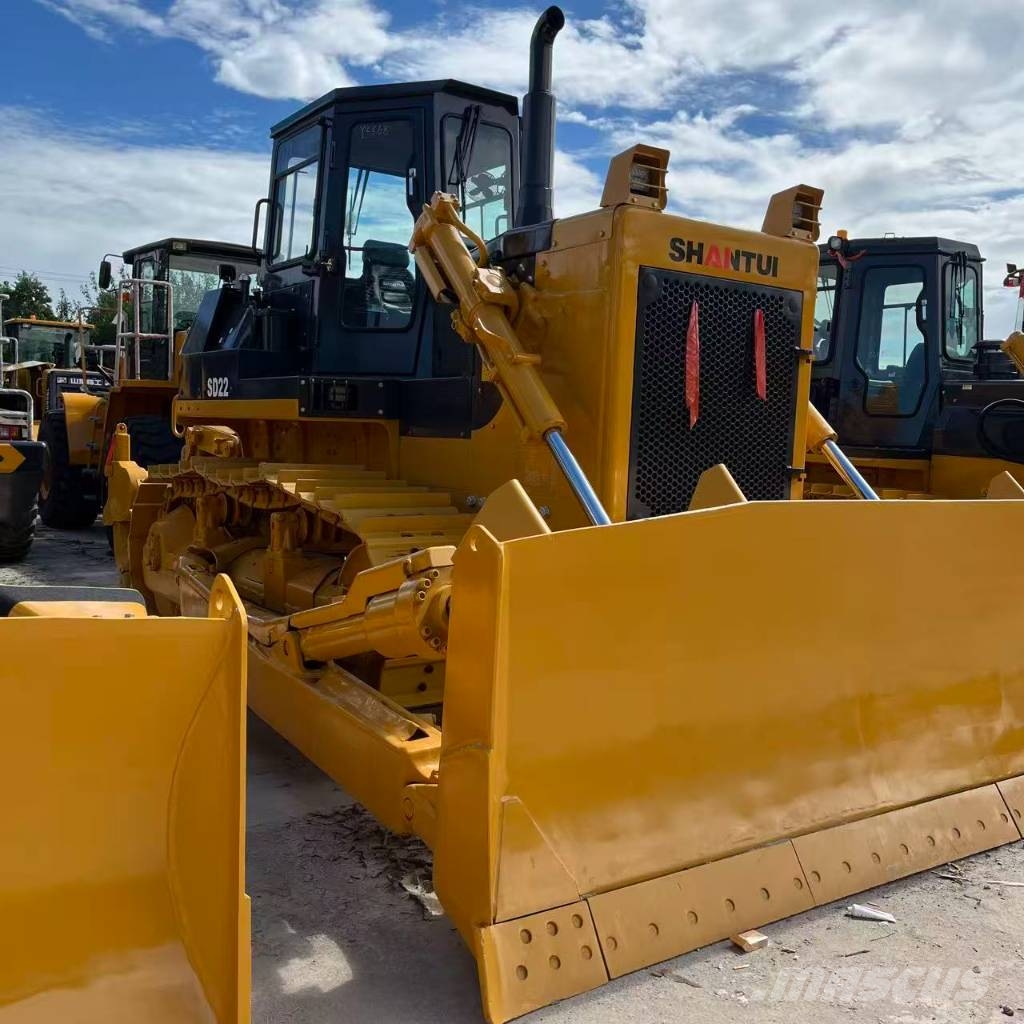

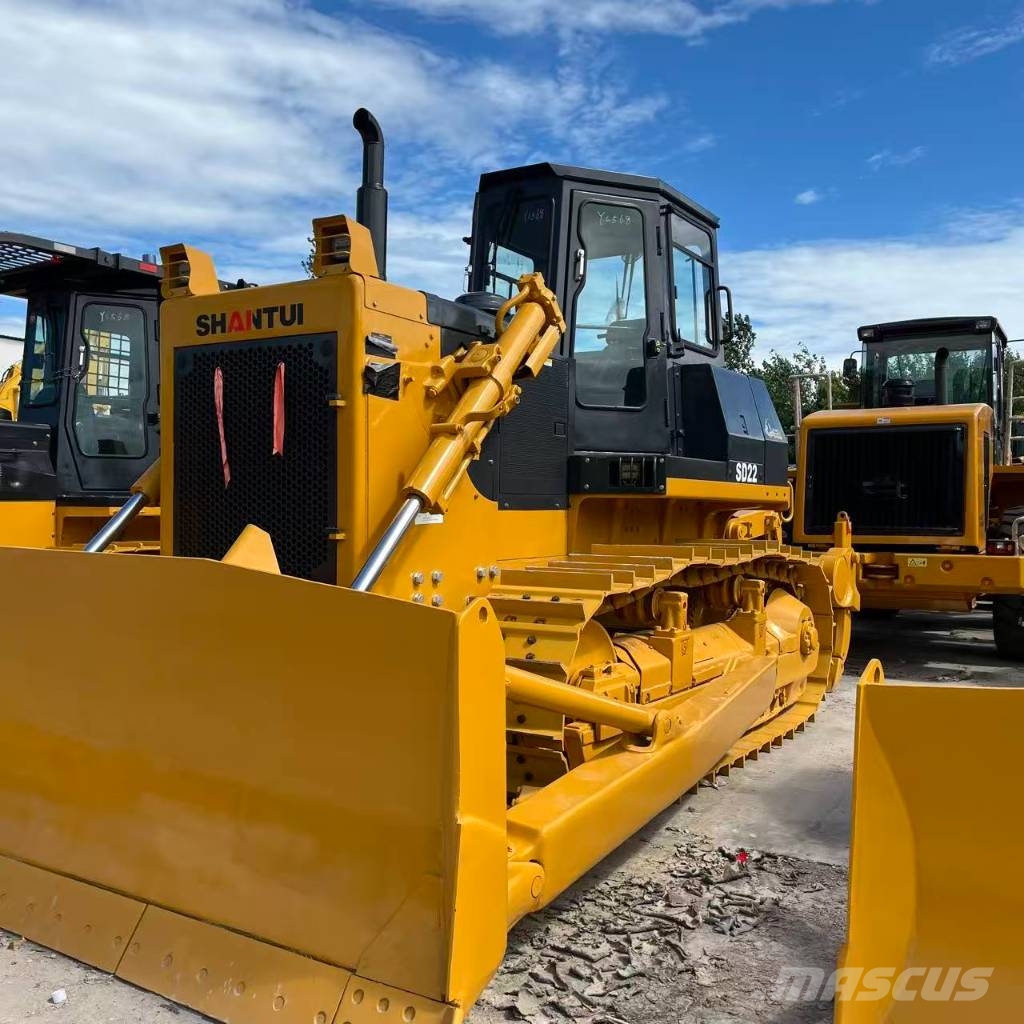

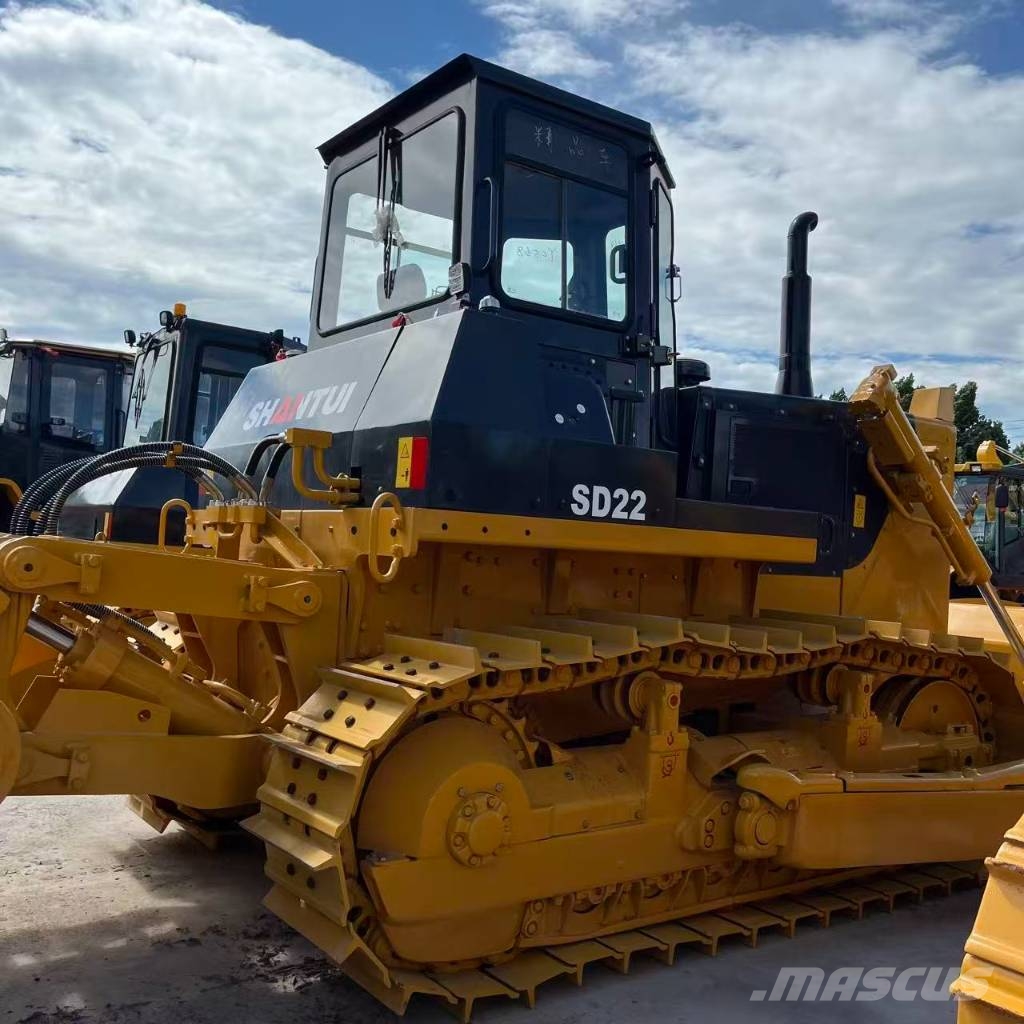

# SHANTUI SD22 Crawler Bulldozer Specifications - Model: SHANTUI SD22 - Machine type: Crawler Bulldozer - Operating weight: **23450 kg** - Blade capacity (Straight tilt blade): **4.6 m³** - Max blade lifting height: 1210 mm - Max cutting depth: 540 mm - Travel speed: Forward 3.6 / 6.5 / 11.2 km/h; Reverse 4.3 / 7.7 / 13.2 km/h - Fuel tank volume: 450 L ### Engine - Engine model: **Cummins NT855-C280S10** - Rated power: **162 kW / 1800 rpm** - Fuel: Diesel - Aspiration: Turbocharged - Cylinders: 6, In-line - Displacement: 14.01 L ### Hydraulic System - Pump type: Gear pump - System pressure: 14 MPa ### Transport Dimension L × W × H: **5495 × 3725 × 3745 mm** Track shoe width: **560 mm**
