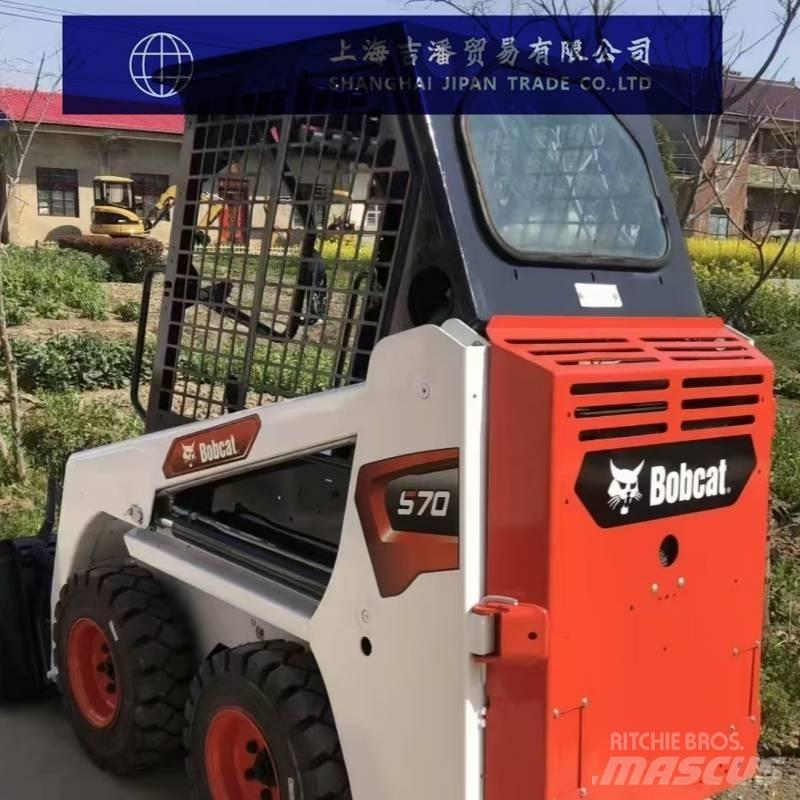

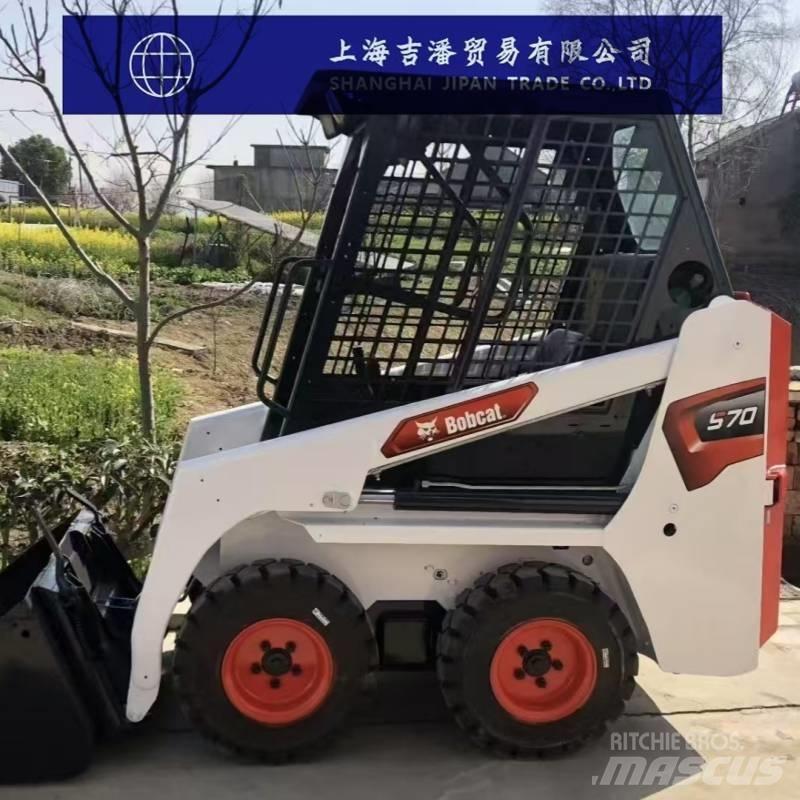

Bobcat S 70
Kaina be PVM
Spausdinti
INFORMACIJA
Prekių grupė
Krautuvai su šoniniu pasukimu
Gamintojas / modelis
Bobcat S 70
Registracijos metai
2023
Darbo valandų skaičius
550 h
Šalis
Kinija
Bendras įvertinimas
1
2
3
4
5
Mascus ID
CD627494
KAINOS
Pasirinkite valiutą
IŠSAMESNĖ INFORMACIJA
Vidinis prekės Nr.
1
Variklio tipas
Dyzelinis
Gamyklinis numeris
1
Paskutinis patikrinimas
2025-06-27
Važiuoklės būklė
Good Condition
Buvusių savininkų skaičius
1
Bendras svoris
1 268 kg
Max. kėlimo galia
686 kg
Registracijos numeris
1
Kėbulo tipas
Pastovus rėmas

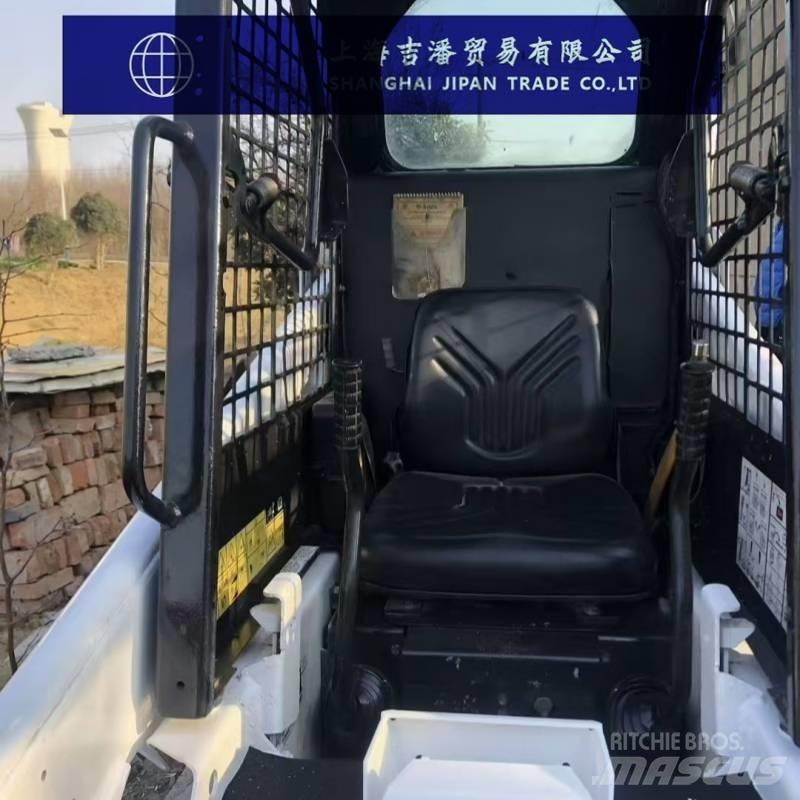

Kabinos tipas
Uždara kabina
Emisijos klasė
Etapas V
Variklis
Original
Kaušo talpa
0,10 m3
Variklio galia
16,8 kW (22,8 AG)
Variklio gamintojas
Original
Maksimalus greitis
9,80 km/h
Papildomos hidraulinės sistemos pajėgumas
37 l/min
Transporto matmenys (IxPxA)
2553 x 914 x 1814 mm
Originali spalva
Original
Vilkiko tipas
Ratinis
Informacija apie būklę/Garantija
1 Year
Padangų gamintojas
Original
Likęs priekinių padangų protektorius
98
Likęs galinių padangų protektorius
2
Galinių padangų dydis
Original
Priekinių padangų dydis
Original
Gamybos šalis
Jungtinės Valstijos
Pristatymo sąlygos
FCA, FOB, CIF, EXW
Sertifikatai
GAA, CHI
Priedai
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Naudoti priedai
Oro kondicionierius
Apkrovos jutimas
Atbulinės eigos sirena
Joystick control
Kita informacija
Basic performance parameters
Rated loading capacity: 343kg
Overturning load: 686kg
The total weight of the machine is 1268kg
Lifting mechanism form: Radial lifting
Rated loading bucket capacity: Not mentioned
Engine parameters
Engine model: Kubota KUbota D1005-E3B-BC-3
Rated power: 16.8kw/3000rpm
Maximum torque: 62.8N.m/2200rpm
Displacement: 1.001L
Number of cylinders: 3
Emission standard: Not mentioned
Through performance parameters
Drive motor form: Not mentioned
Maximum torque output by the drive motor: Not mentioned
Maximum driving speed: 9.8km/h
Tire size: 23×5.70-12
Front turning radius (with bucket) : 1557mm
Departure Angle: 25°
Hydraulic system parameters
Main pump type: Not mentioned
System safety pressure: 207bar
System rated flow rate: 37L/min
Ascension time: Not mentioned
Unloading time: Not mentioned
Release time: Not mentioned
Three items and: Not mentioned
Oil capacity parameters
Fuel tank: 24.6 liters
Hydraulic oil tank: Not mentioned
Hydraulic system: Not mentioned
Engine coolant: Not mentioned
Crankcase: Not mentioned
Sprocket oil tank: Not mentioned
Operation scope parameters
Maximum working height: Not mentioned
Maximum unloading height: 1891mm
Unloading distance (at the maximum height) : 469mm
The maximum height of the bucket hinge pin is 2399mm
The unloading Angle at the maximum unloading height: 34°
The retraction Angle of the bucket at its highest point: 97°
The retraction Angle of the bucket on the ground: 22°
Whole machine specification parameters
Total length (without attachments) : 1917mm
Total length (with bucket) : 2553mm
Full width (tire edge) : 901mm
Full width (edge of the bucket) : 914mm
Total height (up to the top of the cab) : 1814mm
Wheelbase: 722mm
Track: 752mm
Minimum ground clearance: 140mm
