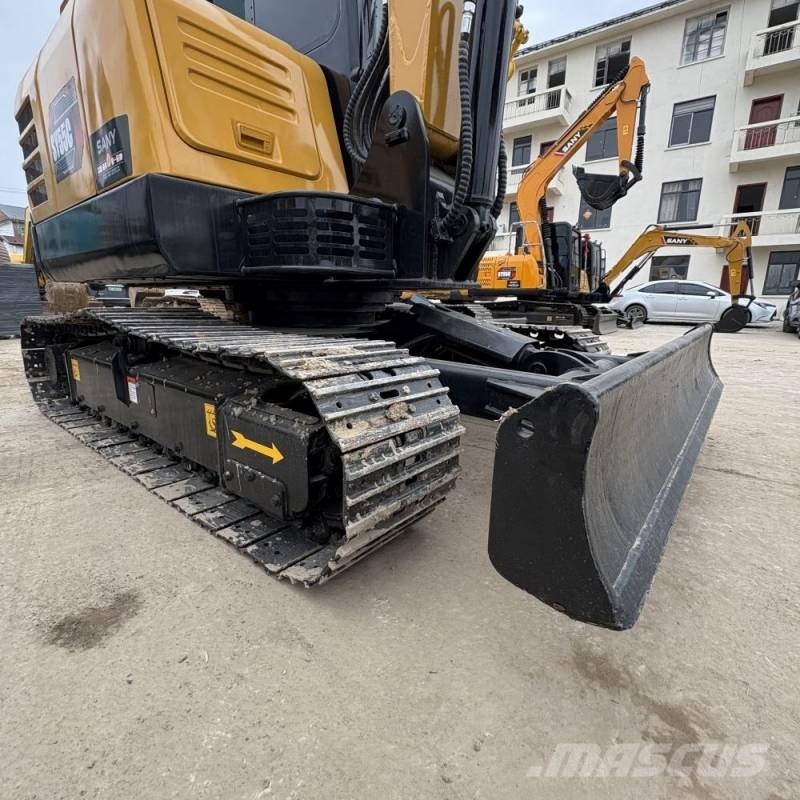

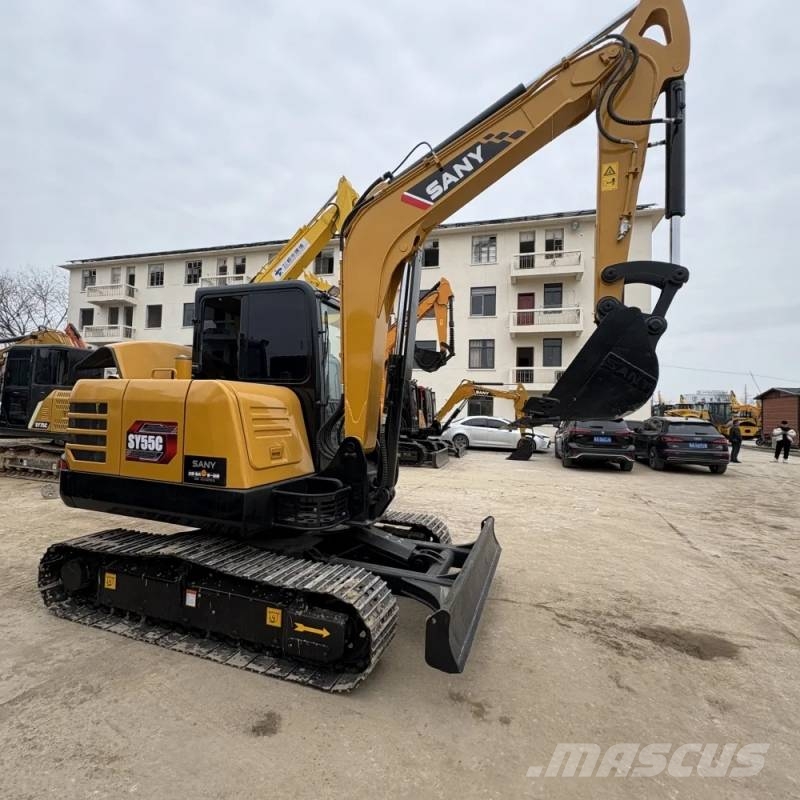

Sany SY 55 C

# SANY SY55C Crawler Excavator Specifications Model: SANY SY55C Operating Weight: 5780 kg Bucket Capacity: 0.21 m³ Transport Dimensions (L×W×H): 5925 × 2005 × 2595 mm Track Shoe Width: 400 mm Travel Speed (High/Low): 3.73 / 2.4 km/h Swing Speed: 9.6 rpm Bucket Digging Force: 45 kN Arm Digging Force: 33 kN Max Digging Depth: 3815 mm Max Digging Radius: 6090 mm Max Dumping Height: 3930 mm Max Digging Height: 5690 mm Ground Clearance: 330 mm Ground Pressure: 32.75 kPa Gradeability: 70% (35°) ## Engine Engine Model: Isuzu 4JG1 Rated Power: 36 kW / 2100 rpm Max Torque: 175 N·m / 1800 rpm Displacement: 3.059 L Engine Type: 4-cylinder, water-cooled, turbocharged, direct injection diesel Emission Standard: China Stage III ## Hydraulic System Hydraulic System: Load sensing control Fuel Tank Capacity: 130 L Hydraulic Tank Capacity: 85 L
