Deilmann Haniel BTS1

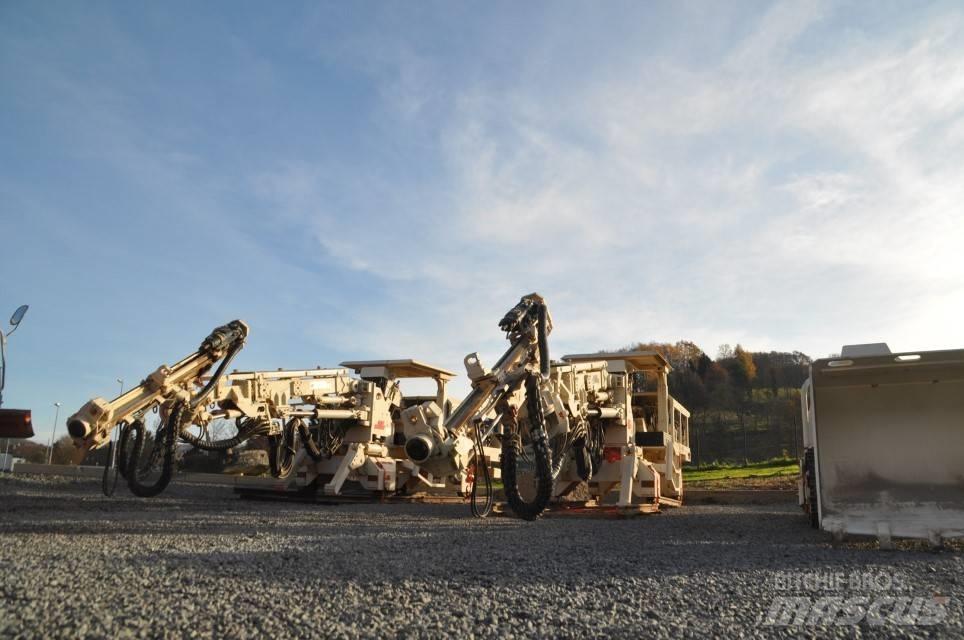

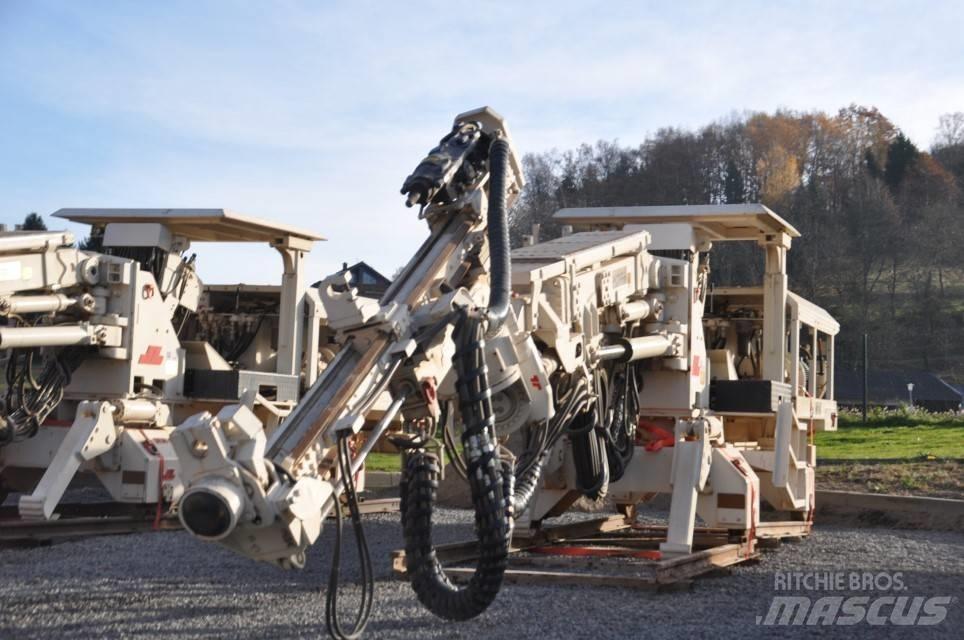

Rail drilling rig BTS 1 - Deilmann-Haniel drilling rig for sale, new and unused Drill rig suitable for inclined shafts! Atlas Copco COP 1238 ME Hammer Drill Technical Specifications for the Deilmann-Haniel BTS1 Rail Drilling Jumbo: Weight: 17,000 kg Motor: Power: 55/63/75 kW Pump Output: 2 x 110 l/min Transportation in a 40" container or truck tarpaulin is possible Dimensions: Machine length: 12.40 m Working width: 1700 mm Machine height: variable: 2550 - 3200 mm Wheelbase: 3000 mm Main components, e.g., BTS1 drill rig: - Drill carriage with COP hammer drill - Carriage support - Drill arm - Outrigger support - Drill rig with FOPS (Field Protection System) - Overhead guard - Winch control station - Rail undercarriage - Electric drive station - Cable winch Drill control: - Drilling stage - Automatic impact mechanism engagement and disengagement - Automatic anti-seize drilling system Additional equipment: - Radio remote control - Air compressor - Water pressure booster pump - Hydraulically retractable overhead guard - Auxiliary winch - Drill arm access panel CE marking Operating manual Spare parts manual
