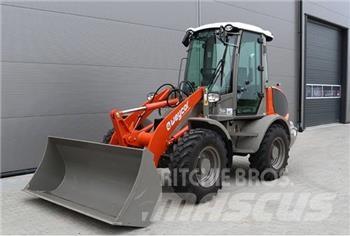

Weycor AR 420

Manufacturer: ATLAS Weyhausen (Germany) Engine: Deutz TD2.9 L4 diesel Power: 55 kW (74 HP) at 2200 rpm Max. torque: 260 Nm at 1600 rpm Displacement: 2920 cm³ Number and arrangement of cylinders: 4 in-line Pullout force: 5160 daN Static tipping load (ISO/DIS 14397-1) - straight: 4160 kg Static tipping load (ISO/DIS 14397-1) - at full 40º turn: 3673 kg Bucket capacity: 0.88 m3 Tires: 12.5 – 20R (340/70/20) or 405/70/20 Weight of the machine ready for work: 5600 kg Standard equipment of ATLAS AR 420 Voltage: 12V Battery: 12V / 100 Ah Generator: 14V / 95 A Starter: 12V / 2.6 kW Hydrostatic drive system Speed ​​regulation - crawling and fast (so-called tortoise - hare) Pre-air filter Standard maximum speed 20 km/h 100% differential lock included on the front and rear axles - mechanical Articulated frame, rigid axles with planetary gear, all-wheel drive Wet multi-disc brakes Z-type kinematics with hydraulic quick coupler Additional circuit with quick connectors Soundproof cabin equipped with ROPS protective structure Smooth adjustment of the steering wheel Entrance on both sides, doors on the right and left. Sun visor, hangers, lights, storage compartments Central dashboard with indicators: glow plug heating, engine temperature, fuel level, operating hours counter and indicators for oil pressure, engine overheating, hydraulic oil temperature, battery charging, handbrake and air filter Multifunctional lever for controlling work equipment Indication of forward/reverse driving range and idle speed Hydraulic controls Adjustable windshield air flow, heated rear window Rear and front window wipers and washers Work lighting front and rear, reversing lamps Folding exterior mirrors Compliant with STVZO* and CE (*Regulations on the admission of vehicles to traffic)
