APV TR9GL MGS-25

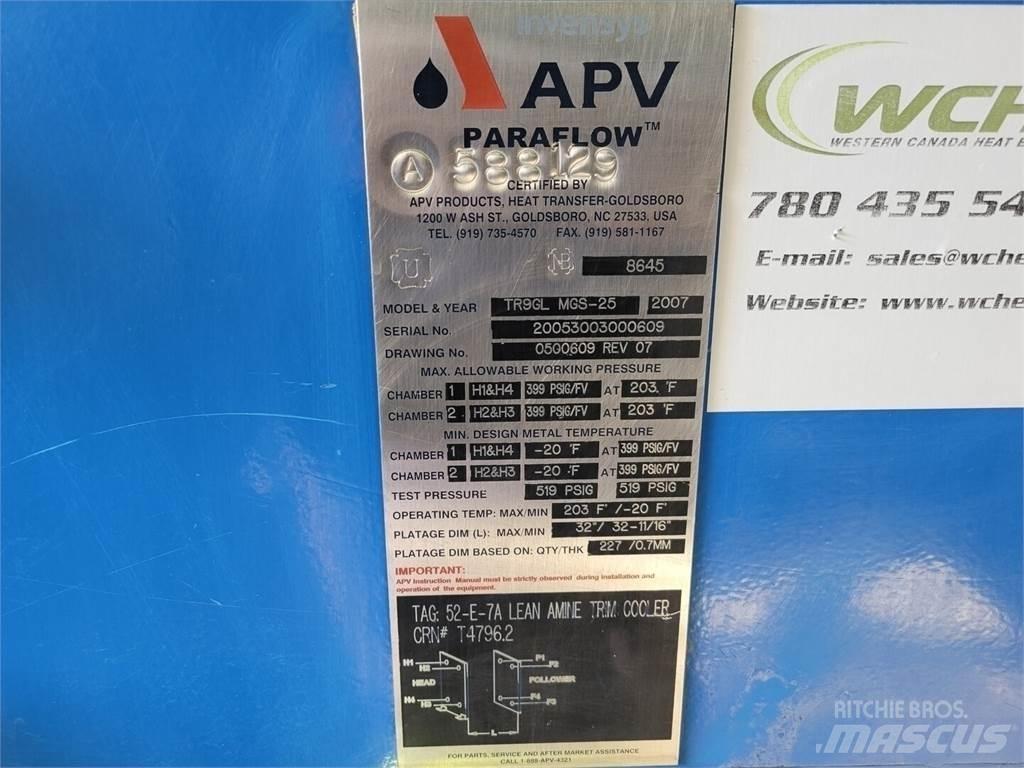

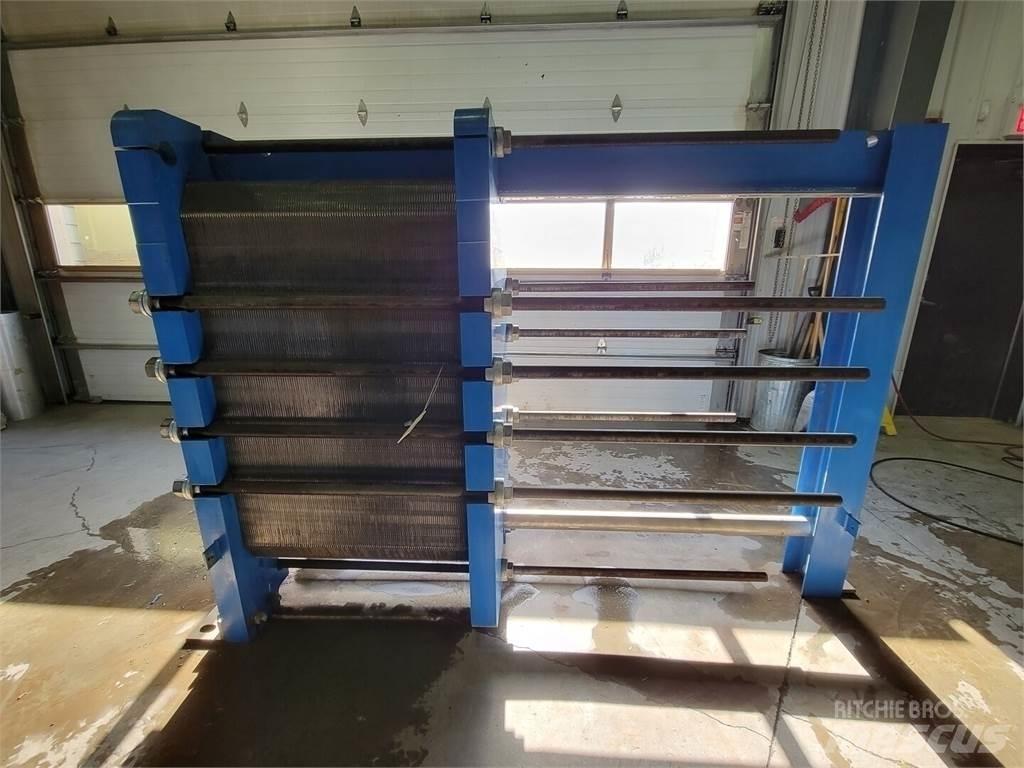

Paraflow TR9GL MGS-25 Plate Heat Exchanger Title: Paraflow TR9GL MGS-25 Plate Heat Exchanger SKU: 82807 Model: TR9GL MGS-25 Year: 2007 Condition: Used S/N: 20053003000609 Made In: UNITED STATES Dimensions: 68.00 (H) x 32.00 (W) x 104.00 (L) inches Max. Allowable Working Pressure: 399 PSIG/FV ... 203 oF Min. Design Metal Temperature: -20 oF ... 399 PSIG/FV Operating Temp.: Max. 203 oF / Min. -20 oF Heat Transfer Area: 1298 sq. ft. Frame Size: No. 3 Max. Frame Capacity: 360 Plates Dry Weight: 6973 lbs. Flooded Weight: 7873 lbs. Total Liquid Volume: 108.1 US Gal. (409.1 L) Operation Liquids: Lean diethanolamine, cooling water Materials Frame: SA-516-70N Plates: SA-240-316 Gasket: EPDM RC (Paratemp) Tie Bars: SA-193 B7 Shroud: 304 SS Nozzle Lining: 316 SS Bolts/Nuts (Internal): SA-193-B7M / SA-194-2HM Bolts/Nuts (External): SA-193-B7 / SA-194-2H [Datasheet](...
