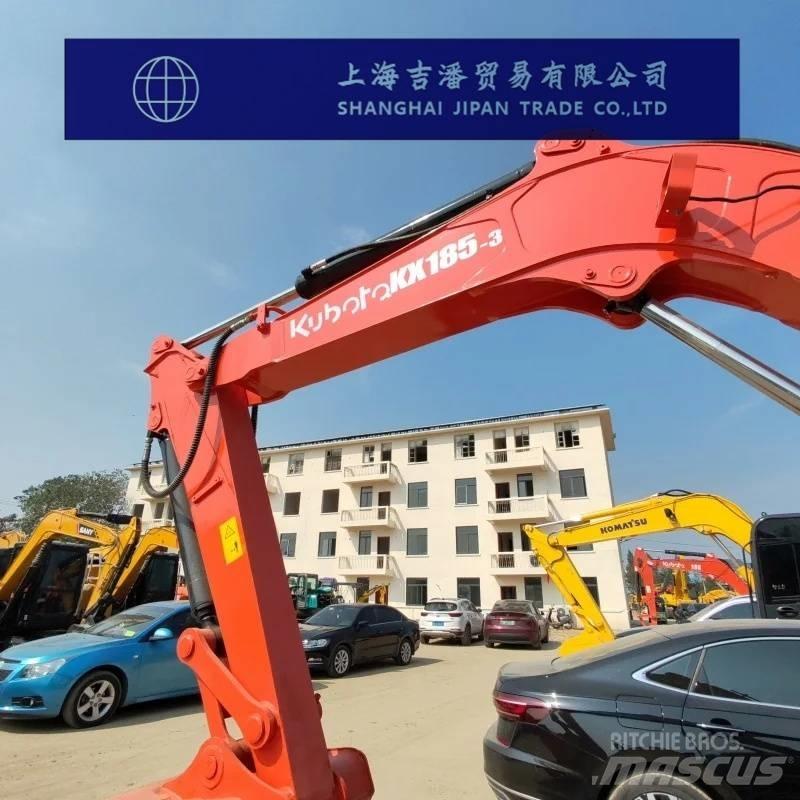

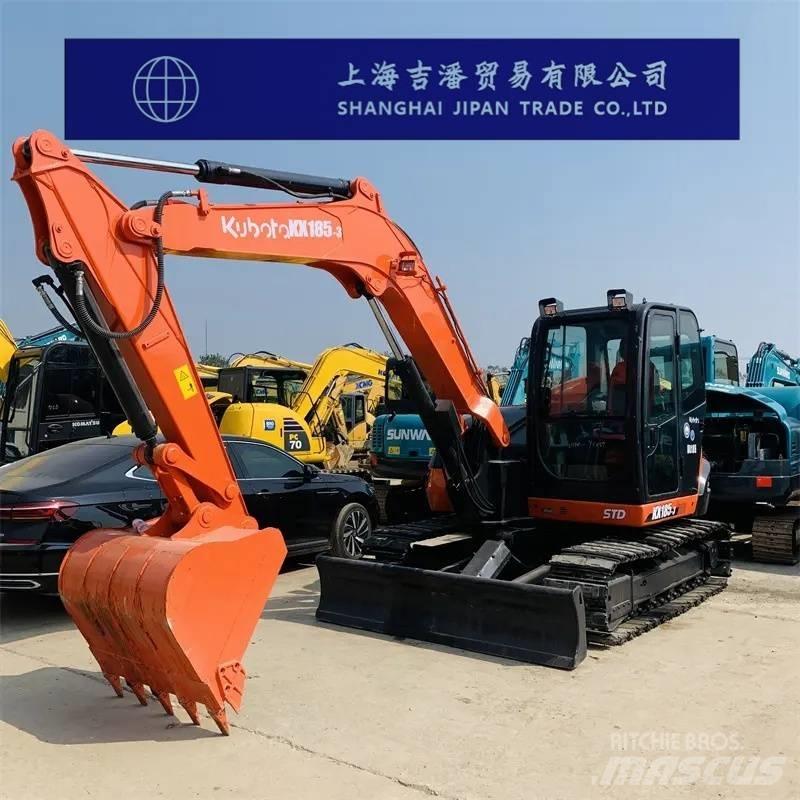

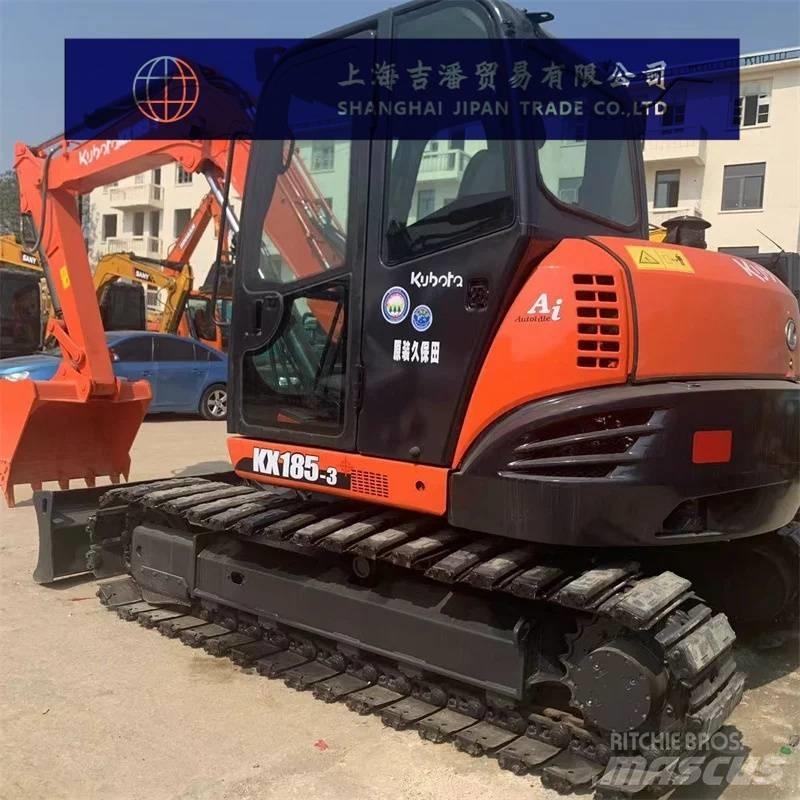

Kubota KX 185-3
Kaina be PVM
Spausdinti
INFORMACIJA
Prekių grupė
Vidutinės galios ekskavatoriai 7-12 t
Gamintojas / modelis
Kubota KX 185-3
Registracijos metai
2023
Darbo valandų skaičius
700 h
Šalis
Kinija
Bendras įvertinimas
1
2
3
4
5
Mascus ID
E5C9F8C5
KAINOS
Pasirinkite valiutą
IŠSAMESNĖ INFORMACIJA
Vidinis prekės Nr.
1
Variklio tipas
Dyzelinis
Buvusių savininkų skaičius
1
Važiuoklės būklė
Good Condition
Paskutinis patikrinimas
2025-06-26
Gamyklinis numeris
1
Bendras svoris
8 245 kg
Variklis
Original
Emisijos klasė
Etapas V
Variklio galia
47,8 kW (65,0 AG)
Registracijos numeris
1
Variklio gamintojas
Original
Kaušo talpa
0,35 m3
Track width
600 mm
Transporto matmenys (IxPxA)
6450 x 2200 x 2530 mm
Originali spalva
Original
Informacija apie būklę/Garantija
1 Year
Gamybos šalis
Japonija
Pristatymo sąlygos
FCA, FOB, CIF, EXW
Sertifikatai
GAA, CHI
Priedai
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Naudoti priedai
kaušo strėlės lyno nutrūkimo apsauginis vožtuvas
Surištų vielų dėžė
Oro kondicionierius
Papildoma hidraulikos sistema
Variklio išankstinis filtras
Kaušas rėtis
Variklio pašildymo mazgas
Battery disconnector
Rotating beacon
Diesel heater
Joystick control
Standard digging bucket
Cable bucket
Kita informacija
Kubota KX185-3 excavator parameter configuration
Specification
The overall working weight of the machine (kg) is 8245
Bucket capacity (m³)0.35
Tonnage (tons)8
Joint venture/import by manufacturers
Power, traditional power
Bucket backhoe
Joint venture/import by manufacturers
Power, traditional power
Performance
Rotational speed (rpm)9.5
Climbing ability (%)58/30 degrees
Bucket digging force (kN)65.2
Power system
The engine model is Kubota V3307Dl-T
Rated power (kw/rpm)47.8/2000
Displacement (L) : 3.33
The cooling method is water cooling
Hydraulic system
The main pump type is variable pump ×2+ gear pump
Walking hydraulic motor type: Piston hydraulic motor
Rotary hydraulic motor type: Piston hydraulic motor
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L)115
Main body size
Total transportation length (mm) : 6450
Total transportation width (mm) : 2200
Total transportation height (mm) : 2530
The total height of the cab (mm) is 2530
Track grounding length (mm)2300
Total track length (mm)2840
Track plate width (mm)450
The total width of the track (mm) is 2200
Track gauge (mm)1750
Minimum ground clearance (mm) : 390
The minimum turning radius (mm) of the front-end working device is 2410/2000
The rear end rotation radius (mm) is 1460
Scope of work
Maximum excavation radius (mm) : 7010
The maximum excavation radius (mm) of the shutdown surface is 6850
Maximum excavation depth (mm) : 4290
Maximum excavation height (mm)7040
Maximum unloading height (mm) : 4980
The maximum vertical excavation depth (mm) is 3490
The width × height (mm) of the push board is 2200×500
The lifting or pushing depth of the bulldozer blade (mm) is 470/530
