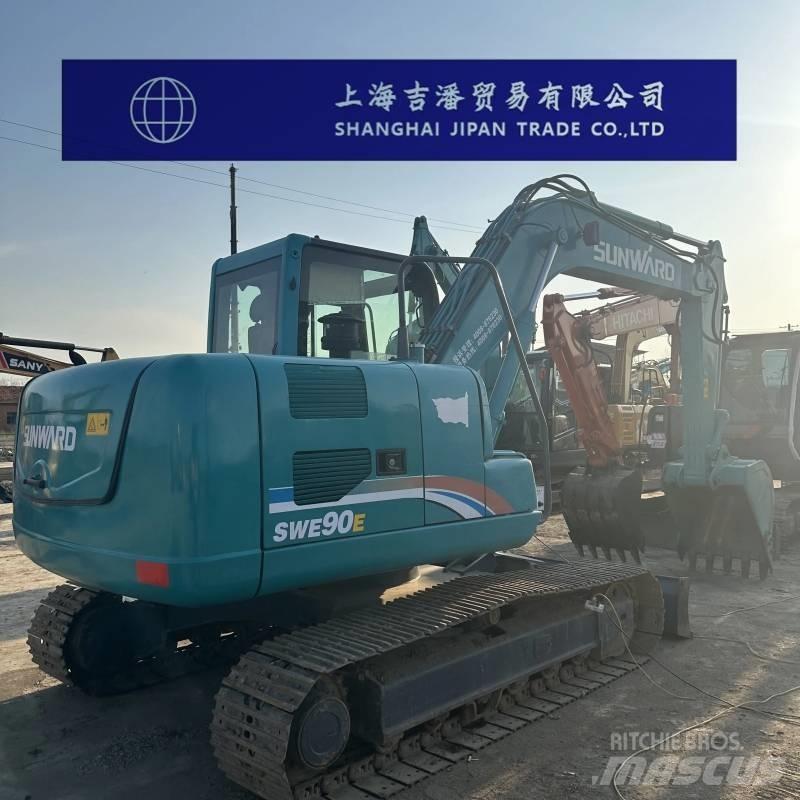

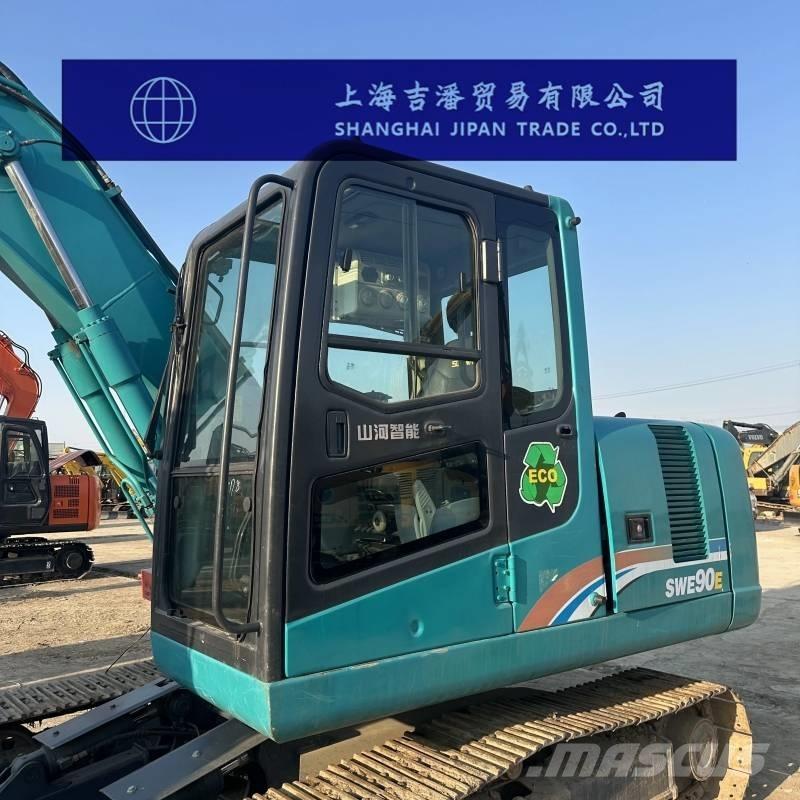

Sunward SWE 90 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

山河智能SWE90E挖掘机 参数配置 规格 动力传统动力 厂商国产 铲斗反铲 吨位(吨)9 整机工作重量(kg)8900 铲斗容量(m³)0.36 性能 回转速度(rpm)9 行走速度(km/h)4.5/2.5 接地比压(Kpa)39 铲斗挖掘力(kN)67.5 斗杆挖掘力(kN)46 动力系统 发动机型号V3800-DI-T-E2B 额定功率(kw/rpm)54.6/2200 冷却方式水冷 主体尺寸 运输总长度(mm)6400 运输总宽度(mm)2370 运输总高度(mm)2625 驾驶室全高(mm)2665 上车宽度(mm)2250 履带接地长度(mm)2335 履带总长度(mm)2920 履带板宽度(mm)450 最小离地间隙(mm )350 配重离地间隙(mm)800 前段工作装置最小回转半径(mm)2045 后端回转半径(mm )1800 作业范围 最大挖掘半径(mm)6725 停机面最大挖掘半径(mm)6585 最大挖掘深度(mm)4205 最大挖掘高度(mm)7275 最大卸载高度(mm)5150 最大垂直挖掘深度(mm)3680 推土板宽度×高度(mm)2320×415 推土铲举升或推深(mm)405/330
