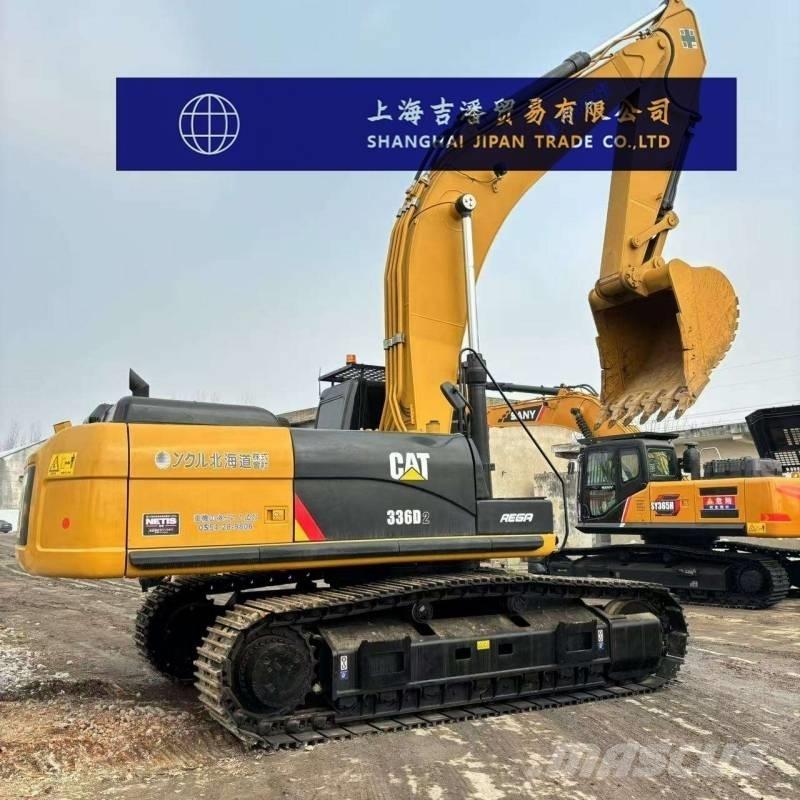

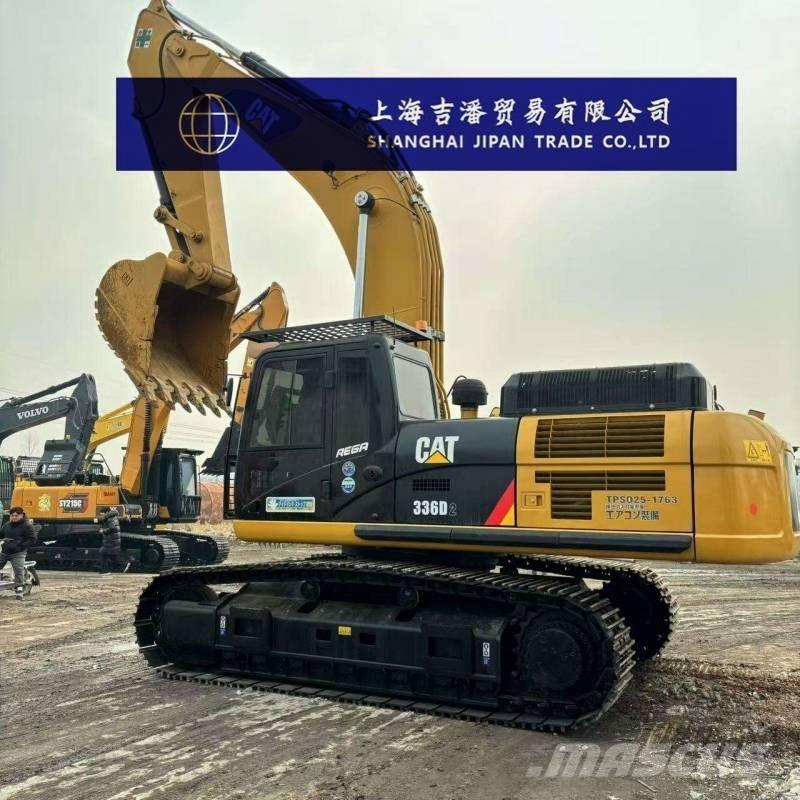

CAT 336 D

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Specification Tonnage (tons)36 The working weight of the entire machine (kg) is 34,600 Bucket capacity (m³):1.88 Boom length (mm):6500 The length of the boom (mm) is 2800 Origin: The United States Performance Rotational speed (rpm):8.3 Rotary torque (Nm)109 Walking speed (km/h):4.6 Climbing ability:70% The maximum traction force (kN) is 300 Power system Engine model: Cat C9 ACERT Rated power (kw/rpm):208 Displacement (L)8.8 Cylinder diameter × stroke (mm):112×149 Hydraulic system Type 35 of walking hydraulic motor Rotary hydraulic motor type 28 The maximum flow rate of the main pump (l/min) is 281 Pilot pump flow rate (L/min)40 Pilot oil circuit (MPa)4 The main overflow set pressure (Mpa) is 35 Boom cylinders - number × cylinder diameter × stroke (mm)150×1440 Bucket rod cylinder - number × cylinder diameter × stroke (mm)170×1738 Bucket cylinder - Number × cylinder diameter × stroke (mm)150×1151 Oil capacity Fuel tank (L)620 Hydraulic oil tank (L)175 Hydraulic System (L)410 Engine oil change volume (L)41 Coolant (L)40 Main body size The total transportation length (mm) is 11210 The total transportation width (mm) is 3190 The total transportation height (mm) is 3670 The total height of the cab (mm) is 3140 The total length of the track (mm) is 4590 Track plate width (mm):600 Track gauge (mm):2590 Minimum ground clearance (mm)510 The ground clearance of the counterweight (mm) is 1220 The rear end turning radius (mm) is 3490 Scope of work The maximum excavation radius (mm) of the shutdown face is 11,760 Maximum excavation depth (mm):8,210 Maximum excavation height (mm):10730 Maximum unloading height (mm):7510 The maximum vertical excavation depth (mm) is 6290
