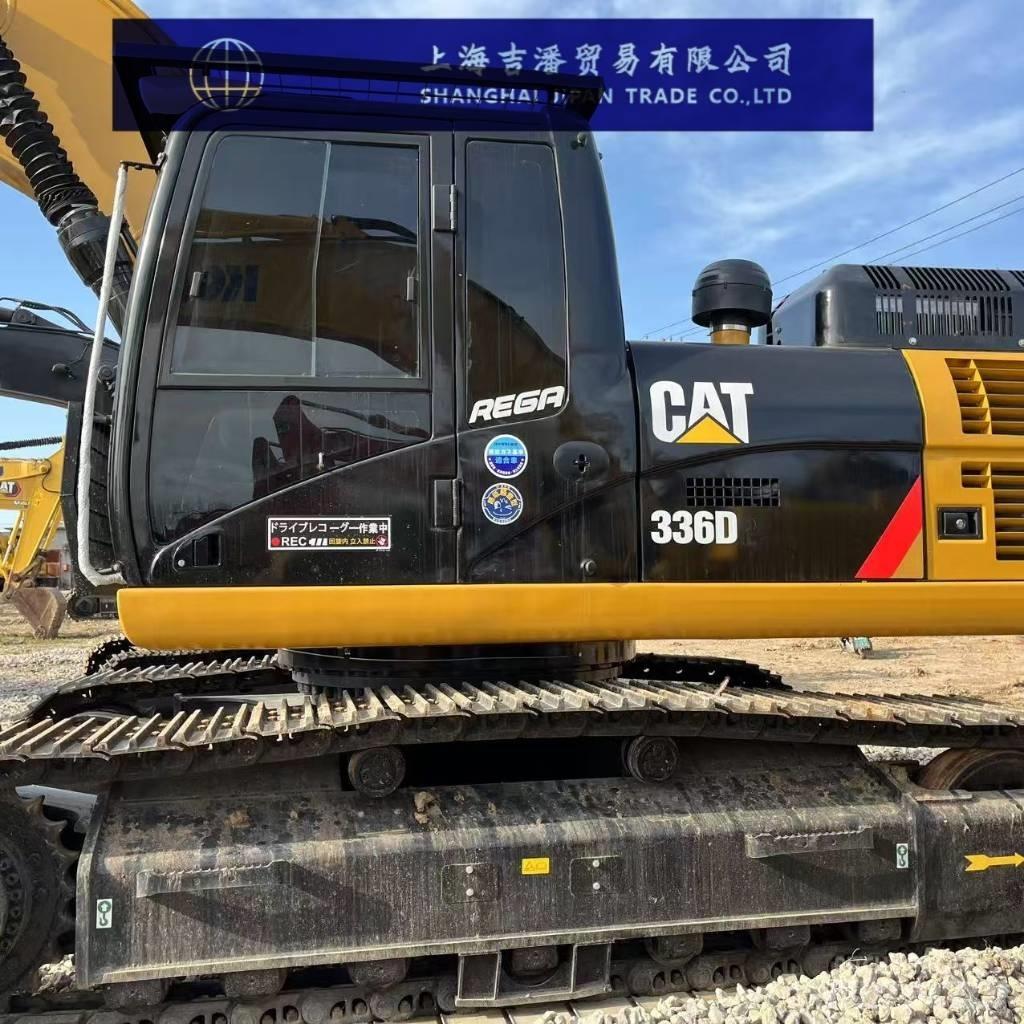

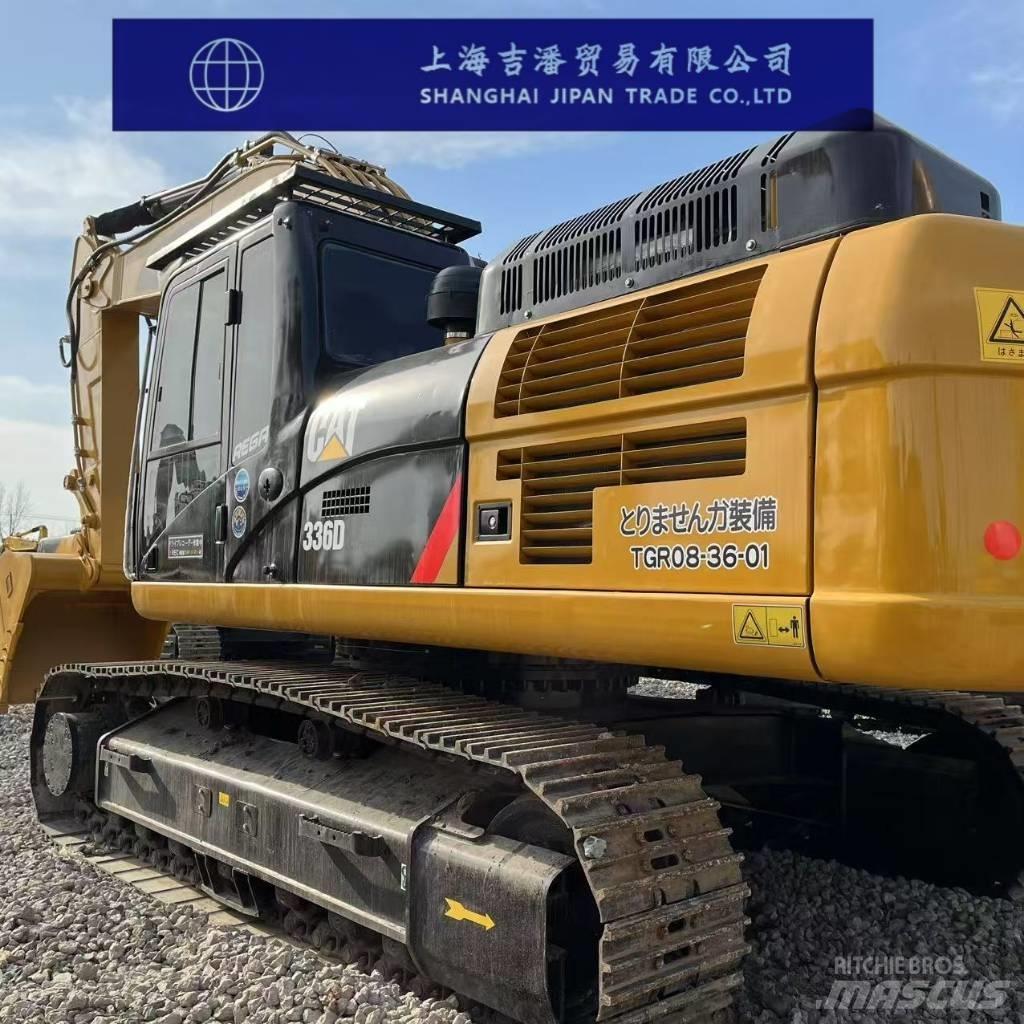

CAT 336 D

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

卡特彼勒新一代CAT®336 液压挖掘机 参数配置 规格 动力传统动力 厂商国产 铲斗反铲 吨位(吨)36 整机工作重量(kg)37100 铲斗容量(m³)2.12（岩石斗） 动臂长度(mm)6500 斗杆长度(mm)3200 性能 回转速度(rpm)8.84 回转扭矩(Nm)143k 行走速度(km/h)4.7 铲斗挖掘力(kN)209 斗杆挖掘力(kN)166 最大牵引力(kN)302.5 动力系统 发动机型号C7.1 TTA 额定功率(kw/rpm)225/2000 排量(L)7.01 缸径×行程(mm)105*135 排放标准国Ⅳ 液压系统 主泵最大流量(l/min)560 工作液压油路(Mpa)35 行走液压回路(Mpa)35 回转液压回路(Mpa )29.4 油类容量 燃油箱(L)600 液压油箱(L)161 液压系统(L)373 发动机油更换量(L)25 冷却液(L )39 主体尺寸 运输总长度(mm)11170 运输总宽度(mm)3340 运输总高度(mm)3180 履带总长度(mm)5030 履带板宽度(mm)600 履带轨距(mm)2740 配重离地间隙(mm)1260 最小离地间隙(mm )510 后端回转半径(mm )3530 作业范围 最大挖掘半径(mm)11110 最大挖掘深度(mm)7560 最大挖掘高度(mm)10340 最大卸载高度(mm)7040 最大垂直挖掘深度(mm)
