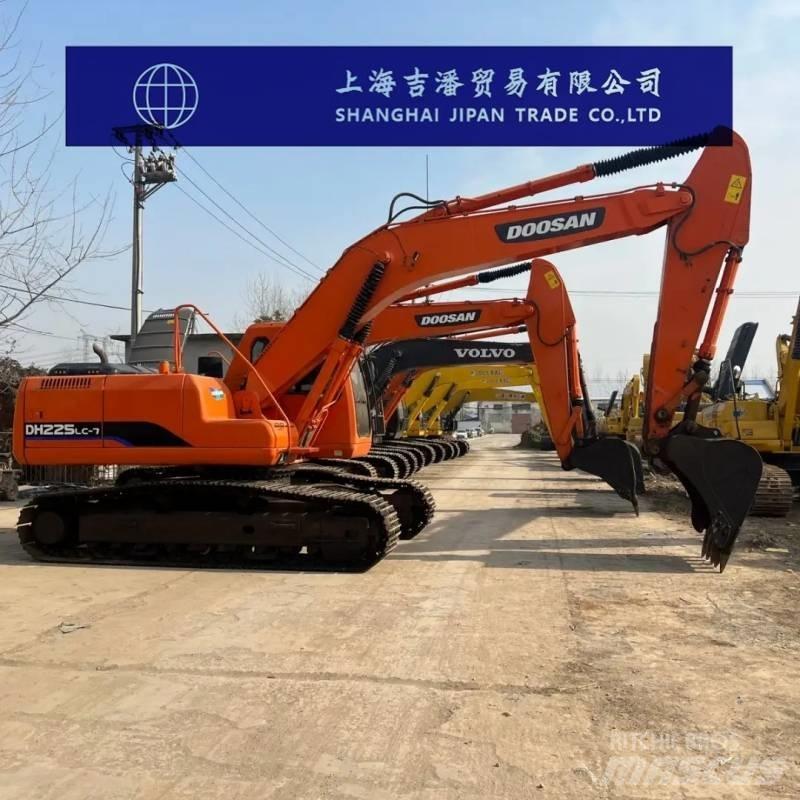

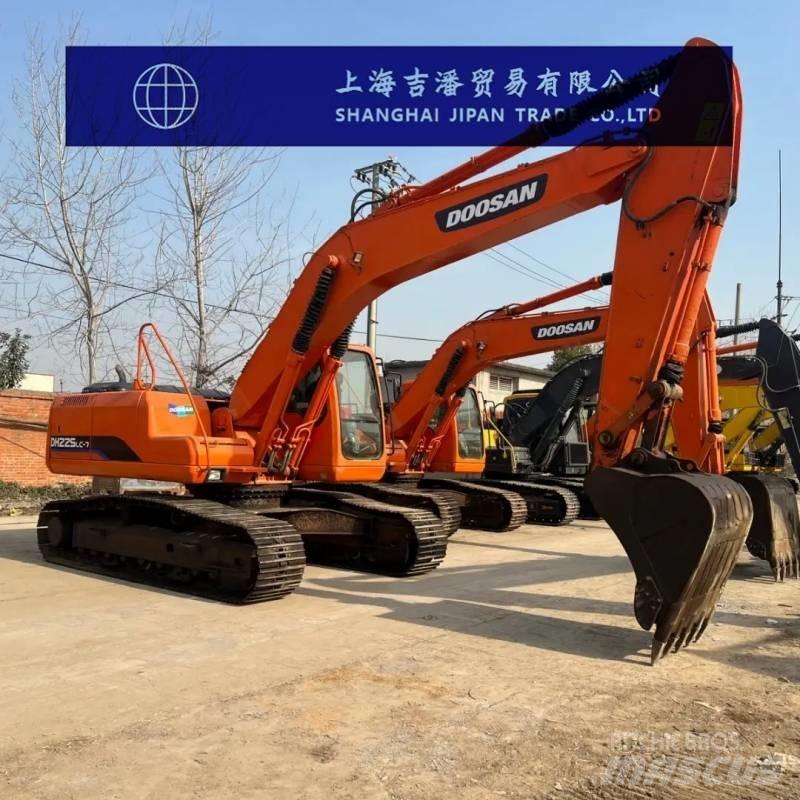

Doosan DH 225 LC-7
Kaina be PVM
Spausdinti
INFORMACIJA
Prekių grupė
Vikšriniai ekskavatoriai
Gamintojas / modelis
Doosan DH 225 LC-7
Registracijos metai
2023
Darbo valandų skaičius
600 h
Šalis
Kinija
Bendras įvertinimas
1
2
3
4
5
Mascus ID
65C03250
KAINOS
Pasirinkite valiutą
IŠSAMESNĖ INFORMACIJA
Vidinis prekės Nr.
1
Variklio tipas
Dyzelinis
Gamyklinis numeris
1
Buvusių savininkų skaičius
1
Paskutinis patikrinimas
2025-07-08

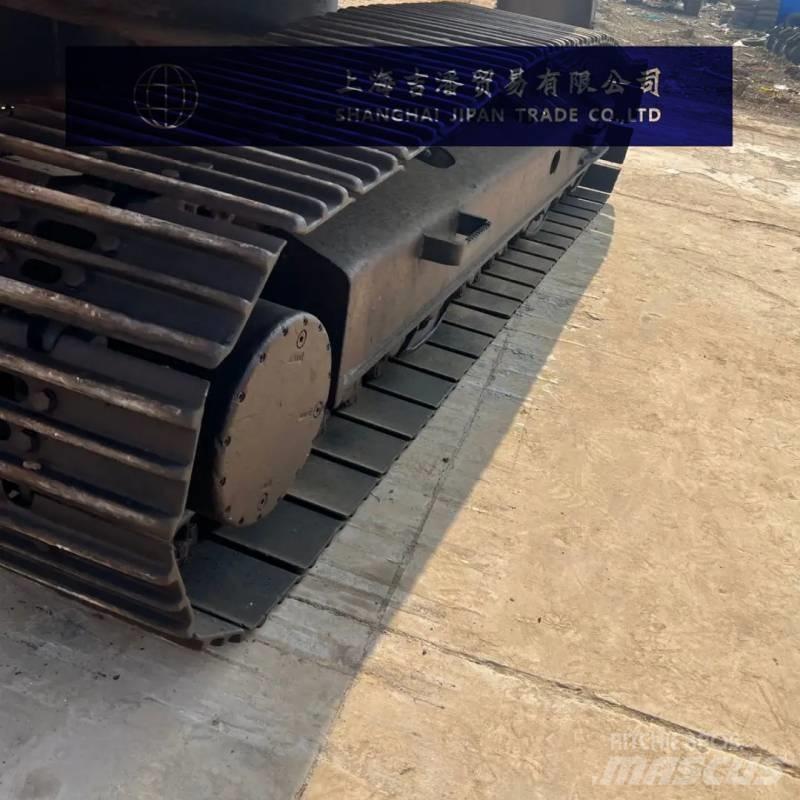

Važiuoklės būklė
Good Condition
Variklis
Original
Bendras svoris
21 500 kg
Variklio galia
110 kW (150 AG)
Variklio gamintojas
Original
Registracijos numeris
1
Emisijos klasė
Etapas V
Kaušo talpa
1,28 m3
Track width
600 mm
Papildomos hidraulinės sistemos pajėgumas
215 l/min
Maksimalus greitis
4,50 km/h
Transporto matmenys (IxPxA)
9510 x 2990 x 3030 mm
Originali spalva
Original
Kaušo / strypo ilgis
2 900 mm
Informacija apie būklę/Garantija
1 Year
Gamybos šalis
Pietų Korėja
Pristatymo sąlygos
FCA, FOB, CIF, EXW
Sertifikatai
GAA, CHI
Priedai
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Naudoti priedai
Surištų vielų dėžė
Papildoma hidraulikos sistema
Variklio išankstinis filtras
Kaušas rėtis
Battery disconnector
Rotating beacon
Diesel heater
Joystick control
Standard digging bucket
Cable bucket
V ditch bucket
Kita informacija
Parameter configuration of Doosan DH225LC-7 excavator
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)22
The working weight of the entire machine (kg) is 21,500
Bucket capacity (m³) : 0.5-1.28
Boom length (mm) : 5700
The length of the boom (mm) is 2900
Performance
Rotational speed (rpm) : 12.4
Walking speed (km/h)3.1-4.5
Bucket digging force (kN)136.2/144.1
The digging force of the boom (kN) is 97/102.9
Power system
Engine model: Doosan DB58TIS
Rated power (kw/rpm)110/1950
Displacement (L)6.3
The cooling method is air cooling
Hydraulic system
The main pump type variable is an axial piston pump
The maximum flow rate of the main pump (l/min) is 2×215
Main body size
Total transportation length (mm) : 9510
The total transportation width (mm) is 2990
Total transportation height (mm)3030
The total height of the cab (mm) is 3000
The grounding length of the track (mm) is 3645
The total length of the track (mm) is 4440
Track plate width (mm) : 600
The total width of the tracks (mm) is 2990
Track gauge (mm) : 2390
Minimum ground clearance (mm) : 480
The ground clearance of the counterweight (mm) is 1105
Rear end turning radius (mm) : 2750
Scope of work
Maximum excavation radius (mm) : 9910
The maximum excavation radius of the shutdown face (mm) is 9735
Maximum excavation depth (mm) : 6630
Maximum excavation height (mm) : 9660
Maximum unloading height (mm)6810
Maximum vertical excavation depth (mm) : 6045
Maximum effective excavation depth (mm) : 6445
