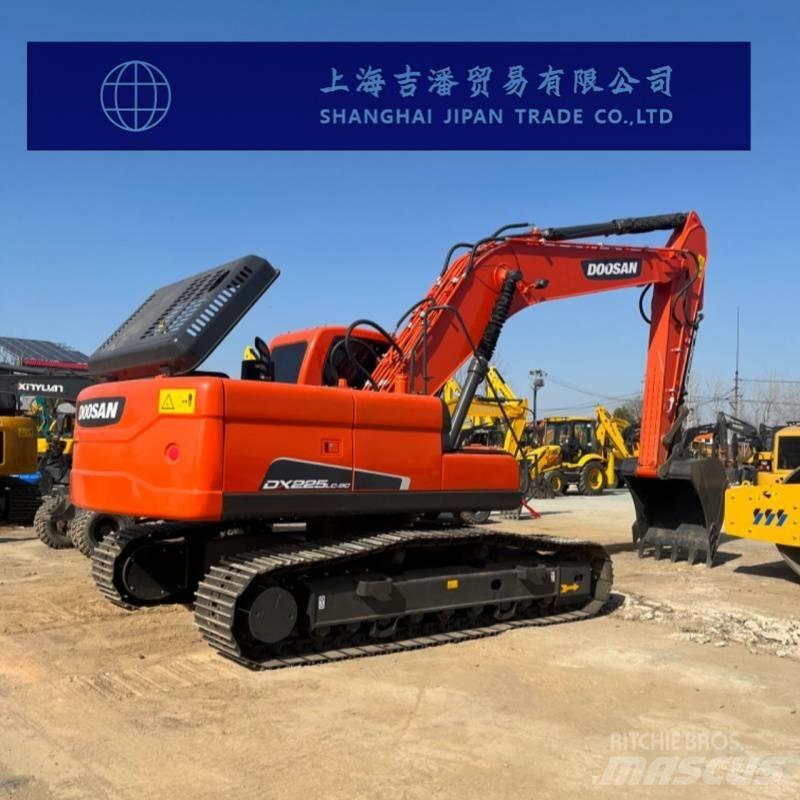

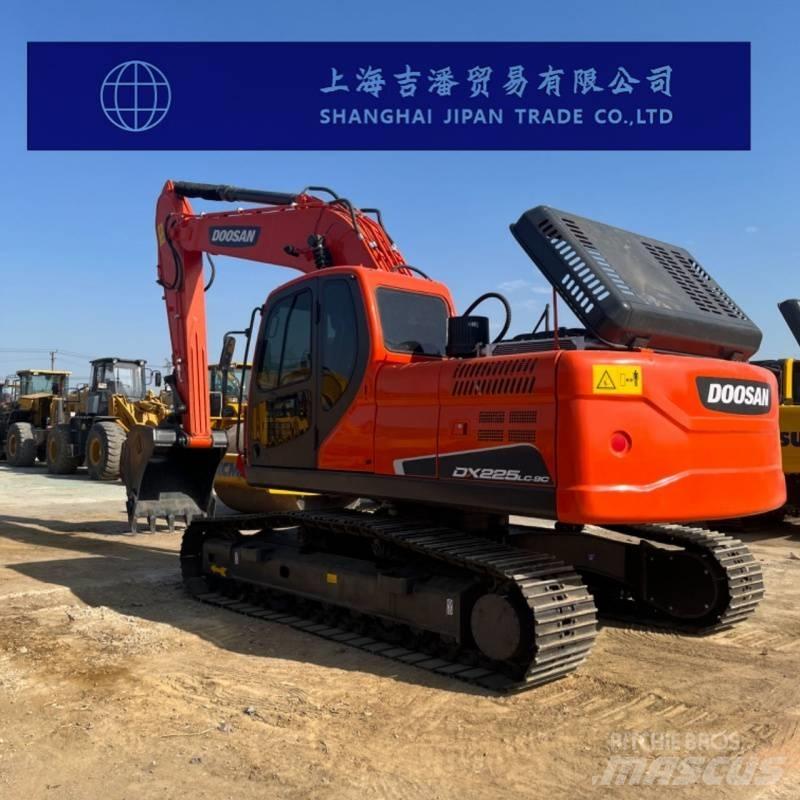

Doosan DX 225
Kaina be PVM
Spausdinti
INFORMACIJA
Prekių grupė
Vikšriniai ekskavatoriai
Gamintojas / modelis
Doosan DX 225
Registracijos metai
2024
Darbo valandų skaičius
500 h
Šalis
Kinija
Bendras įvertinimas
1
2
3
4
5
Mascus ID
968E6BD3
KAINOS
Pasirinkite valiutą
IŠSAMESNĖ INFORMACIJA
Vidinis prekės Nr.
1
Variklio tipas
Dyzelinis
Gamyklinis numeris
1
Buvusių savininkų skaičius
1
Paskutinis patikrinimas
2025-07-08
Važiuoklės būklė
Good Condition
Variklis
Original
Bendras svoris
21 800 kg
Variklio galia
115 kW (156 AG)
Variklio gamintojas
Original
Registracijos numeris
1
Emisijos klasė
Etapas V
Kaušo talpa
1,05 m3
Track width
600 mm
Papildomos hidraulinės sistemos pajėgumas
212 l/min
Maksimalus greitis
5,70 km/h
Transporto matmenys (IxPxA)
9506 x 2990 x 2891 mm
Originali spalva
Original
Informacija apie būklę/Garantija
1 Year
Gamybos šalis
Pietų Korėja
Pristatymo sąlygos
FCA, FOB, CIF, EXW
Sertifikatai
GAA, CHI
Priedai
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Naudoti priedai
strėlės lyno nutrūkimo apsauginis vožtuvas
kaušo strėlės lyno nutrūkimo apsauginis vožtuvas
Surištų vielų dėžė
Oro kondicionierius
Papildoma hidraulikos sistema
Variklio išankstinis filtras
Kaušas rėtis
Battery disconnector
Rotating beacon
Diesel heater
Joystick control

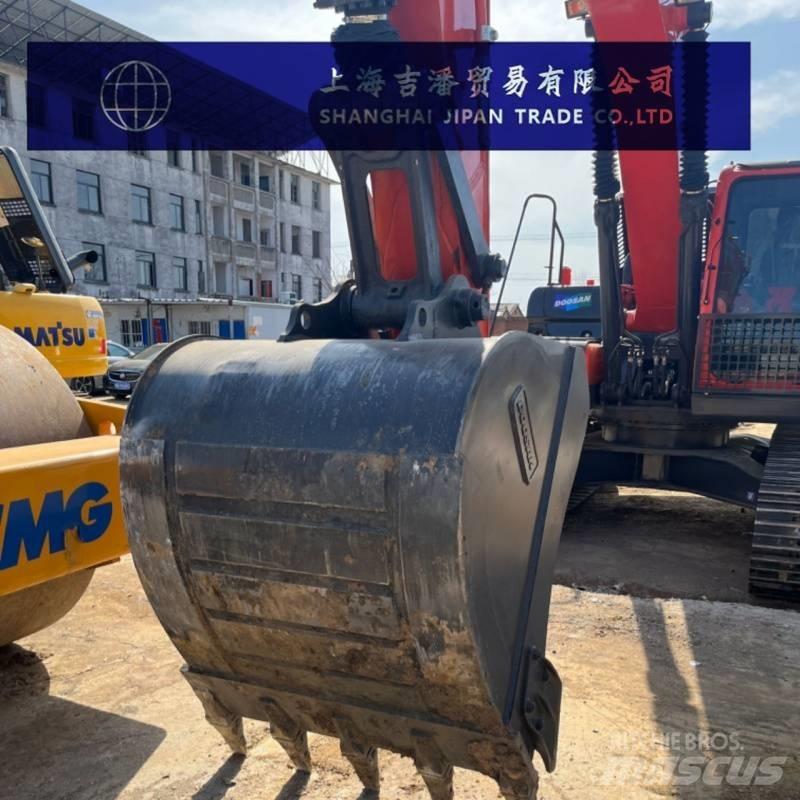

Standard digging bucket
Cable bucket
V ditch bucket
Kita informacija
Parameter configuration of Doosan DX225LC-9C excavator
Specification
Power Traditional Power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)22
The working weight of the entire machine (kg) is 21,800
Bucket capacity (m³) : 1.05 m³
Boom length (mm) : 5700
The length of the boom (mm) is 2900
Performance
Rotational speed (rpm) : 10.5
Walking speed (km/h)5.7/3.1
Ground specific pressure (Kpa)44
Bucket digging force (kN)152
The digging force of the boom (kN) is 108
Power system
Engine model: DL06
Rated power (kw/rpm) : 115 (154 HP) / 1,900
Number of cylinders (6
Cylinder diameter × stroke (mm) : 100 *125
The form of work is listed directly
Hydraulic system
The maximum flow rate of the main pump (l/min) is 2 X 212/min
Oil capacity
Fuel tank (L)400
Hydraulic System (L)195
Main body size
Total transportation length (mm) : 9,506
The total transportation width (mm) is 2,990
The total transportation height (mm) is 2,891
The total height of the cab (mm) is 832
Boarding width (mm) : 1,008
Total track length (mm) : 4,440
Track plate width (mm) : 600
Total width of the tracks (mm) : 2,990
Minimum ground clearance (mm)475
The ground clearance of the counterweight (mm) is 1,096
The minimum turning radius (mm) of the front working device is 562
Rear end turning radius (mm) : 2,794
Scope of work
Maximum excavation radius (mm) : 9,873
The maximum excavation radius (mm) of the shutdown face is 9,699
Maximum excavation depth (mm) : 6592
Maximum excavation height (mm) : 9,616
Maximum unloading height (mm) : 6,830
Maximum vertical excavation depth (mm) : 3,929
Maximum effective excavation depth (mm) : 6,411
