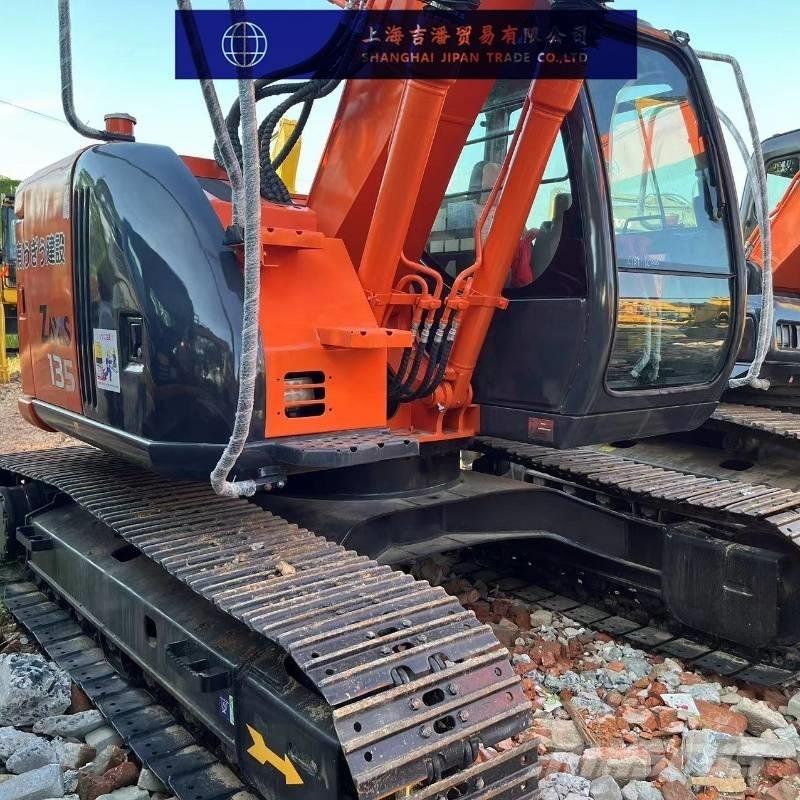

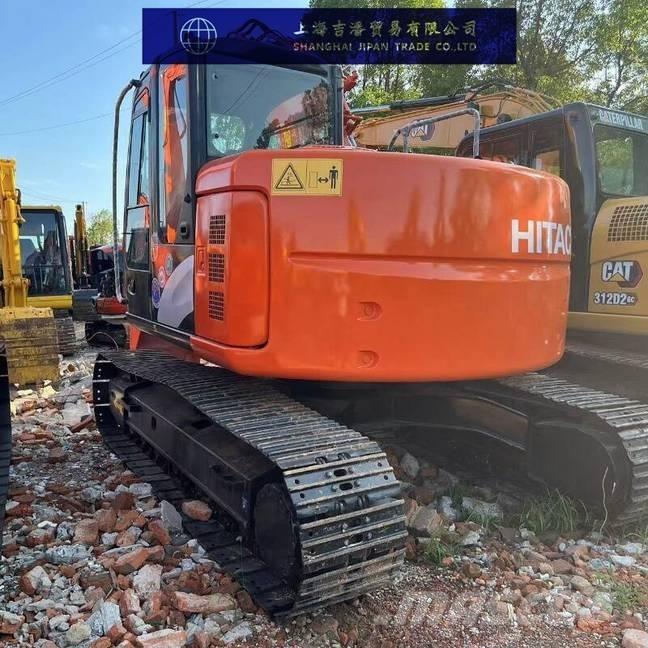

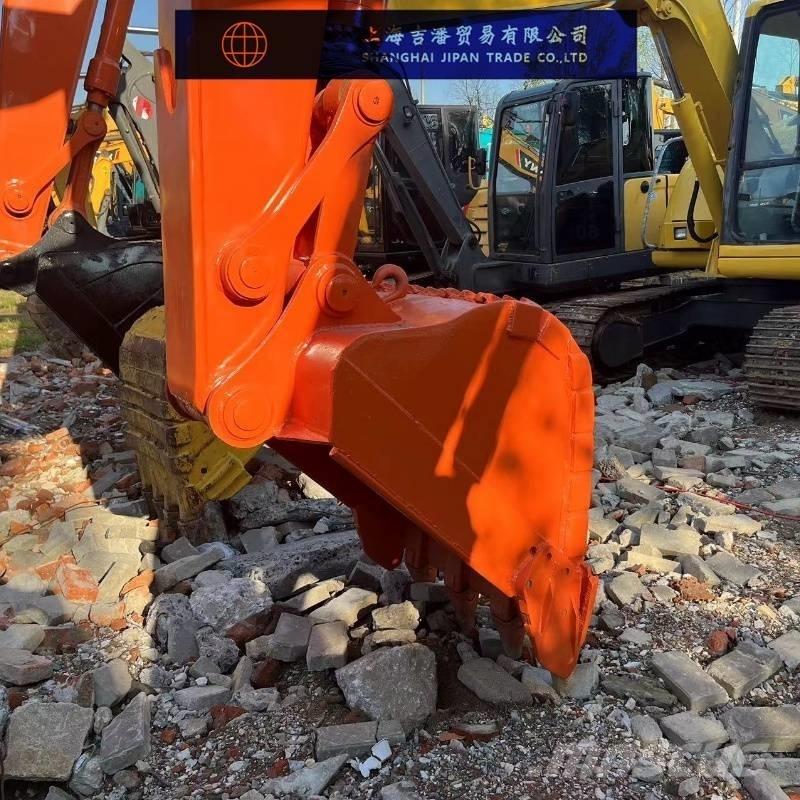

Hitachi ZX 135

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Hitachi ZX135US Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 13200 Bucket capacity (m³) 0.19-0.66 Boom Length (mm) 4.6 (H Type) Stick length (mm) 2.1/2.52/3.01 Origin: Japan Tonnage (tons) 13 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Grounding specific voltage (Kpa) 41 Rotational speed (rpm) 13.7 Travel speed (km/h) 3.4/5.5 Climbing ability (%) 70/35° Bucket digging force (kN) 99 Stick digging force (kN) 65 dynamical system Engine model: ISUZU CC-4BG1TC Rated power (kw/rpm) 66/2150 Displacement (L) 4.329 Number of cylinders (units) 4 Bore × stroke (mm) 105×125 Cooling method: Water cooling Direct injection of the working form Hydraulic system Main pump type variable piston pump ×2 Gear pump ×1 Main overflow set pressure (Mpa) 34.3 Traveling hydraulic motor type variable piston pump ×2 Rotary hydraulic motor type quantitative piston pump ×1 Working hydraulic oil circuit (Mpa) 34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing Hydraulic Circuit (Mpa) 32.3 Pilot oil circuit (MPa) 3.9 Boom cylinder - number × bore × stroke (mm) 105×70 Bucket cylinder - number × bore × stroke (mm) 115×80 Bucket cylinder - number × bore × stroke (mm) 100×70 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 200 Hydraulic Tank (L) 62 ( Engine oil change volume (L) 15.8 Coolant (L) 19 Body size Total length of transport (mm) 7290/7310 Total Transport Width (mm) 2490/2590/2690 Total height of transport (mm) 2740/2870 Cab total height (mm) 2740/2870 Counterweight ground clearance (mm) 890 Track grounding length (mm) 2880 Total track length (mm) 3580 Track shoe width (mm) 500/600/700 Total Track Width (mm) 2490/2590/2690 Track gauge (mm) 1990 Minimum ground clearance (mm) 440 Rear end slewing radius (mm) 2130 Scope of work Maximum digging radius (mm) 7930/8300/8760 The maximum excavation radius of the shutdown surface (mm) is 7790/8160/8640 Maximum digging depth (mm) 5120/5530/6020 Maximum digging height (mm) 8950/9220/9610 Maximum unloading height (mm) 6490/6760/7150 Maximum effective digging depth (mm) 4880/5320/5840 There is no bulldozer shovel for lifting or pushing depth (mm).
