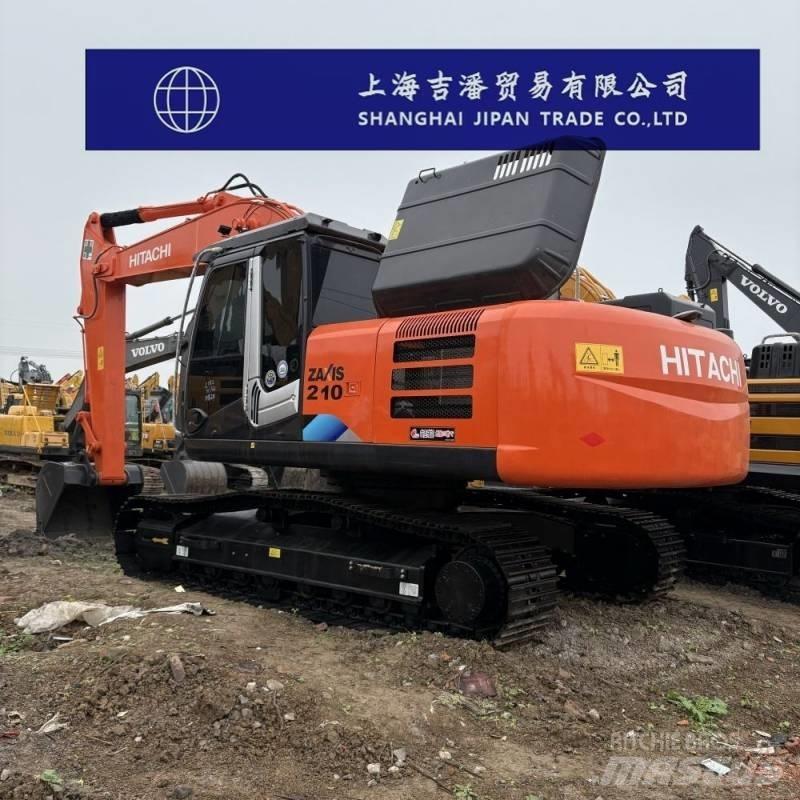

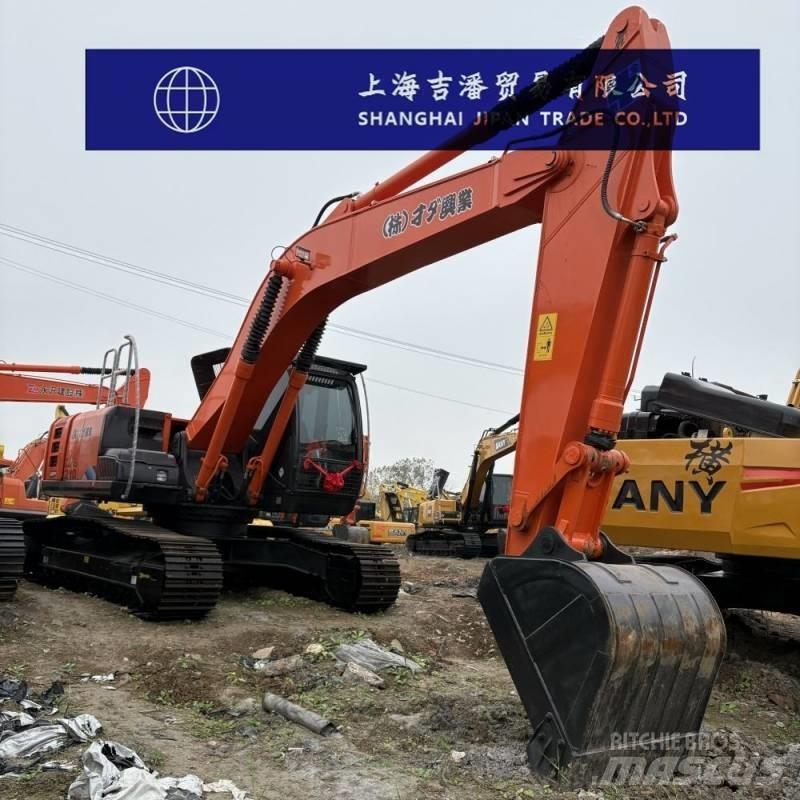

Hitachi ZX 210

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Hitachi ZX210 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)21 The working weight of the entire machine (kg) is 20,900-21,200 Bucket capacity (m³) : 1.0-1.2 The length of the boom (mm) is 2910 Performance Rotational speed (rpm) : 13.5 Walking speed (km/h)5.5/3.5 Climbing ability (%) : 70 Ground specific pressure (Kpa)43 Bucket digging force (kN)158 The digging force of the boom (kN) is 114 Power system Engine model: Isuzu GI-4HK1XKSA-02 Rated power (kw/rpm) : 113/2000 Maximum torque (N.m)638 Displacement (L)5.193 Number of cylinders (4) Cylinder diameter × stroke (mm) : 115×125 Working forms: 4-stroke, water-cooled, electronically controlled direct injection type, turbocharged, intercooled Hydraulic system The main pump types include 2 variable axial piston pumps and 1 gear pump The rotary hydraulic motor type is one swash plate type plunger motor The walking hydraulic motor type consists of two variable swash plate type piston motors The maximum flow rate of the main pump (l/min) is 2×212+30.2 Pilot oil circuit (MPa)3.9 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)32.3 Boom cylinders - number × cylinder diameter × stroke (mm)2×120×85 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1×135×95 Bucket cylinder - Number × cylinder diameter × stroke (mm)1×115×80 Oil capacity Fuel tank (L)400 Hydraulic oil tank (L)135 Engine oil change volume (L)23 Coolant (L)31 Main body size The total length of transportation (mm) is 9,660 The total transportation width (mm) is 2990 Total transportation height (mm) : 3010 The total height of the cab (mm) is 2950 Track grounding length (mm) : 3660 The total length of the track (mm) is 4470 Track plate width (mm) : 600 The total width of the tracks (mm) is 2990 Track gauge (mm) : 2390 Minimum ground clearance (mm) : 450 The ground clearance of the counterweight (mm) is 1030 The minimum turning radius (mm) of the front working device is 3180 The rear end turning radius (mm) is 2890 Scope of work Maximum excavation radius (mm) : 9920 The maximum excavation radius (mm) of the shutdown face is 9750 Maximum excavation depth (mm) : 6670 Maximum excavation height (mm) : 10040 Maximum unloading height (mm) : 7180 The maximum vertical excavation depth (mm) is 5990
