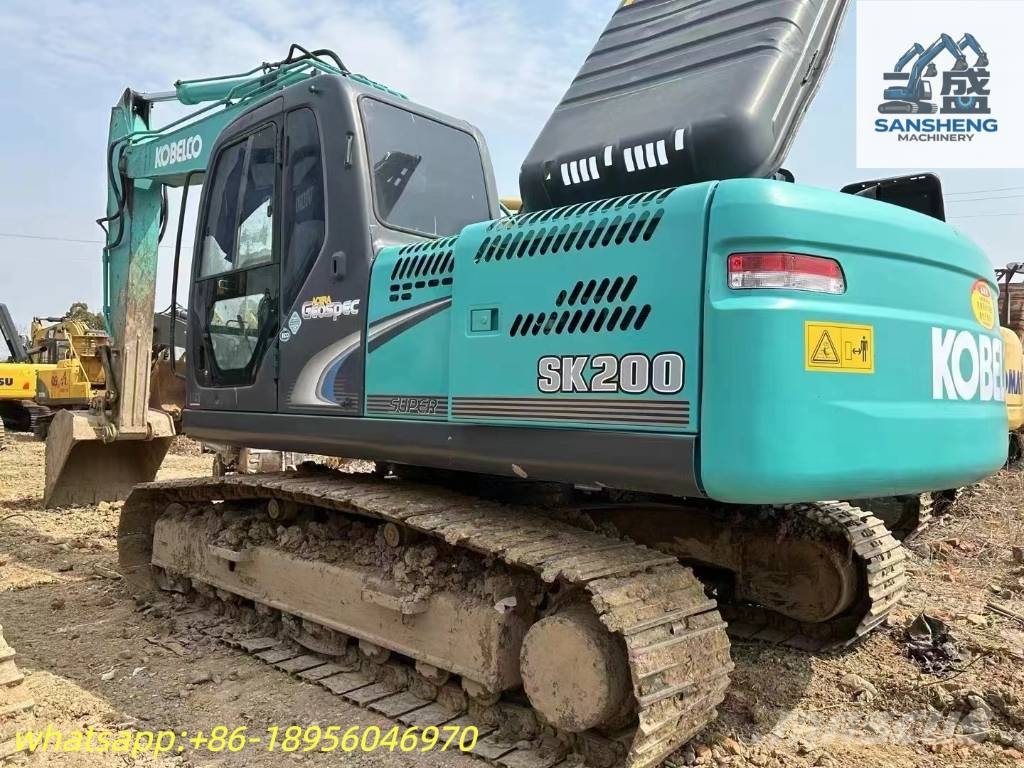

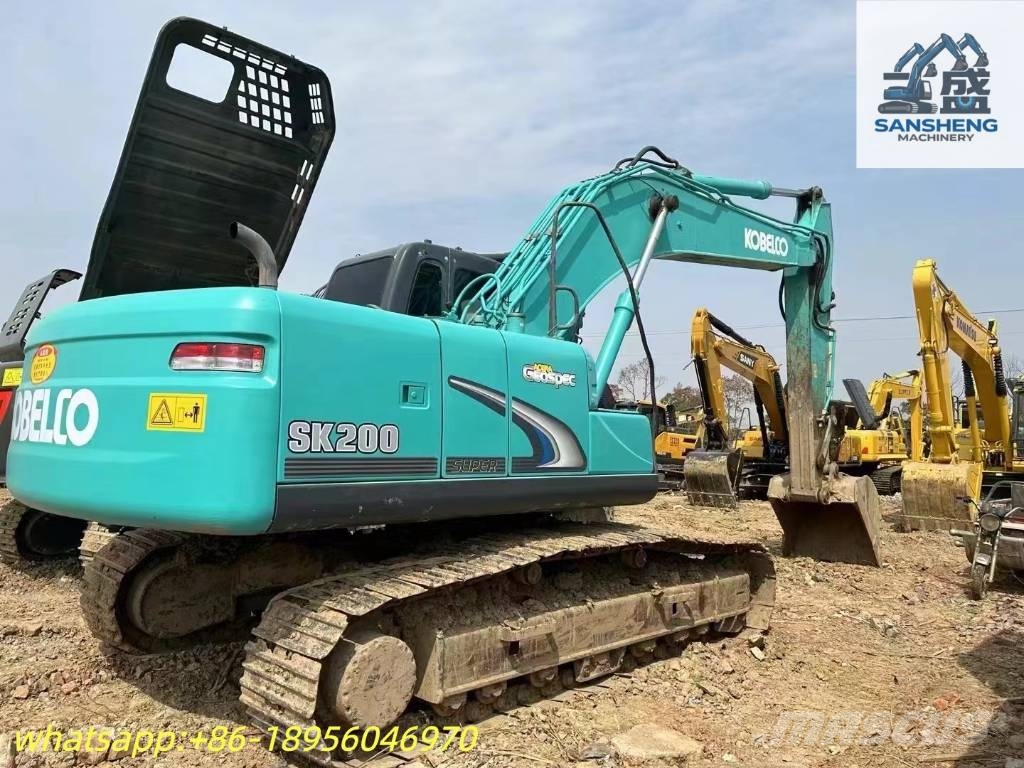

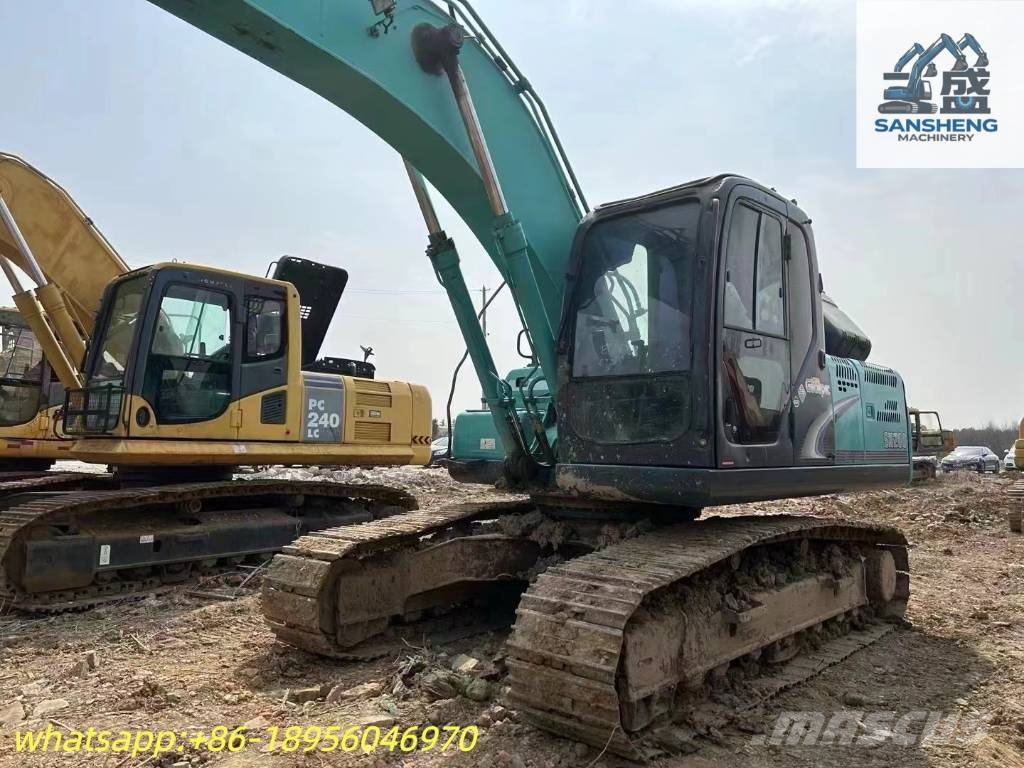

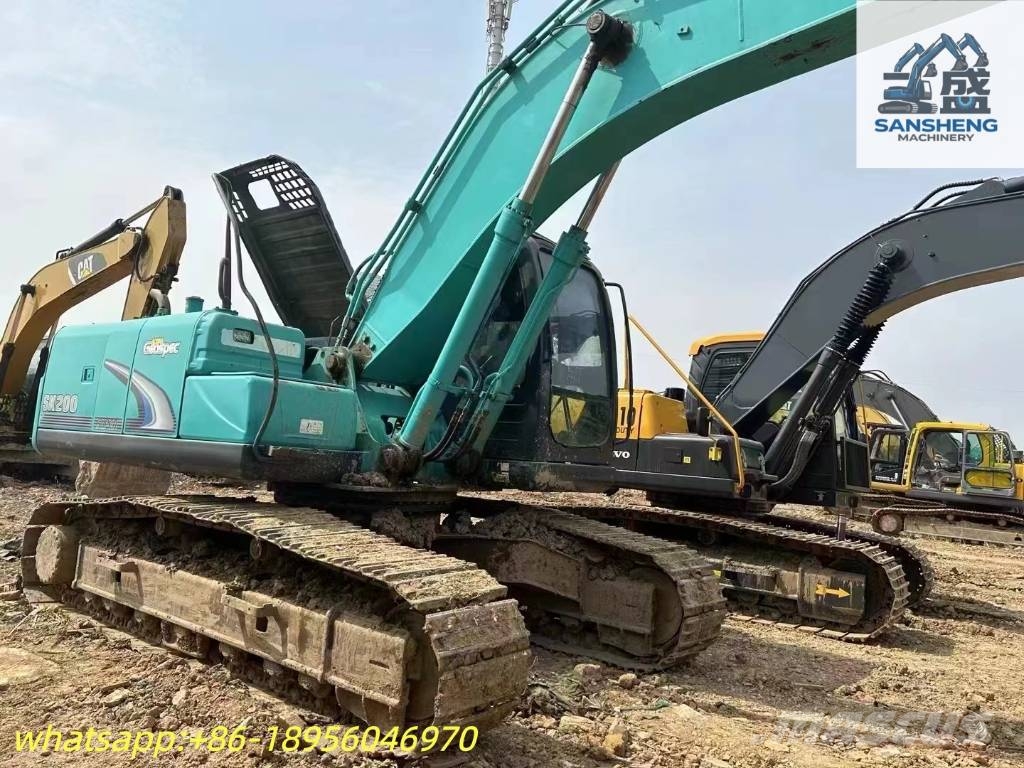

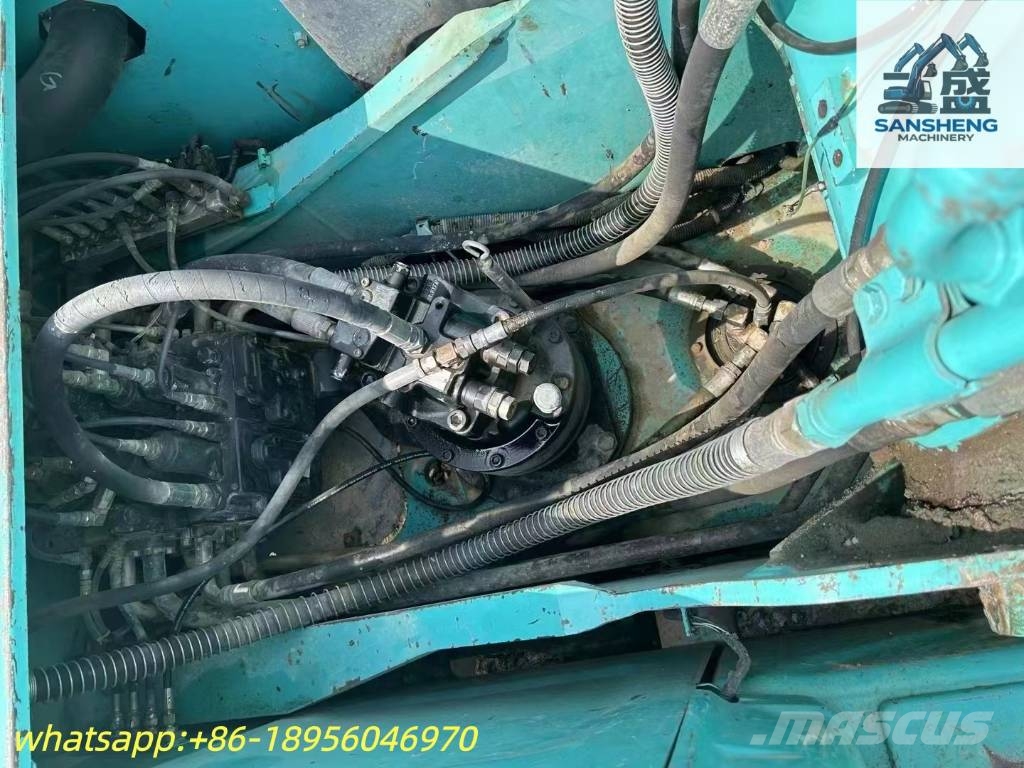

Kobelco SK 200

We supply a full range of excavator & machinery attachments: Rock Bucket, Skeleton Bucket, Loosening Bucket, Cleaning Bucket, Tilt Bucket, Ditch Bucket, Bucket Clamp,Clamshell Bucket, Rotary Screen,Crusher Bucket,Crushing & Screening Bucket, Rake, Ripper, Thumb Clip and Compaction Wheel Service Hours: 24/7 available Address: Hefei,Anhui, China Contact Person: Mr.Jay Lee WhatsApp:+86 18956046970 Mobile:+86 18956046970 WeChat: jayusedequipment Email: Packaging & Shipping Solutions We offer multiple shipping options to meet your demands: Flat Rack: Ideal for large construction machinery with no disassembly required. Container Shipment: Cost-effective and time- efficient Bulk Carrier:Perfect for oversized construction equipment. Ro-Ro Shipment: Fast delivery, applicable to all types

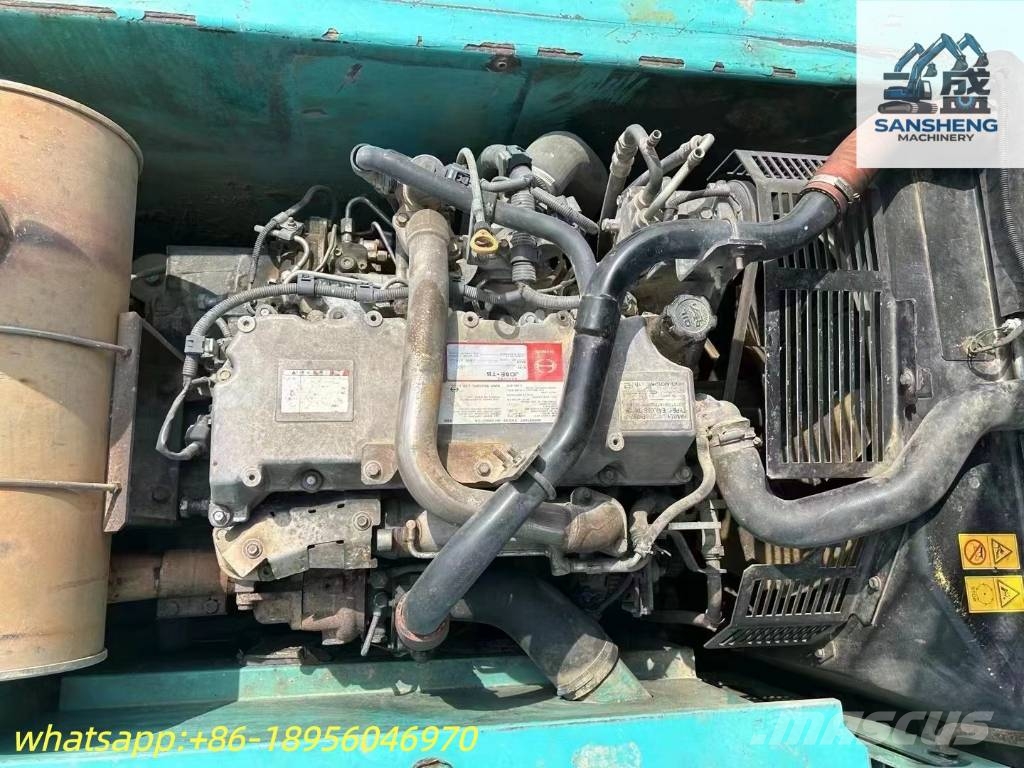

Bucket type: Backhoe  Tonnage (tons): 20  Total machine working weight (kg): 20600  Bucket capacity (m³): 0.8  Dipper stick length (mm): 2.94  Origin: Hangzhou  Performance  Rotation speed (rpm): 12.5  Travel speed (km/h): 3.6/6.0  Climbing ability (%): 70/35°  Ground pressure (Kpa): 46  Bucket digging force (kN): 143  Dipper stick digging force (kN): 102  Power system  Engine model: Hino J05E  Rated power (kw/rpm): 114/2000  Displacement (L): 5.123  Number of cylinders (units): 4  Cylinder diameter × stroke (mm): 112 × 130  Cooling method: Water cooling  Working mode: Direct injection, four-stroke, turbocharged, built-in intercooler  Hydraulic system  Main pump type: Dual-acting variable displacement axial piston pump × 2 + pilot gear pump × 1  Maximum main pump flow rate (l/min): 2 × 220  Working hydraulic oil circuit (Mpa): 34.3  Travel hydraulic circuit (Mpa): 34.3  Rotation hydraulic circuit (Mpa): 29  Control hydraulic circuit (Mpa): 5  Boom cylinder - number × cylinder diameter × stroke (mm): 120 × 1355  Dipper stick cylinder - number × cylinder diameter × stroke (mm): 135 × 1558  Bucket cylinder - number × cylinder diameter × stroke (mm): 120 × 1080  Whether the hydraulic crushing pipeline is standard is equipped  Oil capacity  Fuel tank (L): 370  Hydraulic oil tank (L): 146  Engine oil replacement volume (L): 22  Cooling liquid (L): 22  Main body dimensions  Total transportation length (mm): 9450  Total transportation width (mm): 2800  Total transportation height (mm): 2980  Track ground length (mm): 3370  Total track length (mm): 4170  Track plate width (mm): 600/700/800  Total track width (mm): 2800  Track gauge (mm): 2200  Minimum ground clearance (mm): 450  Counterweight ground clearance (mm): 1060  Minimum turning radius of the front working device (mm): 3540  Rear turning radius (mm): 2750  Working range  Maximum digging radius (mm): 9900  Maximum digging radius at the stop position (mm): 9730  Maximum digging depth (mm): 6700  Maximum digging height (mm): 9720  Maximum unloading height (mm): 6910  Maximum vertical digging depth (mm): 6100  Maximum effective digging depth (mm): 6520
