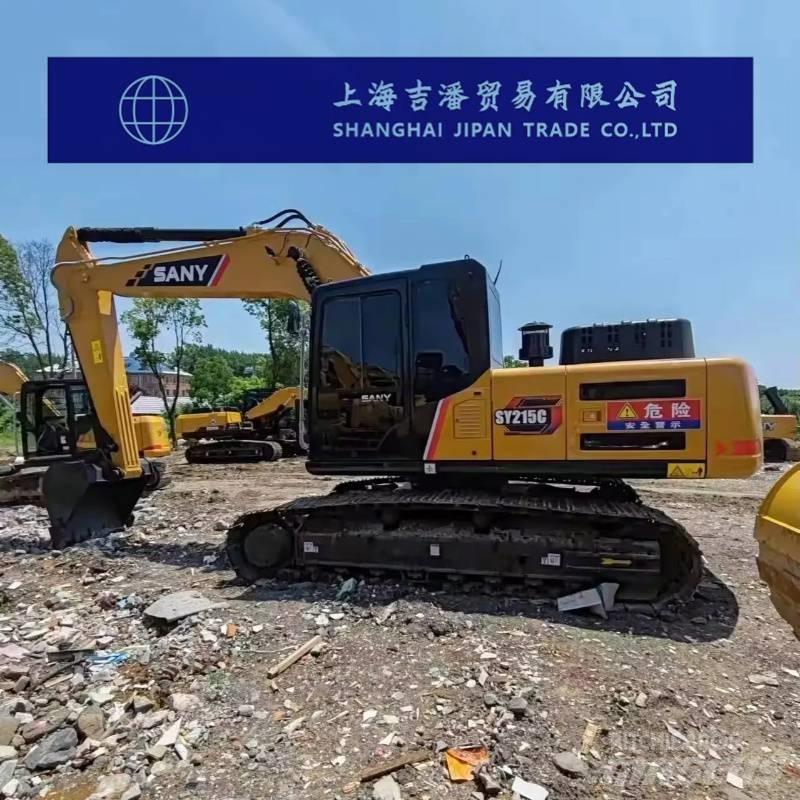

Sany SY 215

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

三一重工SY215挖掘机 参数配置 规格 动力传统动力 厂商国产 铲斗反铲 吨位(吨)21 整机工作重量(kg)21900 铲斗容量(m³)1.1（0.8~1.2） 性能 回转速度(rpm)11 行走速度(km/h)5.4/3.3 爬坡能力(%)70%（35°） 接地比压(Kpa)47.4 铲斗挖掘力(kN)138 斗杆挖掘力(kN)103 动力系统 发动机型号三菱4M50 额定功率(kw/rpm)118/2000 最大扭矩(N.m)580/1600 排量(L)4.9 气缸数(个)4 冷却方式水冷 油类容量 燃油箱(L)390 液压油箱(L)239 发动机油更换量(L)22 主体尺寸 运输总长度(mm)9680 运输总宽度(mm)2980 运输总高度(mm)3440 驾驶室全高(mm)3075 上车宽度(mm)2875 履带接地长度(mm)3445 履带总长度(mm)4250 履带板宽度(mm)600 履带轨距(mm)2380 最小离地间隙(mm )440 前段工作装置最小回转半径(mm)3730 后端回转半径(mm )2900 最小回转半径时的最大高度(mm)7680 托链轮数（单侧）(个)2 履带板数量（单侧）(个)47 支重轮数（单侧）(个)8 作业范围 最大挖掘半径(mm)10280 最大挖掘深度(mm)6600 最大挖掘高度(mm)9600 最大卸载高度(mm)6730
