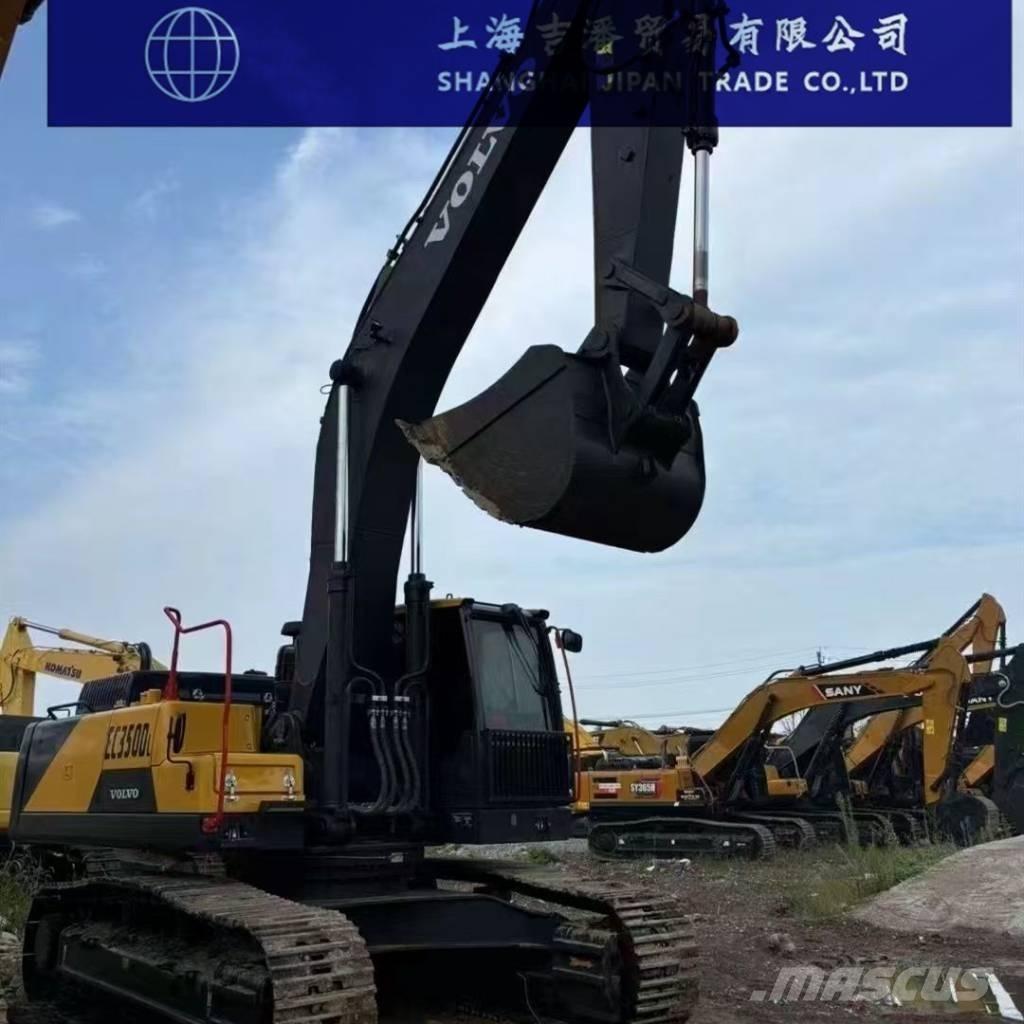

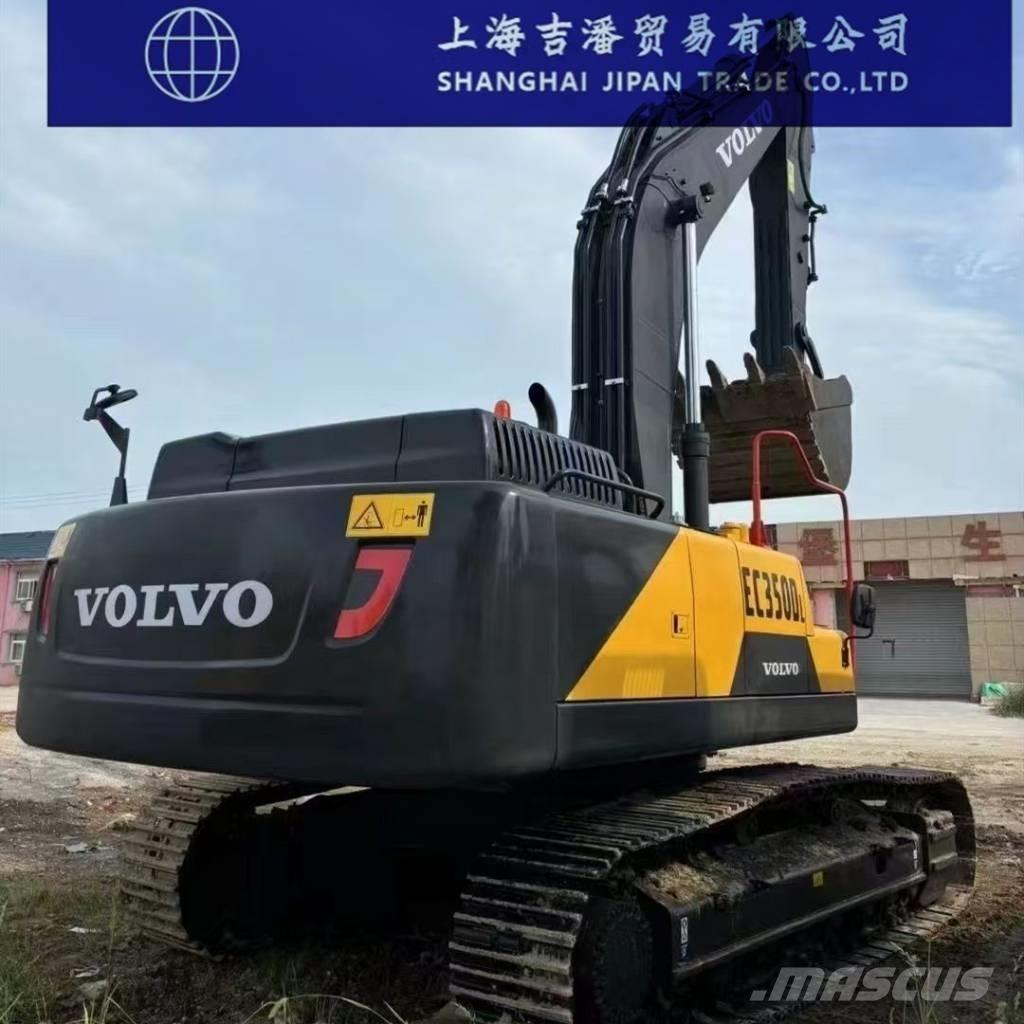

Volvo EC 350

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Volvo EC350D Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 35 The working weight of the whole machine (kg) is 34300-38700 Bucket capacity (m³) 1.0-2.53 Country of origin: South Korea performance Rotation speed (rpm) 10.3 Slewing torque (Nm) 126 Travel speed (km/h) 3.3/5.1 Climbing ability (%) 35° Maximum traction (kN) 261 dynamical system Engine model Volvo D8K Rated power (kw/rpm) 197/1800 Maximum torque (N.m) 1340 Displacement (L) 7.8 Bore × stroke (mm) 110×138 Hydraulic system The maximum flow rate of the main pump (l/min) is 2×288 Working hydraulic oil circuit (Mpa) 33.3/36.3 Traveling Hydraulic Circuit (Mpa) 33.3 Slewing hydraulic circuit (Mpa) 27.9 Control Hydraulic Circuit (Mpa) 3.9 Boom cylinder - number × bore × stroke (mm) 2×150×1530 Bucket rod cylinder - number × bore × stroke (mm) 1×170×1700 Oil capacity Fuel tank (L) 580 Hydraulic Tank (L) 215 Hydraulic System (L) 465 Engine oil change volume (L) 32 Coolant (L) 41 Body size Total length of transport (mm) 11190 Total width of transport (mm) 3190 Total height of transport (mm) 3230 Cab total height (mm) 3030 Mount width (mm) 2990 Track grounding length (mm) 3700 Total track length (mm) 4630 Track shoe width (mm) 600 Track gauge (mm) 2590 Minimum ground clearance (mm) 500 Counterweight ground clearance (mm) 1180 Rear end slewing radius (mm) 4120 Scope of work Maximum digging radius (mm) 11110 The maximum excavation radius of the stopping surface (mm) is 10900 Maximum digging depth (mm) 7480 Maximum digging height (mm) 10330 Maximum unloading height (mm) 7250 Maximum vertical digging depth (mm) 5890
