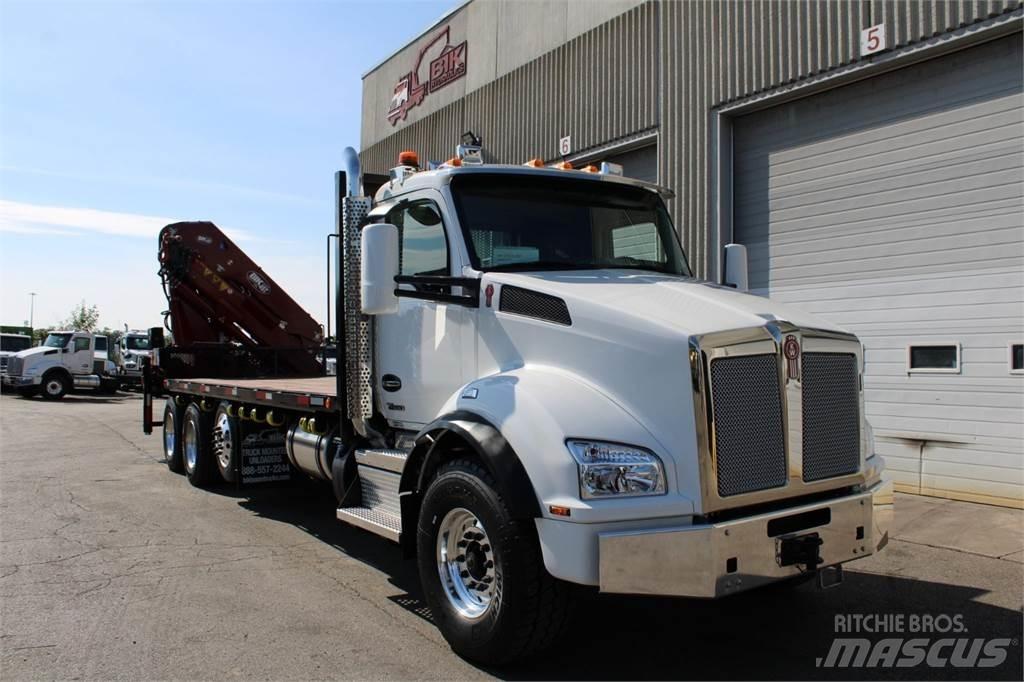

BIK HL 45T

Kranas, Šoninės durys, Stereo garsas, Kreiserinio greičio valdymas, Oro kondicionierius, Oro pagalvės, Civilinės bangos (CB) radijas, ABS (Stabdžių antiblokavimo sistema)

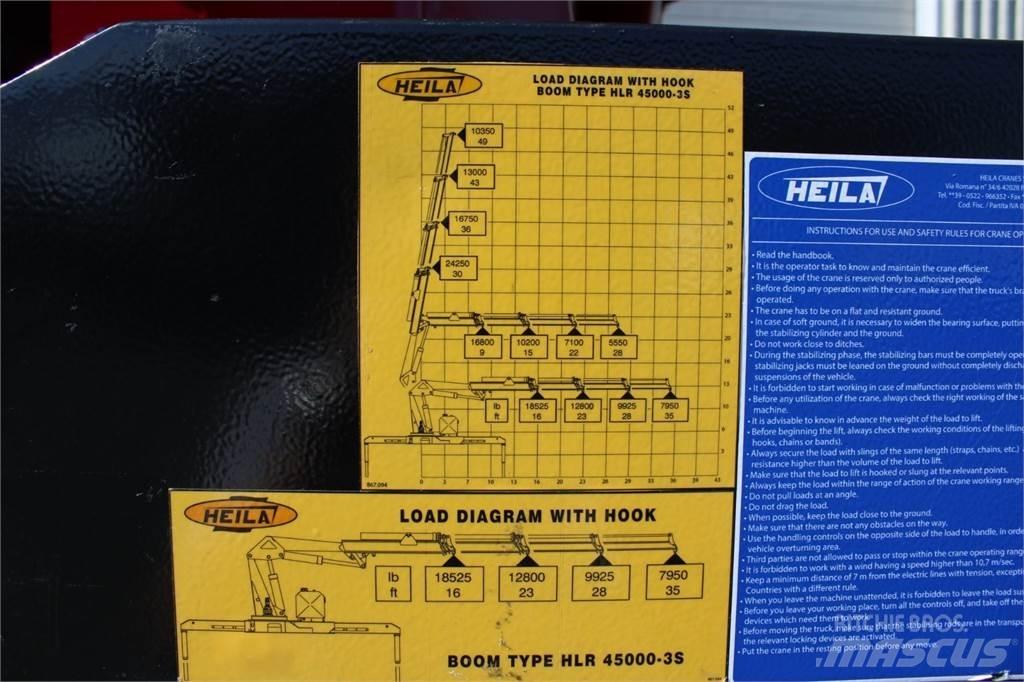

Boom Details New  – BIK “Heavy Lift” Series HL45T – by Heila :   with hyd out & down stabilizers,  3-hydraulic extensions to 36’ of side reach . Boom Capacities: 34,000 lb ... 10’ 18,500 lb ... 17’ 12,450 lb ... 23’ 10,000 lb ... 30’ 8,000 lb ... 36’ Installed END OF FRAME on shear-plated Sub Frame, prepped, primed and painted. New Air Operated PTO, Hydraulic Pump, Supply and Return Lines,  Hydraulic tank mounted under deck w/ shut-off valve, 12V connections to radio remote control. DANFOSS  Proportional Valve Controls – single sided operator control station w/ fully proportional operator control SCANRECO Radio Remote Control  – electronically actuated controller, proportional precision and ultimate operator feel and control, Radio Remote includes: 5-micro mode speed reducing settings , emergency stop, 2-batteries with in-cab charger,  50’ back-up cord Hydraulic Overload Load LImiting Device-  Greatly increases life span of crane and provides added safety. PLANETARY PEDESTAL ROTATION  – Superior Control & Turning Torque to 10 deg angle – Best in its class, reduced maintenance 450 degrees rotation , Hydraulic OUT and DOWN  2-sided, independently controlled stabilizers beneath pedestal. Ground Level  main Danfoss valve bank , easy access for manual controls at ground leveL Deck Details New  –  21’ 6” x 102” Deck with Hardwood Deck Surface Installed on Truck,  with 54” of main sill overhang for Sub-Frame of Knuckle Boom Hardwood deck surface 66” Headboard Reverse Rail sliding track on passenger side 8 winches and straps (30’) with required Conspicuity and Reflectors All steel painted Gloss Black To include removable tailboard height to be determined by rotation of crane Truck Details New – Kenworth T880  4- axle Truck – 79,000 lb GVWR PACCAR  505 HP  / 1,850 ft/lb torque Eaton  Ultrashift 18 spd AutoTrans 20,000 LB fronts with 425 / 65R22.5 tires 13,000 lb self steer lift axle i nstalled ahead of t/a w/low profile 22.5” tires on alum rims 46,000  LB Rears on air ride Double Frame, Polished ALCOA Alum Wheels  front and rear Chrome single polished Exhaust Chromed Grille & Bumper Single 100 gallon aluminum fuel tanks Options including:  Dual roof mounted strobe lights,  A/C, Tilt/Telescopic steering, AM/FM/CD player , Jake Brake,  air driver’s seat,  fixed  passenger seat, cruise, heated mirrors, painted sun visor, All-way inter-axle and diff lock-ups, Cab Painted White,  Air ride cab, full differential locks,  trailer air tow package, etc… Also Included Are: (2) pcs – Aluminum stabilizer pads with holders at rear Program radio remote control for engine stop/start and truck shut off 1” drawplate installed at rear w/Heavy duty pintle hook 1- Alum box installed under deck 13,000 lb lift axle (as described above)
